8080 Aluminium Extrusion Base Plate

Dispatch Time : 4 to 5 working days from the date of payment

Delivery Time : 3 to 4 working days from the date of dispatch

It is always our endeavor to ship on time, but some times due to unforeseeable circumstances, shipping might get delayed. Under such situations we will keep you updated and we request you to please bear with us.

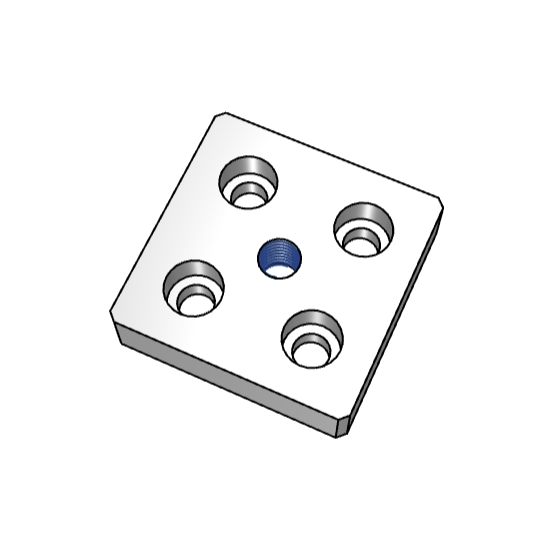

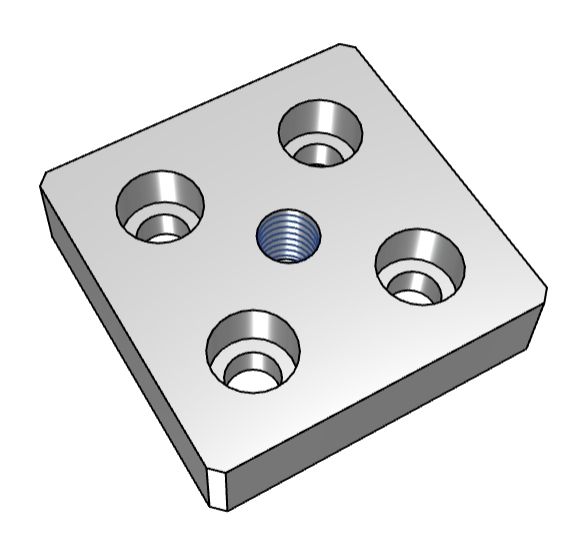

8080 Aluminium Extrusion Base Plate

Heavy-duty base plate designed for 80×80mm T-slot aluminium extrusions. Ideal for securely mounting machine frames, workstations, enclosures, automation equipment, and DIY CNC projects to floors, tables, or support structures.

Product Description

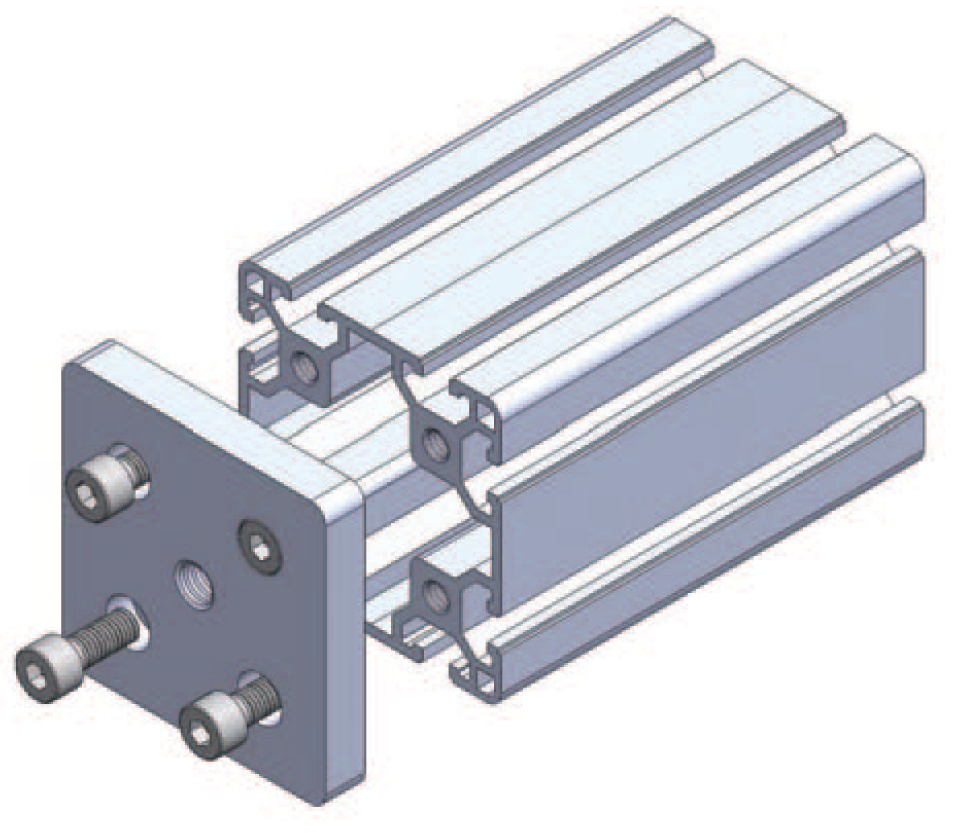

The 8080 Aluminium Extrusion Base Plate provides a strong and reliable mounting solution for 80×80mm aluminium profiles. Manufactured from durable metal and precision-machined for accurate fitment, it helps improve frame stability while allowing easy attachment of leveling feet, casters, or floor anchors.

Suitable for industrial automation systems, machine frames, 3D printers, workbenches, test equipment, and custom aluminium extrusion structures.

Key Features

• Compatible with 80×80mm aluminium T-slot extrusions
• Robust construction for enhanced frame stability
• Precision-machined mounting holes
• Suitable for floor mounting, table mounting, or frame reinforcement
• Easy installation using standard extrusion fasteners
• Ideal for industrial and DIY applications

Applications

• Industrial machine frames
• Aluminium profile workstations
• 3D printer frames
• CNC machines
• Automation equipment
• Enclosures and guarding systems
• Robotics projects

Specifications

Parameter	Value
Product Type	Base Plate
Profile Compatibility	8080 Aluminium Extrusion
Material	Aluminum
Surface Treatment	None
Mounting Type	Bolt-On
Application	Frame Mounting & Support

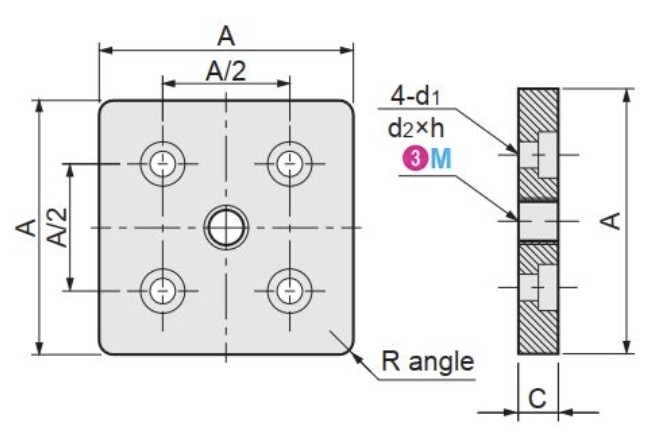

Dimension

M (thread) = M12 , A = 80, B = 80, C =12.1, d1 = 9, d2 = 14, h = 8.3

Unit = millimeter

3D File Download

Click on the image below to download 3d file in step format
