Axiom AR8 Pro+ CNC Router
SKU 00652
₹1,200,000.00
Steel Stand
4th Axis (Rotary Axis)
In stock
1
Save this product for later
Axiom AR8 Pro+ CNC Router
Product Details
Brand: Axiom CNC
Dispatch Time: 15-20 days
Delivery Time: Dust Shoe - One, Hold Down Clamps - Two Pcs
CONTACT US FOR QUOTE

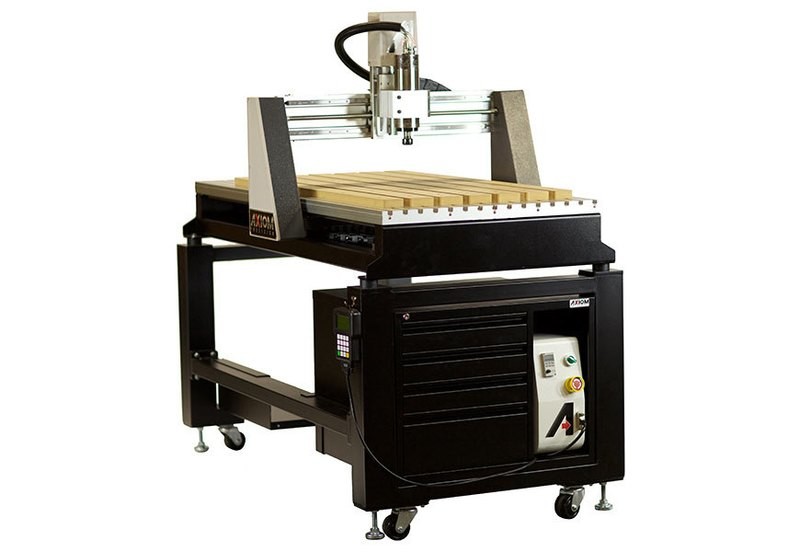

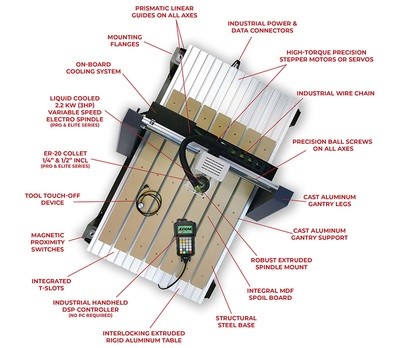

Axiom AR8 Pro+ CNC Router (2 Ft x 4 Ft Work Area)
Ideal for Advanced Hobbyists & DIYers, Colleges and Maker Spaces, Small Businesses looking to add precision to their work.
Axiom CNC offers a wide range of machines to address nearly any CNC application. Each machine has been thoughtfully designed, rigorously tested, and offers a full range of accessories to ensure that you have everything you need to get up and running.
- Axiom CNC Industrial 4-axis UC CNC Controller working on UC CNC Software.

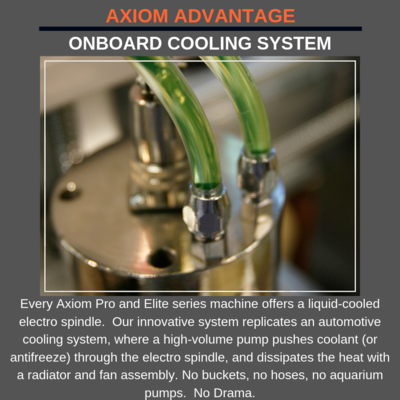

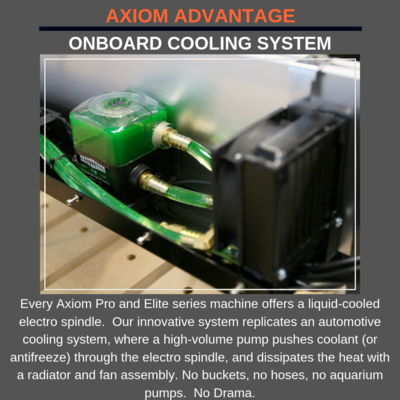

- 3HP Electro Spindle with Integrated Liquid Cooling System

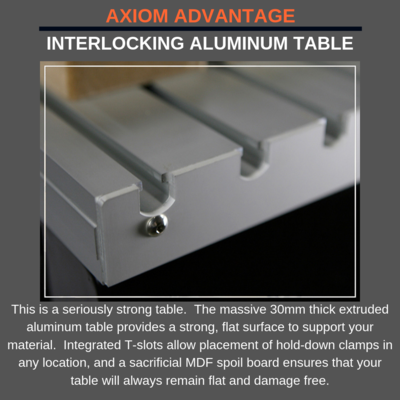

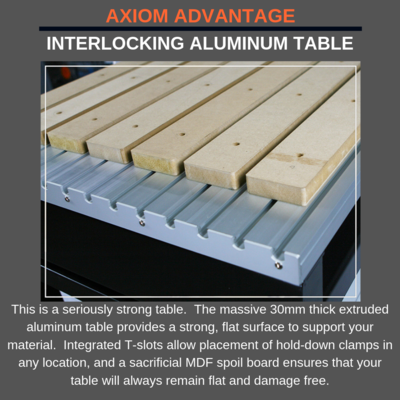

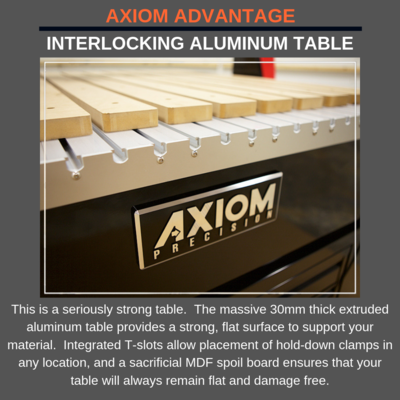

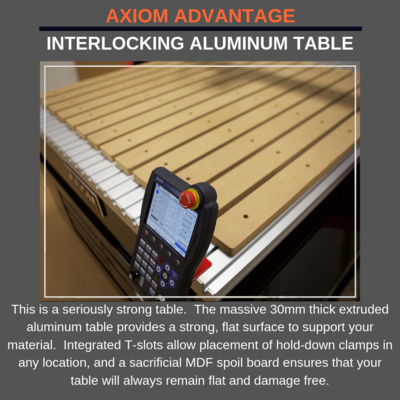

- Interlocking Aluminium Table

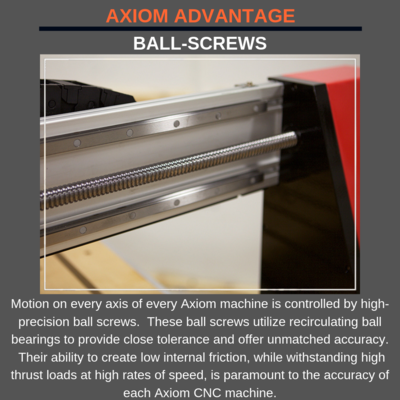

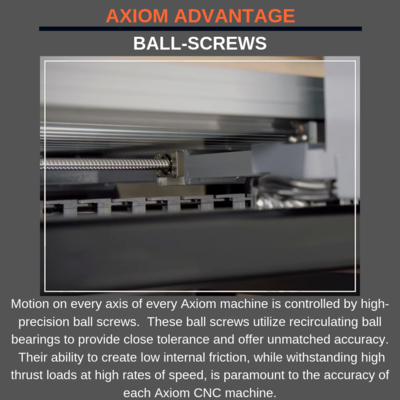

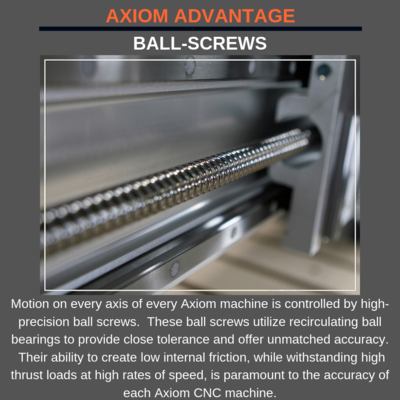

- Precision Ball Screws & Prismatic Guides on all Axes

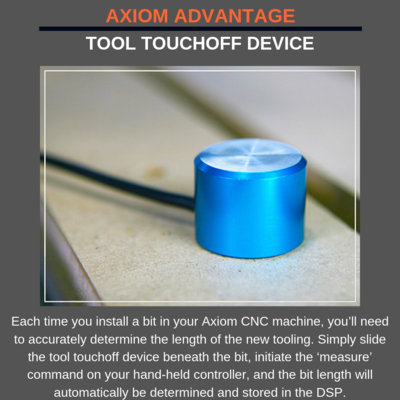

- Auto Tool Touch-off Plate
- CLICK HERE TO CHECKOUT THE 3D VIEW OF THE MACHINES

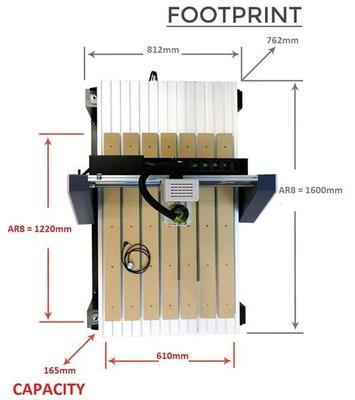

X axis travel | 24" (610mm) |
Y axis travel | AR8 = 48" (1220mm) |
Z axis travel | 6" (153mm) |
C axis travel | 360 deg ( Fourth Axis is Optional, Machine is 4th Axis Ready) |
Table work area | AR8 = 28.4" x 63" |
Spindle Configuration | ER 20 |
Included Collets | 1/4" & 1/2" |
Electro Spindle (Optional) | 2.2KW (7.5A) |
Spindle speed | 0~24000 RPM |
Rapid feed rate | 5000mm/min (83mm/sec) in XY 2000mm/min (33mm/sec) in Z |
Software Compatibility | Ethernet controller running UCCNC software |
Precision Linear Guideway |
On All Axes |
Precision Ball Screw | 16mm Ball Screw on All Axes |
Positional Accuracy | +/- .00393" (0.10mm) |
Power requirements | 220 V,50~60 Hz, 10A, 1-Phase |
Working Table | High rigidity Aluminum Extrusion |
Gantry bridge | High rigidity Aluminum Extrusion |

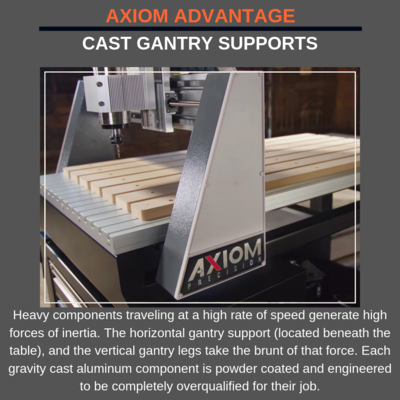

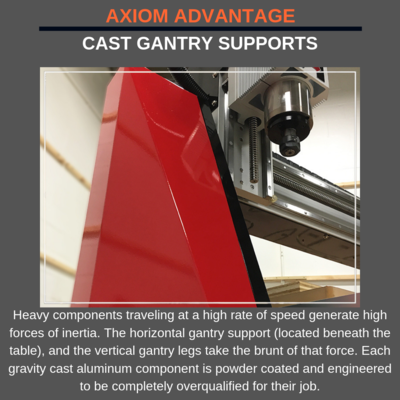

Gantry Supports | Aluminum alloy gravity cast |
Gantry Clearance |
6.5" (165.1mm) - (Bottom of Collet to Aluminum T Slot Table) |

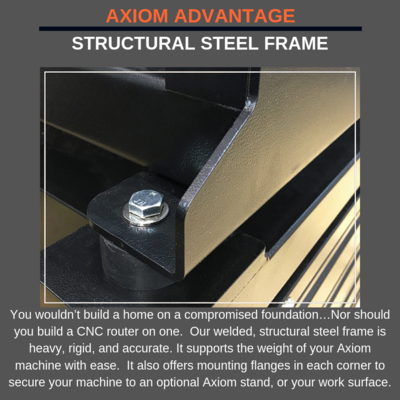

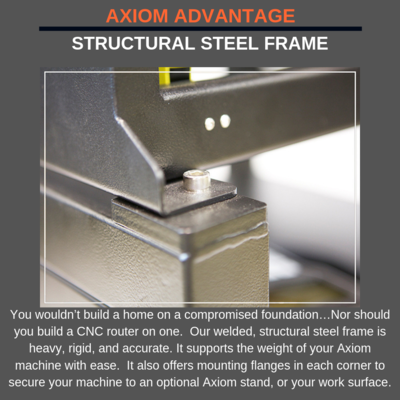

Machine Base (Optional) | All Welded Steel |
Overall Foot Print | AR8 = 1600L x 950W x 770H (mm) |
Shipping Dimensions |
AR8 = 1651 x 990 x 840 (mm) (Crated Shipping) |
Shipping Weight | AR8 = 150 kg |
Tool Touch-Off Device | Included |

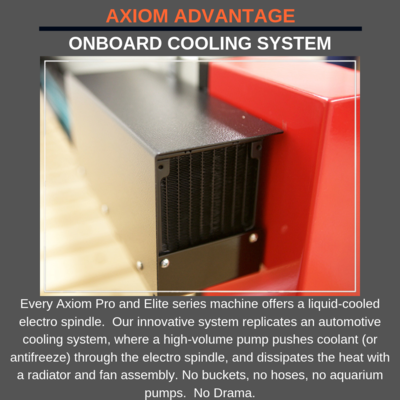

On board Cooling System | Included ( If Spindle Option Selected) |

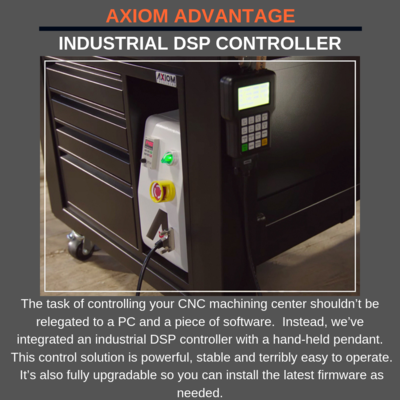

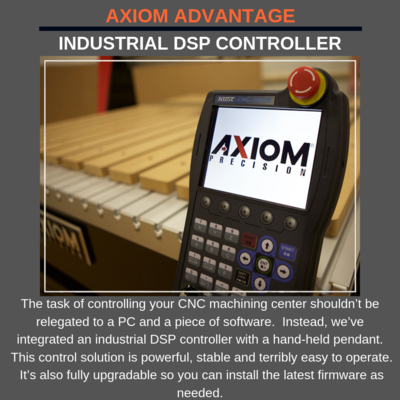

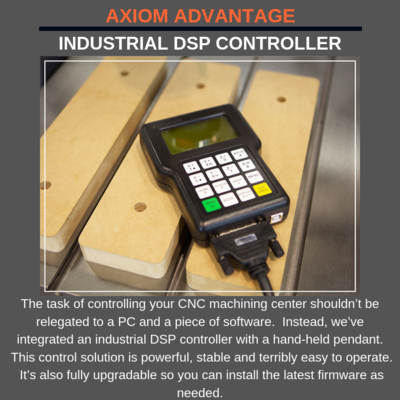

Controller | • Richauto B18 DSP 4-Axis Controller • UC CNC motion control system • USB port for easy file transfer. |
Language | Support English / Chinese |
Product Manual | View Product Manual |
Warranty - One yr on components for any manufacturing defects
Life time tech support available through mail, phone.
Axiom Support Forum - Click Here
Know More at - https://www.axiomprecision.com/
Please note - FREE SHIPPING IS APPLICABLE ONLY WITHIN INDIA
