Ball Screw Linear Actuator - 16mm dia - 10mm (Pitch) - 3DP120K

Dispatch Time : 15 to 20 working days after order payment

Delivery Time : 4 to 5 working days from the date of dispatch

Delivery Method : All parcels will shipped by road only, through our courier partners Delhivery/Bluedart/Safexpress as per the service availability in the destination

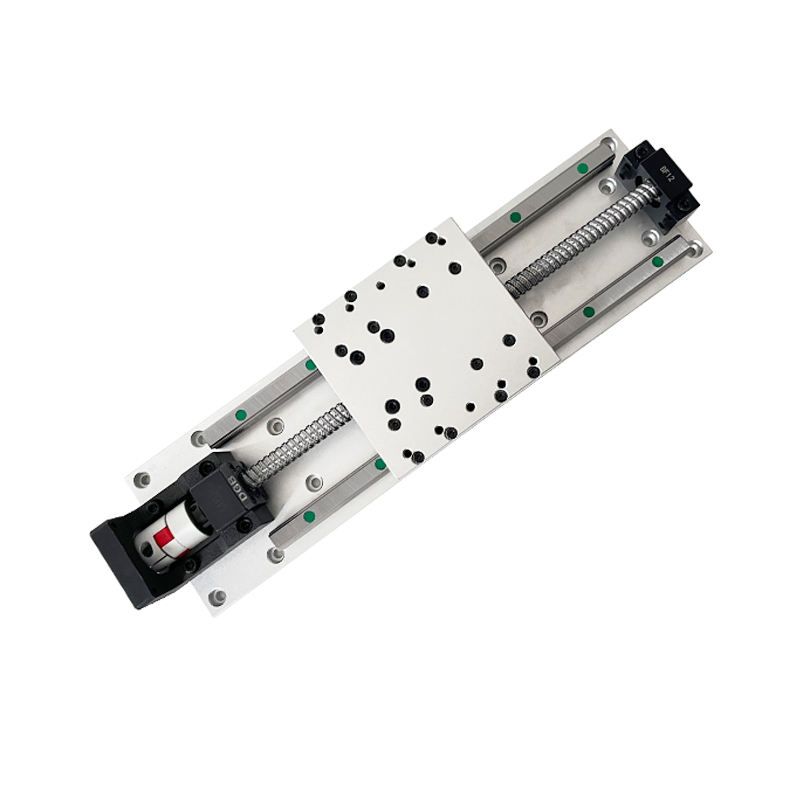

BallScrew Linear Actuator - 16mm dia - 10mm pitch - 3DP120K

Precise | Affordable | Modular

Made and Supported in India

Description

Upgrade your automation systems with our precision ballscrew linear actuator, engineered for performance and reliability. Ideal for applications requiring precise linear motion, our actuator combines robust construction with smooth operation to deliver superior results in both industrial and commercial settings.

Applications

• CNC Machinery: Enhances precision in milling, drilling, and other machining processes.
• Automation Systems: Ideal for robotics, conveyor systems, and other automated applications.
• Medical Devices: Provides reliable and accurate motion control in medical equipment.
• Laboratory Equipment: Ensures precise movements in scientific and research apparatus.
• Camera Sliders

Key Features

• Precision Ball Screw
  • Provides accurate and repeatable linear motion with minimal backlash, ensuring precise positioning and control.
• Durable Construction
  • Made from high-quality materials, including hardened steel and aluminum, for long-lasting performance even in demanding environments
• Smooth Operation
  • Designed with high-efficiency bearings and lubricated ballscrew for smooth, quiet, and low-maintenance operation.
• Versatile Mounting Options
  • Features a variety of mounting configurations to fit different application needs and machine designs.
• Customizable Stroke Length
  • Available in multiple stroke lengths to accommodate a range of applications and requirements.
• Load Capacity
  • Capable of handling heavy loads while maintaining accuracy and performance

Technical Specifications

• Ballscrew Used Diameter : 16mm
• Ballscrew Accuracy Class : C7
• Ballscrew Pitch(Lead) : 10mm
• Linear Guiderail Used : HGR15
• Linear Guiderail Blocks : HGH15
• Repeatable Positioning Accuracy : Plus Minus 0.04mm
• Max Speed for 10mm pitch : 500mm per sec
• Max Weight Capacity As Per Table Mentioned Below

Weight of Nema 23 Stepper Motor Used Apprx 1.5 kg

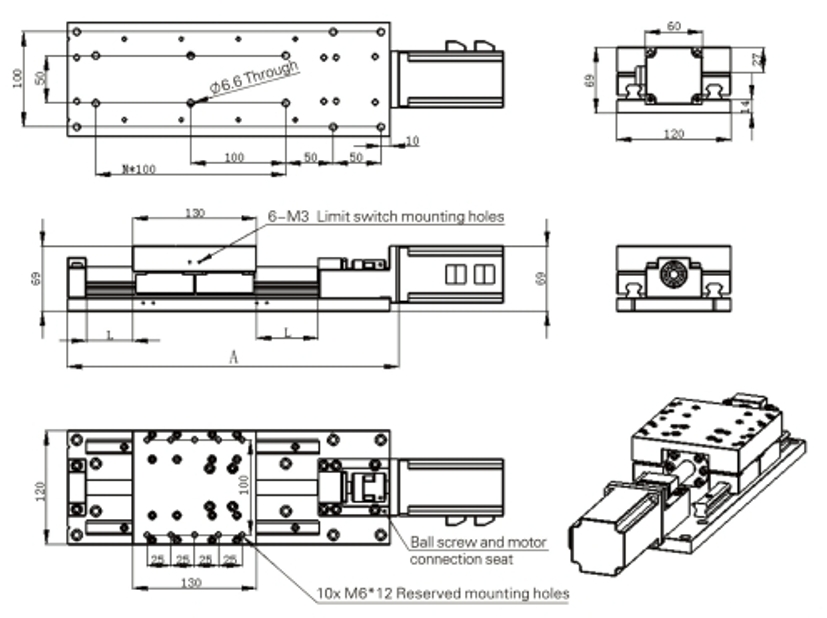

Technical Drawing

3D File Download

Click here to download the 3d file of this actuator in step format. Use this 3d file directly in your CAD models.

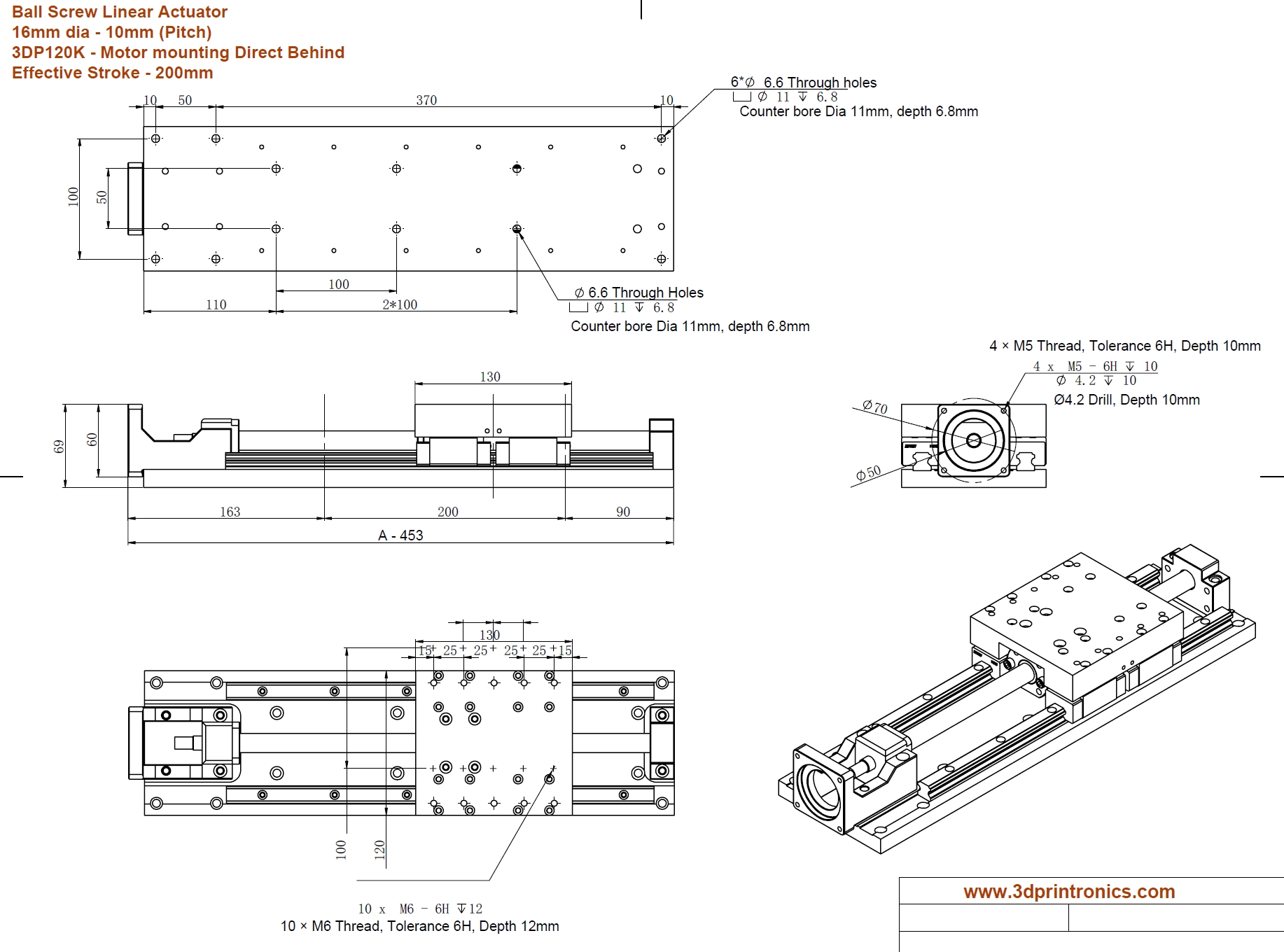

Effective Stroke - 200mm

Effective Stroke - 500mm

Effective Stroke - 1000mm

Optional Parts Which Can Be Purchased With This Actuator

• Nema 23 Stepper Motor - Stepper motor rotates the ballscrew to create linear motion. We offer LeadShine Nema 23 Stepper Motor with 23Kg torque. Click here to know more details about this motor.

• Stepper Driver DM542E - It is required for operating the stepper motor. A stepper motor needs a stepper driver for running it. We offer DM54E stepper driver from Leadshine. Click here to know more about it. If you use our Nighthawk CNC Controller then you don't need to buy these drivers. There Drivers are optional and depends upon your application and microcontroller which you are using. These Drivers are optional and depends upon your application and microcontroller which you are using. If you are using our Nighthawk CNC Controller then you don't need to buy these drivers as it has in built drivers.

• Power Supply - A power supply is required for providing DC current to the Motherboard + stepper driver + stepper motor. We offer Meanwell LRS 350-24 power supply. Which is a 24VDC, 350 watts and 14 amps psu. Click here to know more about it.

• Nighthawk CNC Controller™ V2.2 - It is a plug & play motherboard/controller for 3 axis motion syste. It can run 4 stepper motors (X,Y & Z). No external drivers are required as it has inbuilt drivers. Just connect a power supply and stepper motors to it and start running your motors with CNC3D Commander - Control Software software. You will need 24 V power supply as shown above to operate this controller.

• Cable For Motor - Use this high quality, 4 core, shielded cable for extending stepper motor cables. These are shielded cables hence electromagnetic interference is minimal.

• Extension Connector Set - Use these connectors with stepper motors, servo motors etc along with shielded cables.
