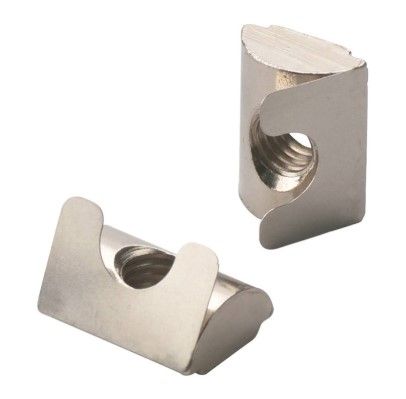

Leaf Spring T Nut for 45 Series Aluminium Extrusions

Name: Leaf Spring T Nut for 45 Series Aluminium Extrusions
Brand: 3DPrintronics
SKU: TNLS45
Price: 28.0 INR
Availability: InStock

SKU TNLS45-M4

₹28.00

M4 to M8

Bulk pricing available for quantities of 50 units or more

For 4545, 4590 T Slots

Thread

In stock

Quantity:

Minimum purchase quantity: 10 items

Buy more, save more

Quantity	Price per item	Discount
50 items	₹27.00	4% off
100 items	₹26.00	7% off

Save this product for later

Leaf Spring T Nut for 45 Series Aluminium Extrusions

Product Details

Brand: 3DPrintronics

Dispatch Time: 2 to 3 working days

Courier Used: Bluedart/Smartr/Delhivery/DTDC

GST: 18% on checkout

Delivery Time: 3 to 4 working days after dispatch

Type of T Nut: Leaf Spring

Compatible Extrusions: 45 Series T Slot

MOQ: 10

Custom Tool T Nut: Yes

Sort Order T Nuts: 20

Leaf Spring T Nut for 45 Series Aluminium Extrusions

Compatible With : T Slot Aluminium Extrusion 4545, T Slot Aluminium Extrusion 4590. Other generic T Slot Aluminium Extrusions with groove width 10mm.
Thread Sizes Available : M4, M5, M6, M8
Main Body Material : Steel (S10C Equivalent)
Main Body Surface Treatment : Nickel Coated
Clip/Leaf Material : SUS304
Leaf spring prevents the nut slipping off when inserted into the vertical direction

Thread Size	Tightening torque (N/m)
M4	4.1
M5	6.6
M6	11
M8	25.8

Dimensions

M (thread size) = 4, 5, 6, 8

A : 10, B : 15, C : 20, E : 7.5, T : 6.3

Unit : mm

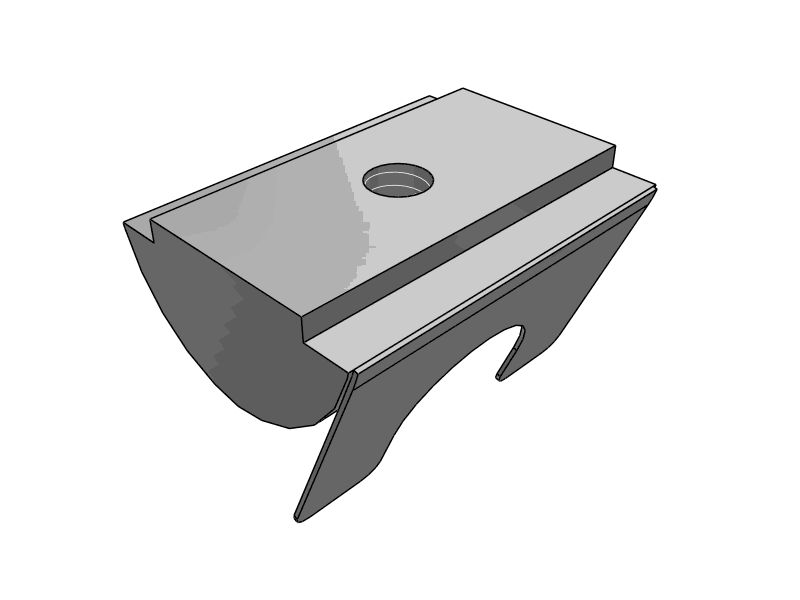

3D File Download

Click here to download 3d file in stp format.

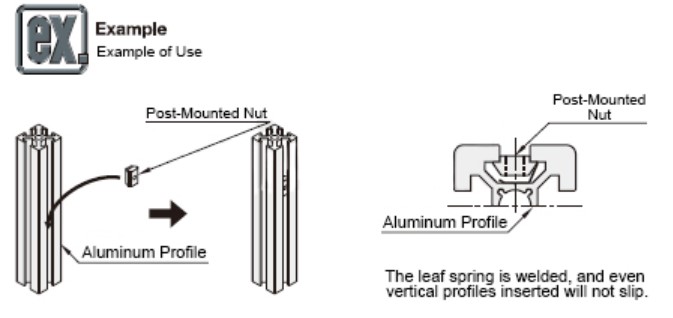

How to Use

Disclaimer:

All aluminium accessories sold on our website are designed and tested for compatibility with the aluminium profiles available on our website. We do not guarantee compatibility or fitment of these accessories with aluminium profiles purchased from third-party sources. Any issues arising from the use of third-party profiles are not our responsibility or liability.
