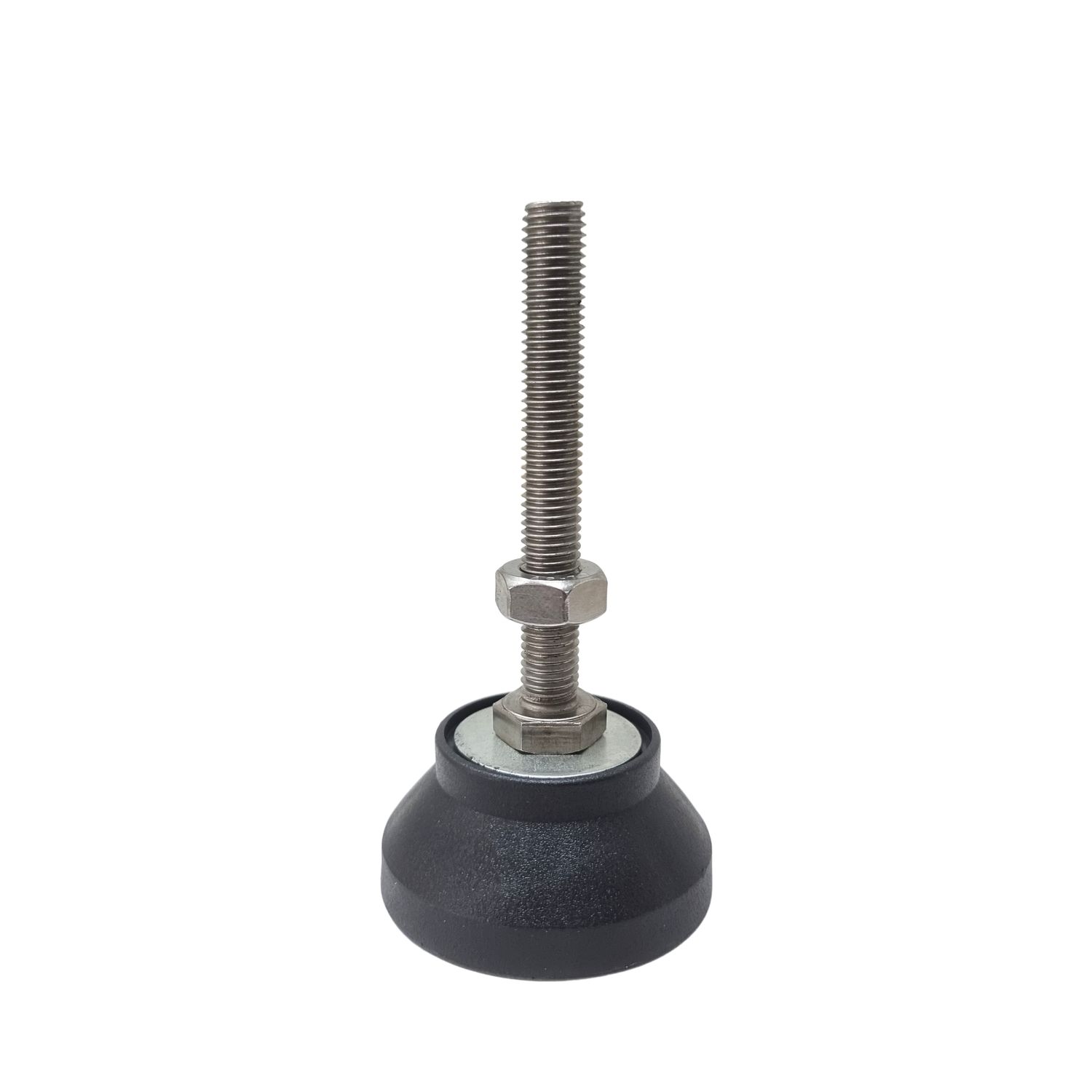

Leveling Mount M10 Thread
SKU 01680
₹210.00
In stock
1
Save this product for later
Leveling Mount M10 Thread
Product Details
Compatible With: M10 Thread
Payment Terms: 100% Advance
Dispatch Time: 4 to 5 working days
Delivery Time: 2 to 3 working days
Courier Used: Delhivery/Bluedart
GST(Tax): 18% on checkout
Custom Frame to Floor Tool: Yes
Leveling Mount M10 Thread
| Type | [Adjusting Bolt] Adjusting Bolt Type | Adjusting Bolt Shape Type | Standard Type |
|---|---|---|---|
| Height Adjusting Handle | Not Provided | Thread Material | [Steel] Steel |
| Thread Surface Treatment | Not Provided | Body Material | Nylon 6 |
| Body Height (L) mm | 116 | Width D(mm) | 58 |
| Allowable Load (Details)(kN) | 2.1 | Thread Length A(mm) | 80 |
| Main Body Height E(mm) | 82.5 | Nominal of Thread M(mm) | 10 |
Usage Method
Recommended adjuster mounting method
On the premise of ensuring safety, raise the equipment with a forklift (light equipment can roll the equipment sideways) to a height that is convenient to screw into the inner teeth.
Screw in the adjuster through threads. After assembling the required number of adjusters, lower the forklift and adjust horizontally.
Precautions
2. The selection adjuster should be screwed in more than half of the thread as far as possible (the shorter thread screwed in, the greater the bearing capacity).
2. The selection adjuster should be screwed in more than half of the thread as far as possible (the shorter thread screwed in, the greater the bearing capacity).
3. For heavy equipment, it is recommended to add lubricating grease to threads for easy adjustment.

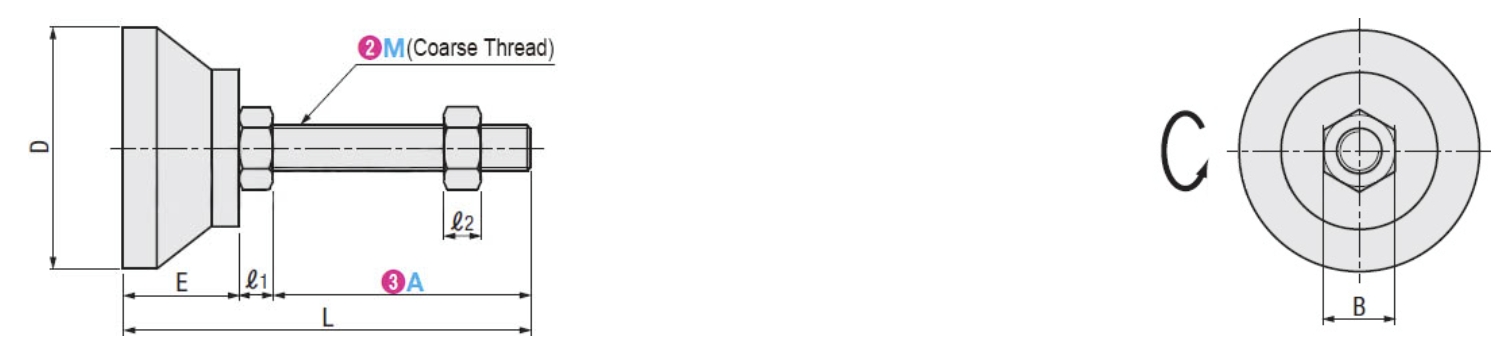

Dimensions
L = 115mm, A = 80mm, L1 = 6mm, L2 = 8mm, E=29mm, B = 17mm, D=58mm
Allowable Load = 2.1 kN
