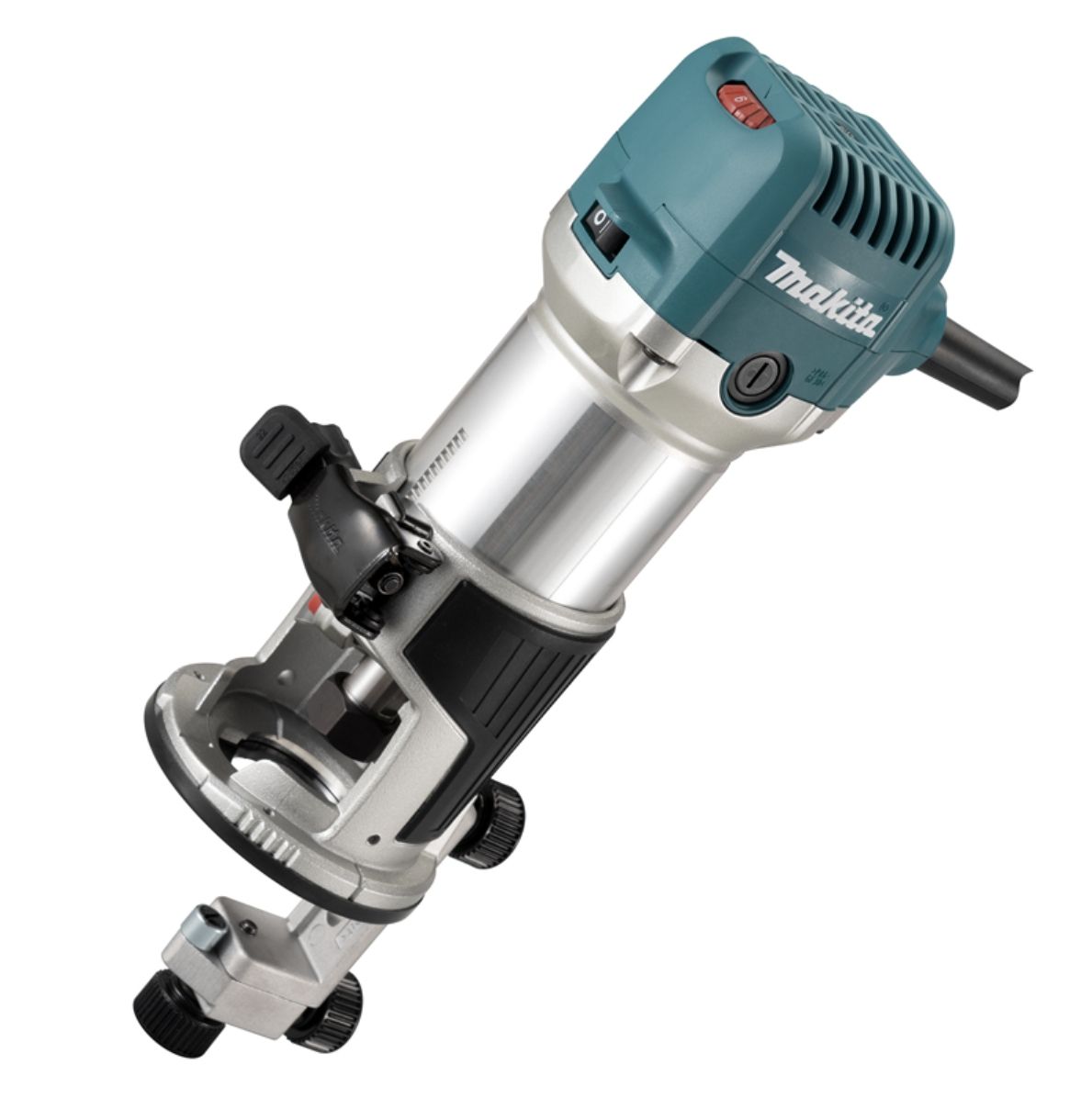

Makita RT0702C Trim Router
Makita RT0702C Trim Router
This powerful Makita trim router can be used as a spindle with your DIY CNC machine like the Openbuilds Workbee, X Carve and any other CNC machine to mill wood, mdf, plastics, foam etc.
- Collet Chuck - 6mm . You can use a collet adaptor to use 1/4 inch bits (available as option).
- 8mm Collet is also included in the box.
- Variable Speed Control - 10,000 to 34,000 RPM.
- Collet wrenches and all standard accessories included.

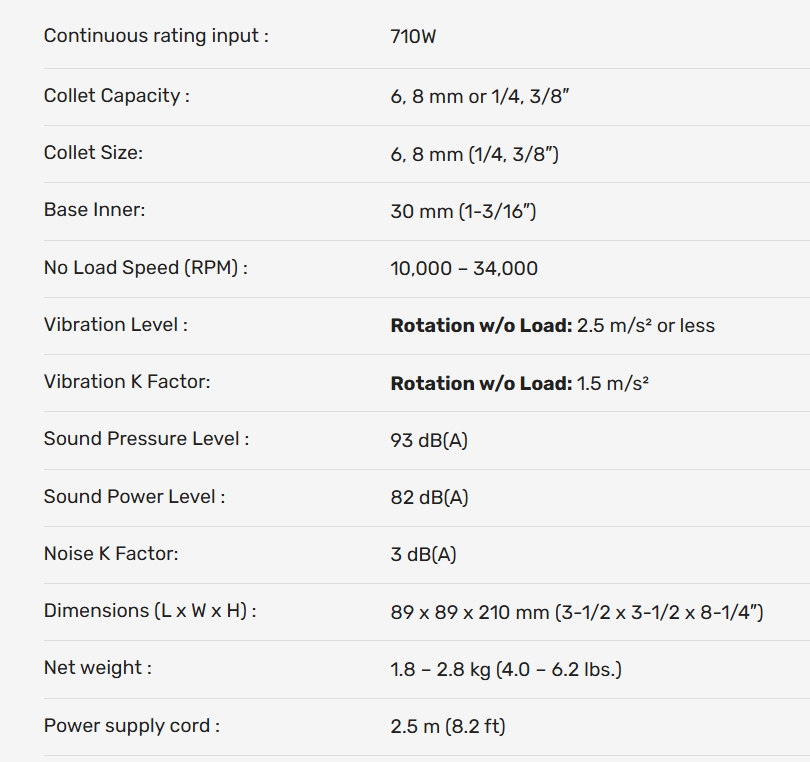

Technical Details
6 mm (1/4″), 8 mm (3/8”) 710 W Variable Speed Trimmer with Anti-Restart Function
- Aluminum housing and base for higher durability and accuracy
- 4 different base assemblies for added versatility
- Powerful motor delivers 710 W for improved performance
- Variable speed control dial (10,000 – 34,000 RPM) enables user to match the speed to the application
- Smooth rack-and-pinion fine depth adjustment system for more precise settings
- Slim and ergonomically designed body for increased comfort
- Quick release cam lock system for convenient depth adjustments and base removal/installation
- Electronic speed control maintains constant speed under load
- Base can be removed quickly to install other bases (plunge, tilt and offset)
- Soft start feature for smooth start-ups
- Flat top for stability when changing bits
- Connectable to Makita vacuum cleaners
- Rocker on/off switch for efficient operation
- Externally accessible brushes for easy serviceability
- Double insulated
Click here to download components description of Makita Trim Router
What is the collet size for the router. (ER 11, ER 20 ????)
Hello Sajid, Makita trim router use 6mm and 8mm collets only. Apart from these we use collet reducer of 3.175mm for 1/8 inch shank dia bits.
How many Watts or kilowatts is it? Does it mill aluminium?
It is 710watts
Can the machine ron for 2-3 hrs continously, I am searching for router for my cnc carving project
Makita Trim Router RT0700C can easily be used for 2-3 hrs continously
Thanks a lot for your feedback.
