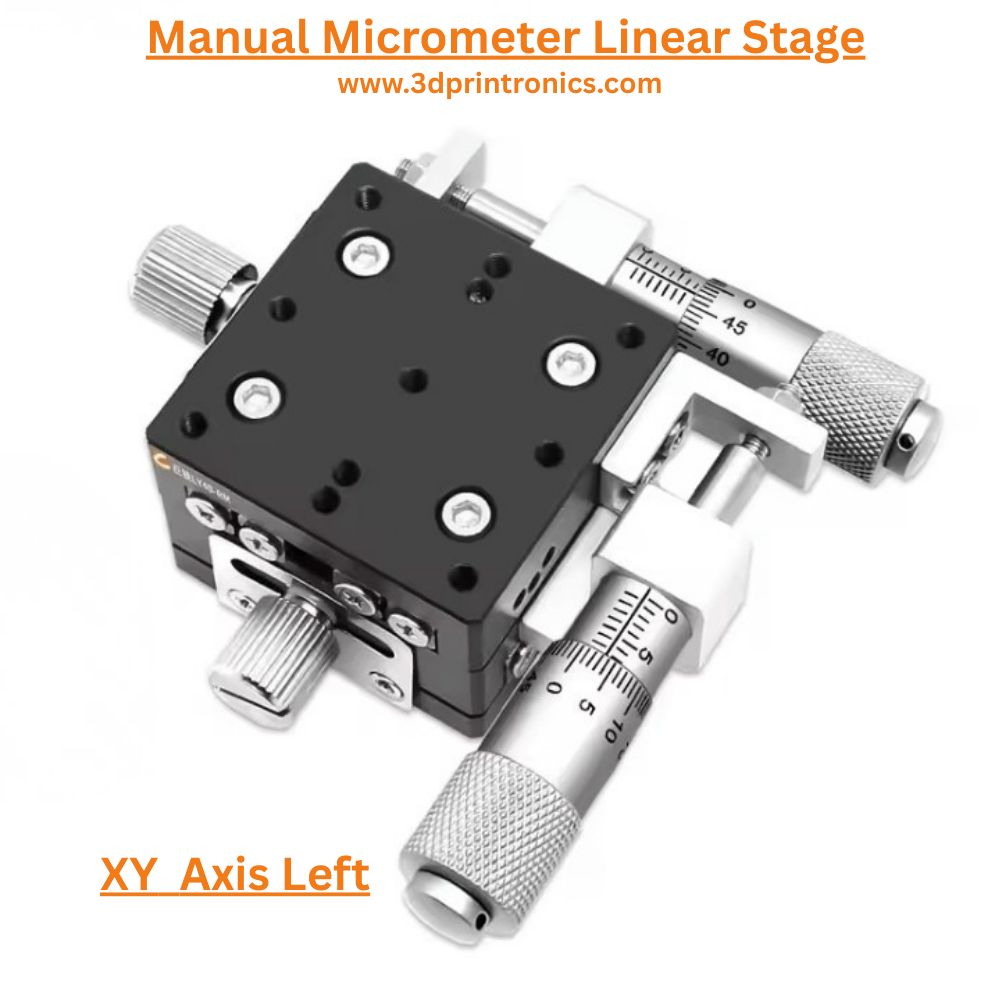

Manual Micrometer Linear Stage
SKU 01663-1
₹11,180.00
Free Shipping
High Precision X/XY/XYZ/XYR Axis
Select Guide Length
Select Configuration
Sold out
Sold out
In stock
1
Save this product for later
Manual Micrometer Linear Stage
Product Details
Brand: 3DPrintronics
Shipping Free: Yes
Payment Terms: 100% Advance
Dispatch Time: 15 working days from the date of payment
Delivery Time: 4 to 5 working days after dispatch
Courier Used: Delhivery/Bluedart/DTDC
GST(Tax): 18% on checkout
Dispatch Time : 15 working days from the date of order & payment
Delivery Time : 4 to 5 working days from the date of dispatch
It is always our endeavor to ship on time, but some times due to unforeseeable circumstances, shipping might get delayed. Under such situations we will keep you updated and we request you to please bear with us.
Manual Micrometer Linear Stage – High-Precision Positioning Platform
X/XY/XYZ/XYR-Axis Manual Displacement Stage for Optical, Biomedical & Precision Engineering Applications
Product Overview
This Manual Micrometer Linear Stage is a compact, high-precision positioning platform designed for accurate two-axis movement using micrometer heads. It is ideal for applications requiring fine manual adjustment such as optical alignment, laser positioning, biomedical instruments, inspection setups, research labs, and precision assembly.
Built from high-strength aluminum alloy with precision ground guide rails, this stage ensures smooth motion, excellent repeatability, and long-term stability.
Key Features
🔧 Precision Micrometer Drive
- High-resolution manual micrometer heads for smooth and accurate positioning
- Enables fine adjustment in X and Y axes
- Ideal for micro-positioning and alignment tasks
📐 Multiple Travel Length Options
Available guide lengths:
- 40 mm
- 60 mm
- 80 mm
- 90 mm
(Select as per application requirement)
🧱 Rigid & Stable Construction
- CNC-machined aluminum alloy body
- Black anodized finish for durability and corrosion resistance
- Low backlash design for stable positioning
🔄 Smooth Linear Motion
- Precision linear guide rails
- Low friction movement with excellent repeat accuracy
- Suitable for continuous fine adjustments
🧪 Wide Application Range
- Optical and laser alignment systems
- Biomedical and laboratory instruments
- Camera calibration & inspection setups
- Research & educational experiments
- Precision assembly and testing fixtures
| Parameter | Details |
|---|---|
| Axis Type | X/XY/XYZ/ XYR |
| Drive Mechanism | Micrometer Head |
| Travel Length Options | 40 / 60 / 80 / 90 mm |
| Table Size Options | 40×40, 60×60, 80×80, 90×90 mm |
| Material | Aluminum Alloy |
| XY Stroke | Left /Right 6.5mm,total 13mm |
| Mounting | Pre-drilled mounting holes |
| Operation | Manual |
| Finish | Black Anodized |
Why Choose This XY Linear Stage
✔ High positioning accuracy
✔ Compact and robust design
✔ Ideal for labs, optics, and precision engineering
✔ No electronics – zero noise, zero EMI
✔ Long service life with minimal maintenance
