Mounting Plates for 4080 T Slot Profile

Mounting Plates for 4080 T Slot Profile

Special Foot Bases for Aluminum Extrusions profiles Suitable for the connection of anchor and casters. Available in many specifications, it can be matched with various sizes of profiles, which is durable.

Use this plate with

Leveling Mounts For 4080 T Slot Profile

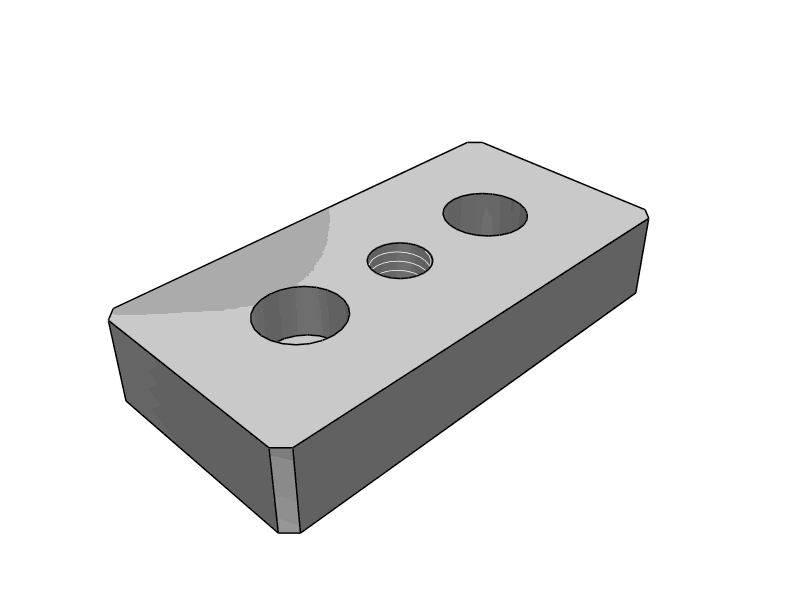

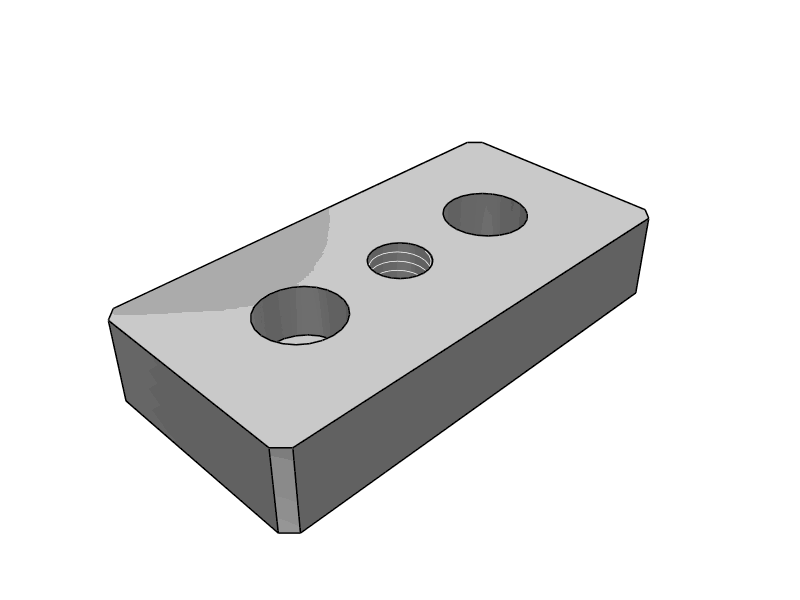

Specifications & Drawing

Adjusting bolt = M12

A=40, B=80, C =12.1, M=12, d1=8.9, d2=14, h=8.3

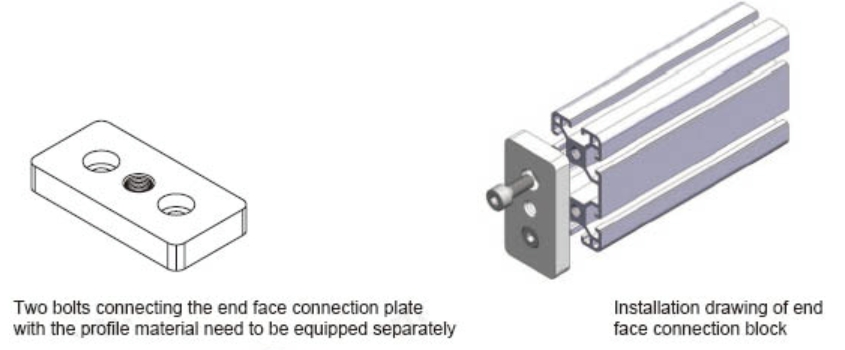

Application

Download 3D File

Click here to download 3d file in stp format

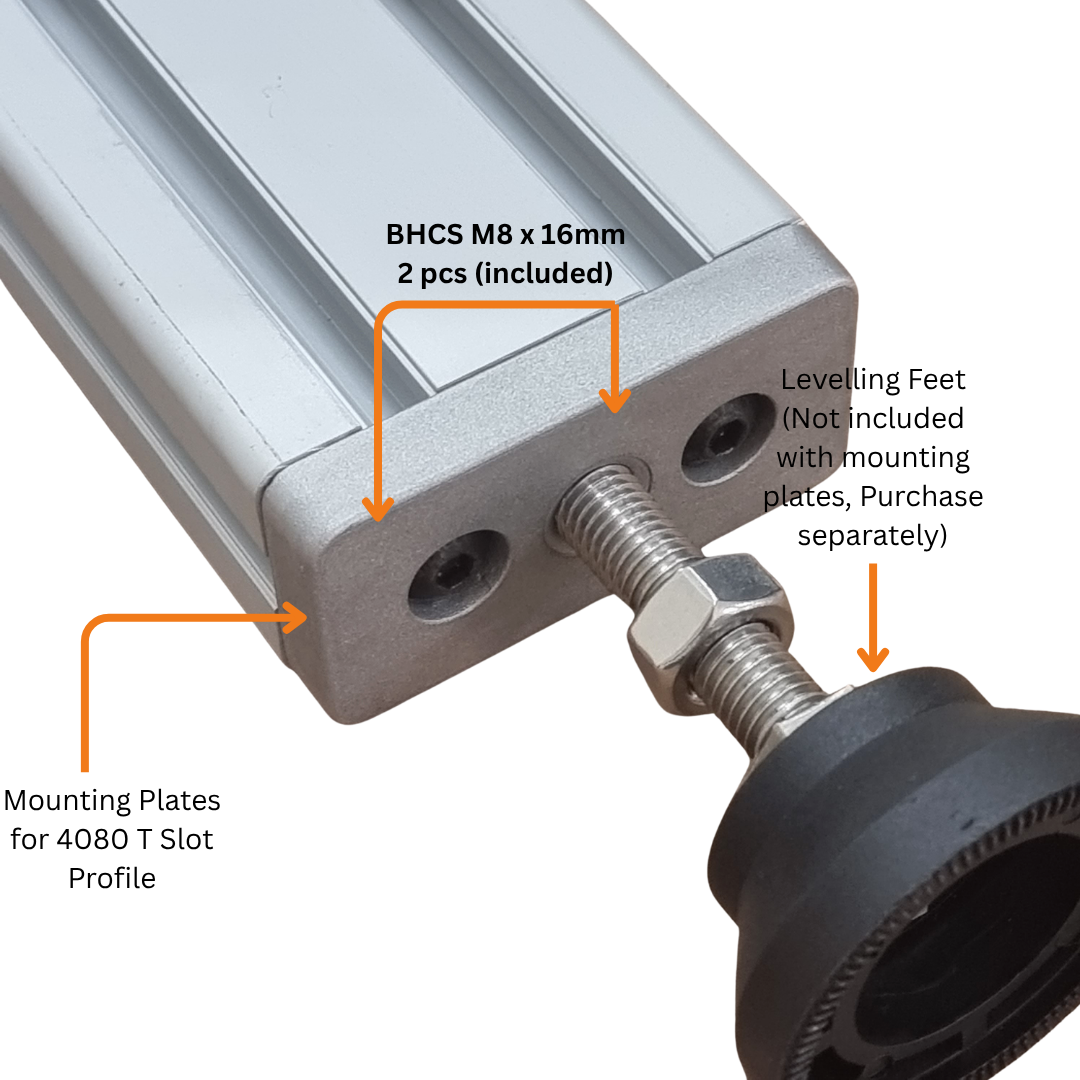

What Will You Get

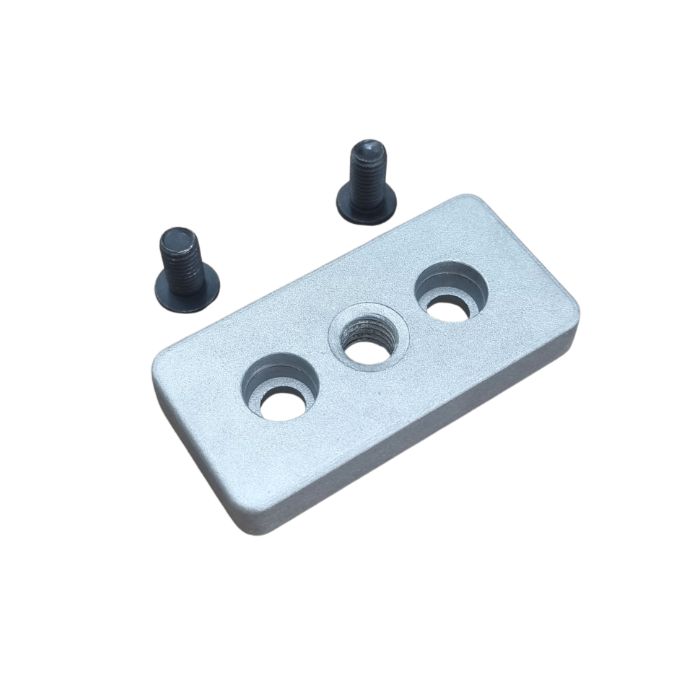

1) Mounting plate for 4080 T Slot x 01pc

2) SHCS M8 x 16mm screws x 02pcs (in order to use these bolts, both end holes of the profile has to be tapped with M8 thread).

Note

Levelling Feet Shown in the images is not included with this product. It needs to be purchased separately.
