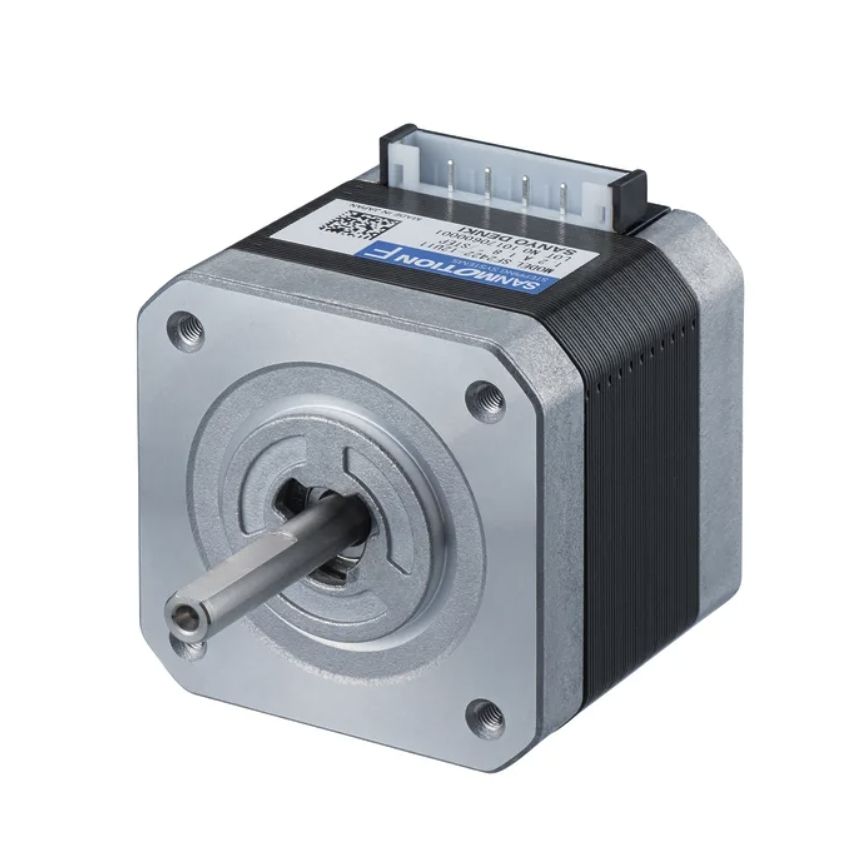

Nema 17 Stepper Motor - SF242 - Sanyo Denki
SKU 01630
₹5,678.00
Free Shipping
Japanese Quality
In stock
1
Save this product for later
Nema 17 Stepper Motor - SF242 - Sanyo Denki
Product Details
Brand: Sanyo Denki
Payment Terms: 100% Advance
Dispatch Time: 15 working days from the date of payment
Delivery Time: 2 to 3 working days after dispatch
Courier Used: Delhivery/Bluedart
Model Number: SF2424-10B41
GST(Tax): 18% on checkout
Dispatch Time : 15 working days after order & payment
Delivery Time : 2 to 3 working days after dispatch
This motor is equivalent to 42CM08 in Leadshine
It is always our endeavor to ship on time, but some times due to unforeseeable circumstances, shipping might get delayed. Under such situations we will keep you updated and we request you to please bear with us.
Scope of responsibility : Please note we do not provide any technical help with respect to the usage of this product. The responsibility to successfully run and operate this product lies solely on the user. Please read the technical manual given on this page for more information about this product.

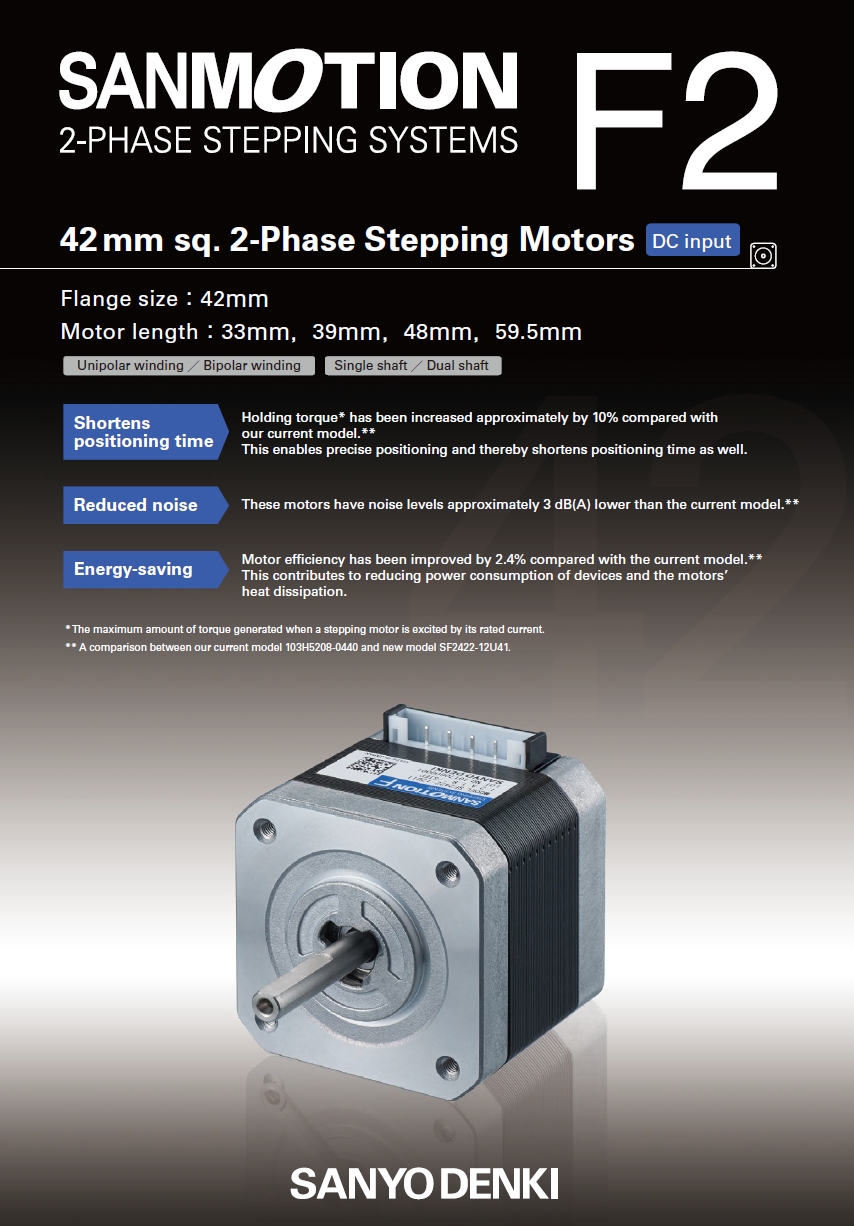

Nema 17 Stepper Motor - SF242 Series - Sanyo Denki
The Sanyo Denki SF2424-10B41 is a high-precision hybrid single-shaft stepper motor in the popular SF242 series. Designed for reliable performance in automation, robotics, CNC and general motion control applications, this motor delivers:
- High holding torque (0.8 N·m) suitable for moderate-force positioning and motion tasks.
- Standard 1.8° step angle, providing fine resolution (200 steps per revolution) for accurate positioning and smooth motion control.
- Compact form factor (42 × 42 mm) — enabling easy integration into small-to-medium sized machines and devices.
- Connector-type wiring with top-insertion connector (common across the F2 series) — simplifies cabling and improves mechanical layout flexibility compared to traditional side-wired stepper motors.
- Wide environmental tolerance: operates from –10 °C to +50 °C and in 20–90% relative humidity (non-condensing), making it suitable for many industrial and lab environments.
Made by Sanyo Denki’s SANMOTION division, the SF242 series is engineered for robust, long-life operation, with the 42 mm frame and single-shaft design offering versatility for retrofits or custom builds.

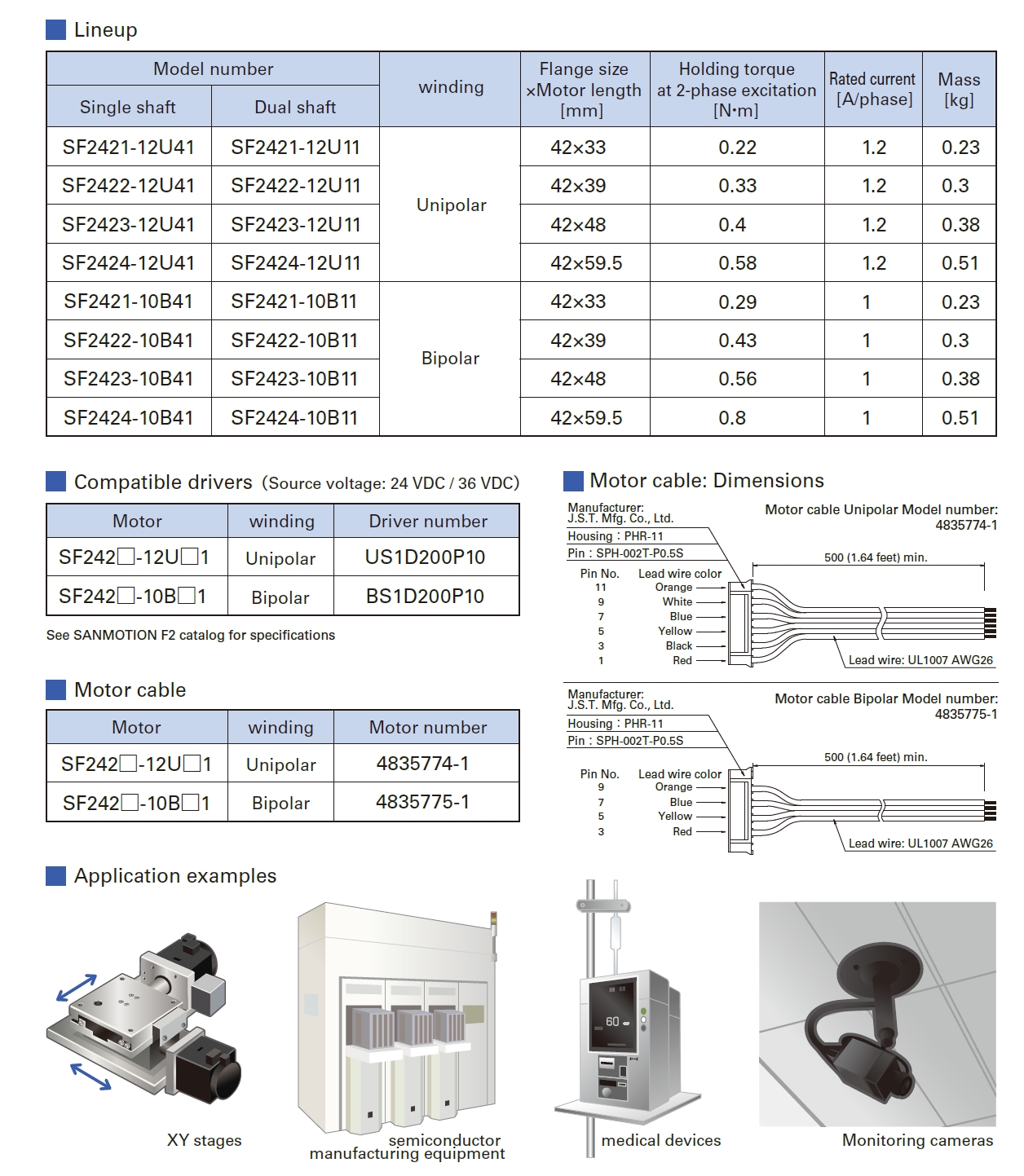

The SF2424-10B41 variant represents the highest torque among the 42 mm bipolar SF242x-10B41 lineup, making it ideal for applications requiring stronger holding torque without sacrificing compactness.
✅ Typical Applications
- 3D printers and CNC machines (especially compact or desktop-size)
- Robotics and automation (pick-and-place, gantry axes, indexing tables)
- Conveyor and positioning systems
- Laboratory instrumentation and precision motion control
- Retrofits / replacements where a NEMA-17 sized high-torque bipolar stepper is needed
📦 Compliance & Quality
- CE / UL / TUV certified
- RoHS-compliant (free of hazardous substances)
- Made in Japan, ensuring high manufacturing quality and reliability.
Technical Specifications
| Parameter | Value |
|---|---|
| Series | SANMOTION F2 – SF242 Series |
| Model | SF2424-10B41 |
| Frame Size | 42 × 42 mm |
| Body Length | 59.5 mm |
| Step Angle | 1.8° |
| Holding Torque | 0.8 N·m |
| Rated Voltage | 24 V |
| Rated Current | 1.0 A/phase |
| Wiring Type | Bipolar, 4-wire |
| Shaft Type | Single Shaft, 5 mm diameter, D-shaped |
| Rotor Inertia | 0.094 × 10⁻⁴ kg·m² |
| Operating Temperature | –10°C to +50°C |
| Operating Humidity | 20–90% RH (non-condensing) |
| Mass | Approx. 0.51 kg |
| Compliance | UL / CE / RoHS |
🏆 Why Choose Sanyo Denki SF2424-10B41?
✔ Japanese engineering reliability
✔ High performance in a compact footprint
✔ Excellent thermal and mechanical stability
✔ Smooth operation ideal for precision projects
✔ Premium quality for industrial and R&D applications
