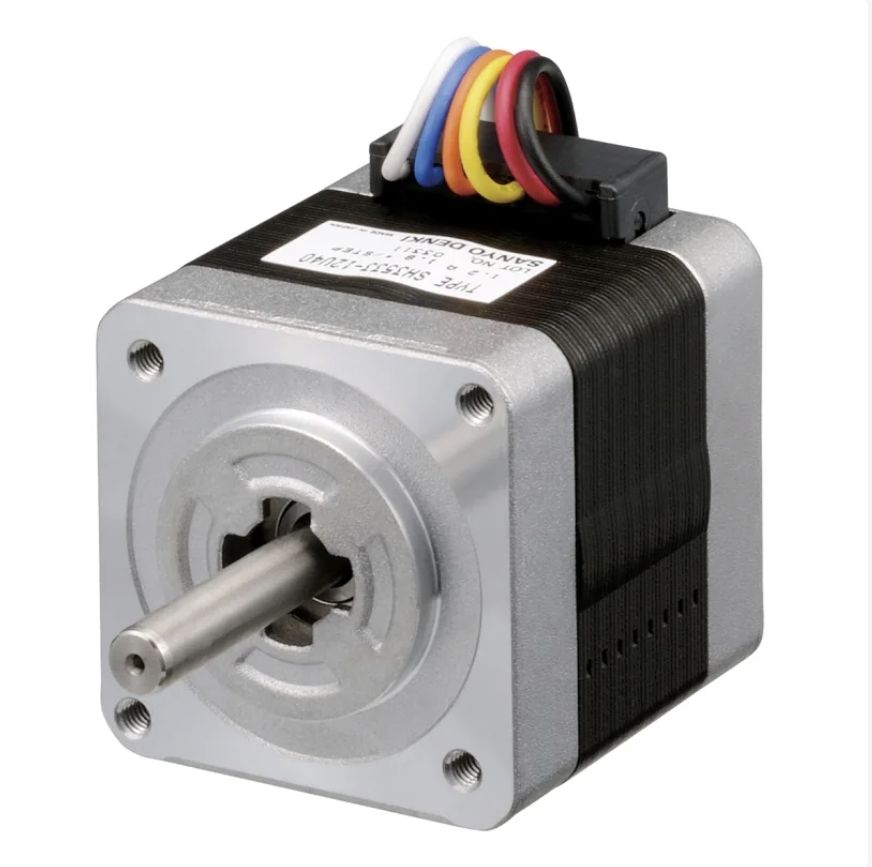

Nema 14 Stepper Motor - SH3533 - Sanyo Denki

Dispatch Time : 10-12 working days

Delivery Time : 2 to 3 working days after dispatch

This motor is equivalent to Leadshine 35CM015.

Nema 14 Stepper Motor - SH3533 Series Hybrid - Sanyo Denki

The Sanyo Denki SH3533-series stepper motor is a compact, high-performance hybrid unipolar stepper motor ideal for space-constrained applications such as electric grippers, actuators, or small precision motion systems.

Its small 35 × 35 mm frame and 5 mm shaft make it well suited for compact mechanical designs, including robotic components and custom 3D-printing/prototyping rigs.

✅ Features & Applications

• Compact form factor — The small 35×35 mm frame makes it suitable for compact designs, where space and weight are constrained.
• Precision stepping — With 1.8° per step, the motor offers fine resolution, making it suitable for precise positioning tasks.
• Adequate torque for small-to-medium loads — Holding torque of 0.15 Nm is sufficient for light actuators, grippers, or low-load positioning systems.
• 24 V unipolar operation — Convenient for integration with common DC power supplies and motor drivers.
• Flexible wiring — Six-wire unipolar wiring allows easier integration in control applications where center taps may be used.
• Quality & compliance — Meets CE / UL / TUV and RoHS standards, ensuring reliability and regulatory compliance.
• Ideal for constrained spaces — Useful in compact robotics, 3D-printing machinery (e.g. for extruders or filament feed), small CNC equipment, or electric grippers.

✅ Typical Applications

• 3D printers and CNC machines (especially compact or desktop-size)
• Robotics and automation (pick-and-place, gantry axes, indexing tables)
• Conveyor and positioning systems
• Laboratory instrumentation and precision motion control
• Retrofits / replacements where a NEMA-17 sized high-torque bipolar stepper is needed

📦 Compliance & Quality

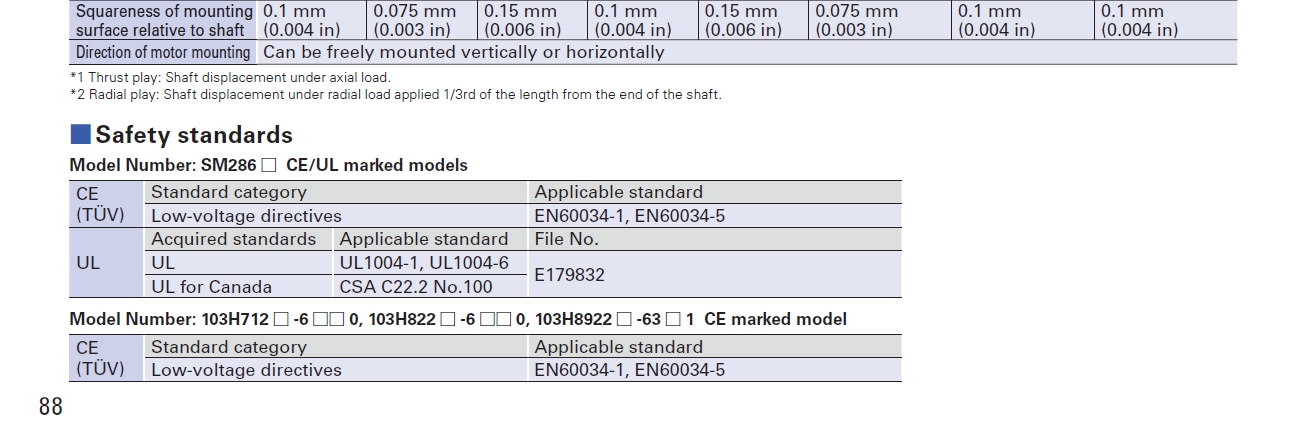

• CE / UL / TUV certified
• RoHS-compliant (free of hazardous substances)
• Made in Japan, ensuring high manufacturing quality and reliability.

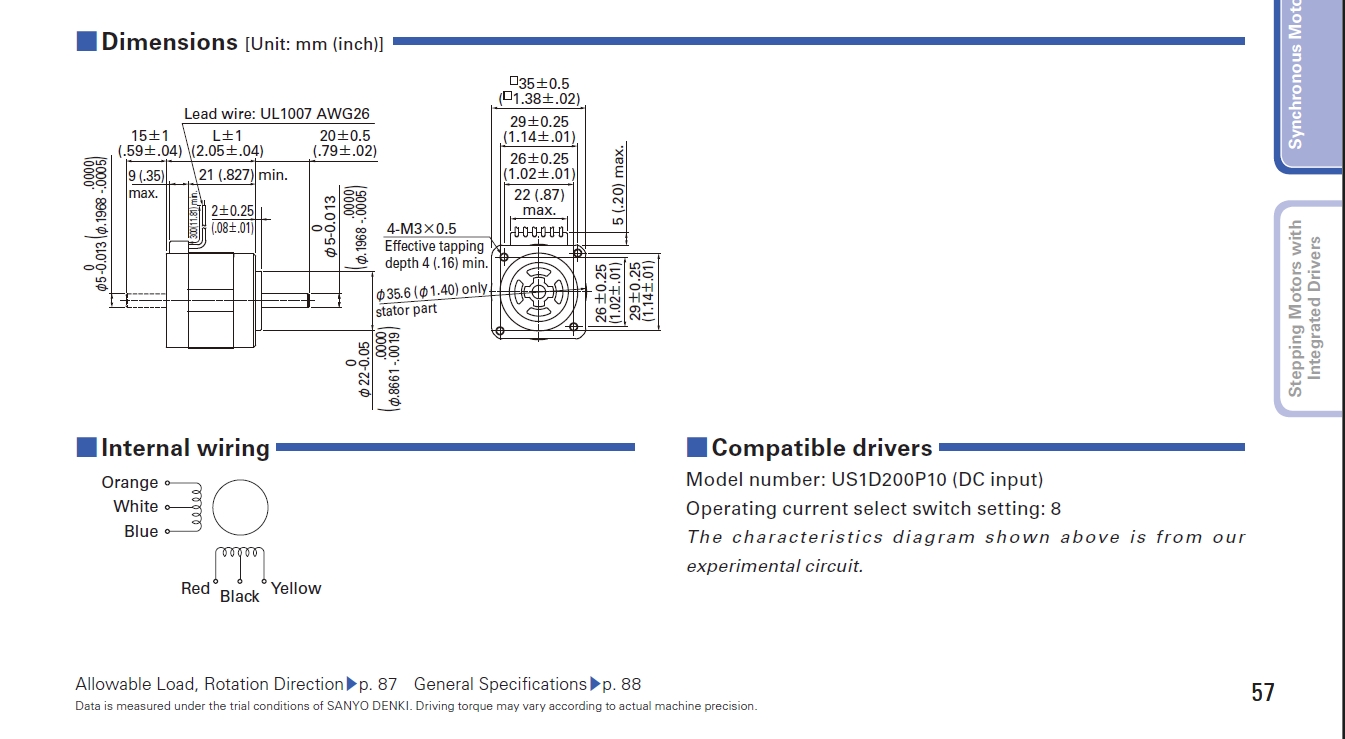

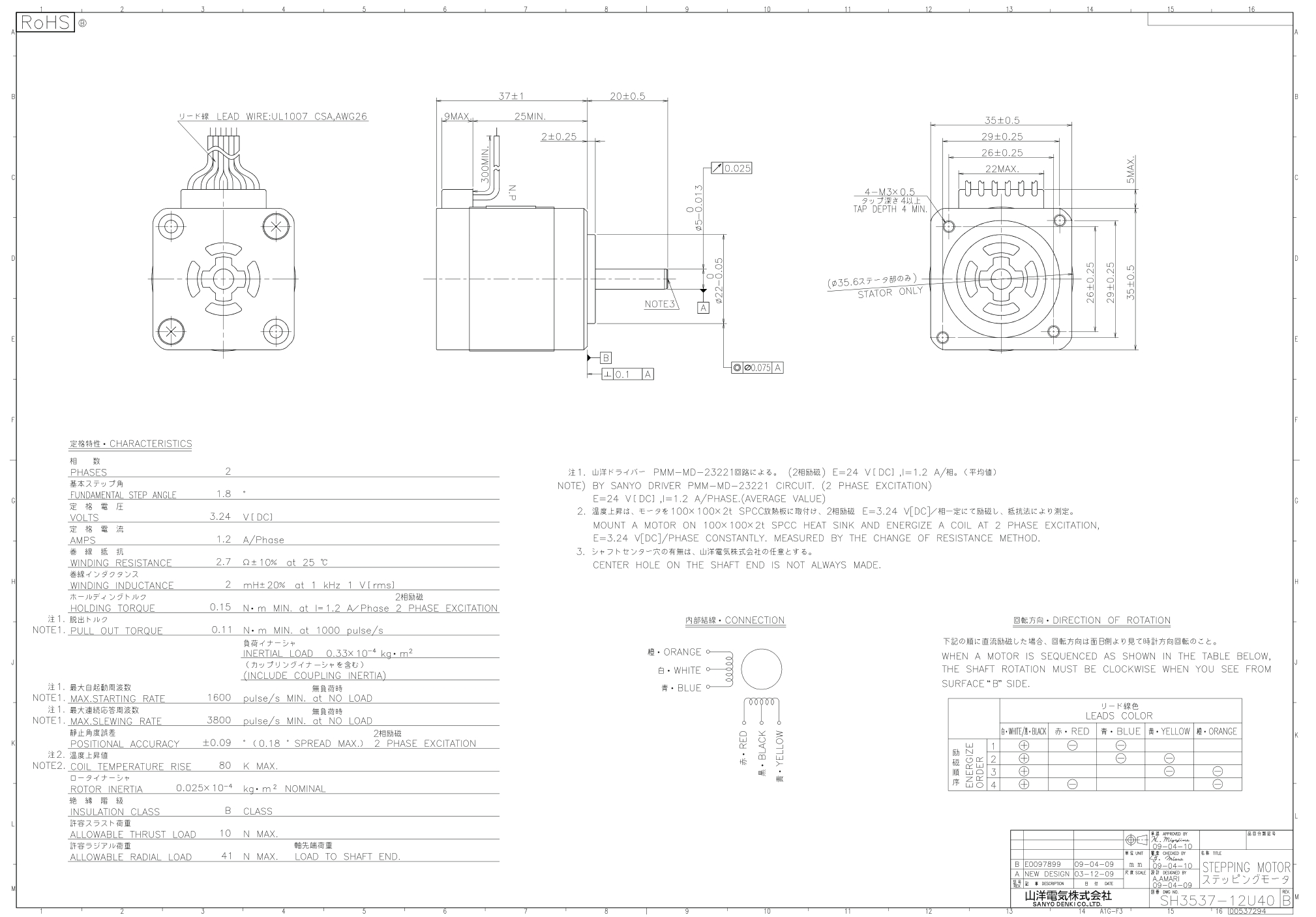

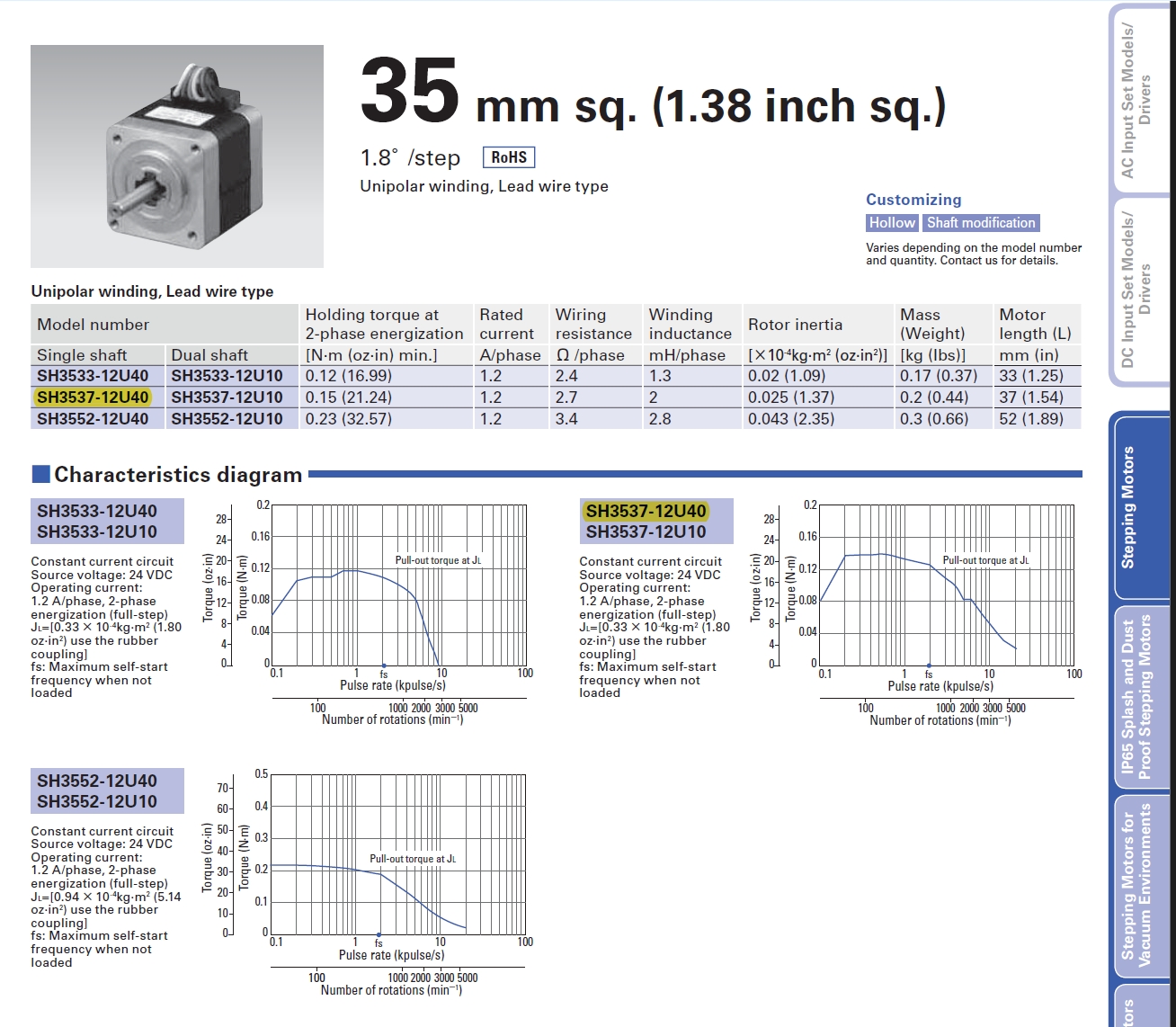

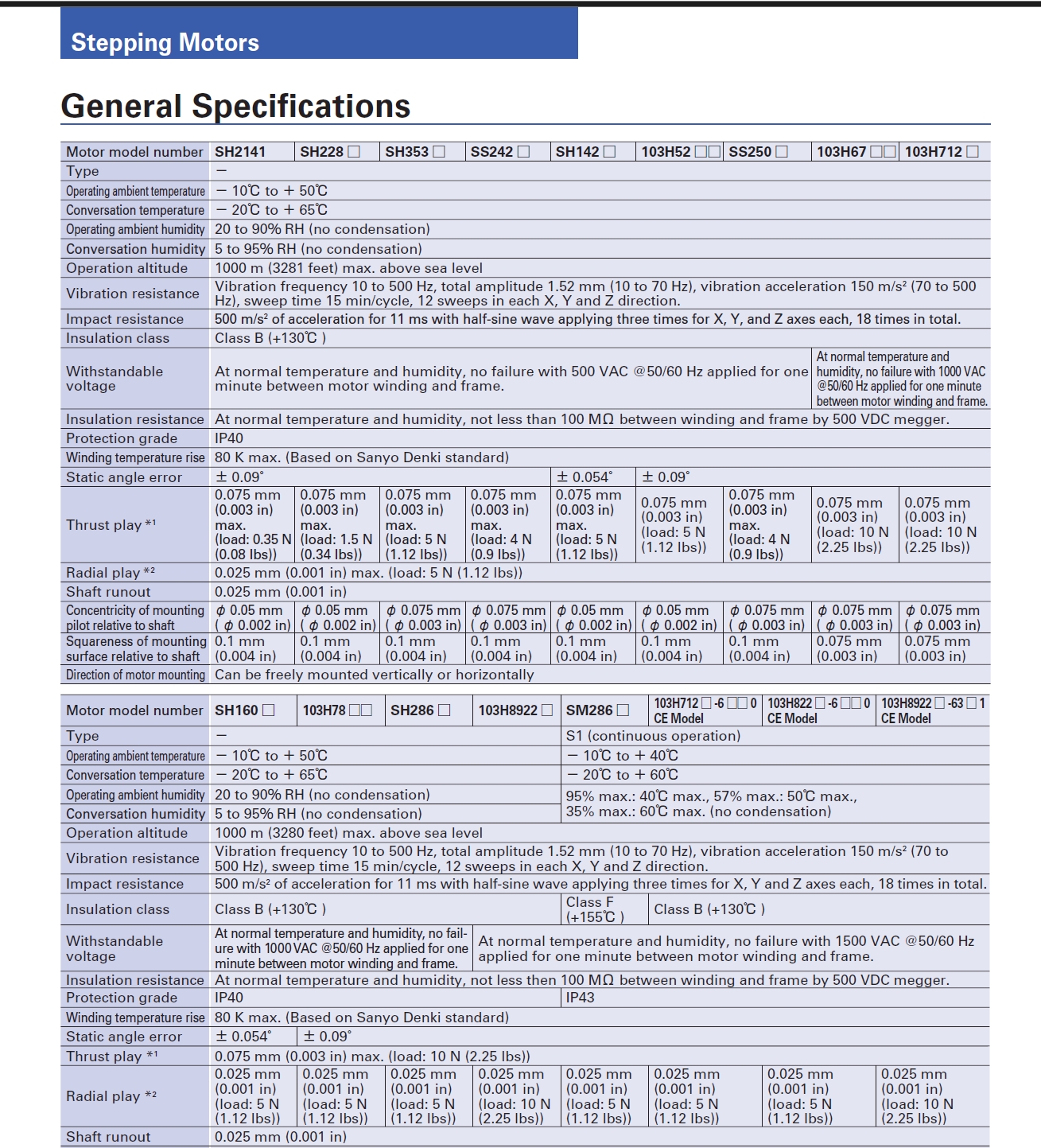

Technical Specifications

Data Sheet - Click here to download

🏆 Why Choose Sanyo Denki

✔ Japanese engineering reliability
✔ High performance in a compact footprint
✔ Excellent thermal and mechanical stability
✔ Smooth operation ideal for precision projects

✔ Premium quality for industrial and R&D applications

ℹ️ Notes / Recommendations

• Ensure your motor driver or controller supports unipolar 6-wire configuration at 24 V and 1.2 A per phase.

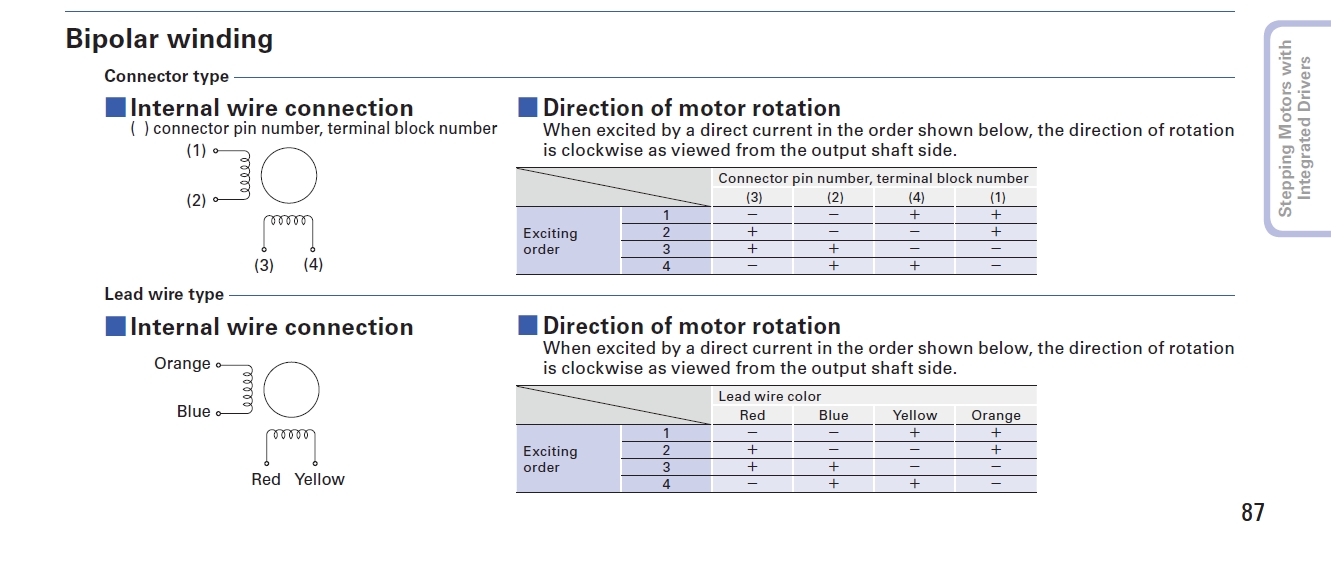

• As this is a hybrid unipolar stepper, proper wiring and coil sequencing is important for reliable operation.

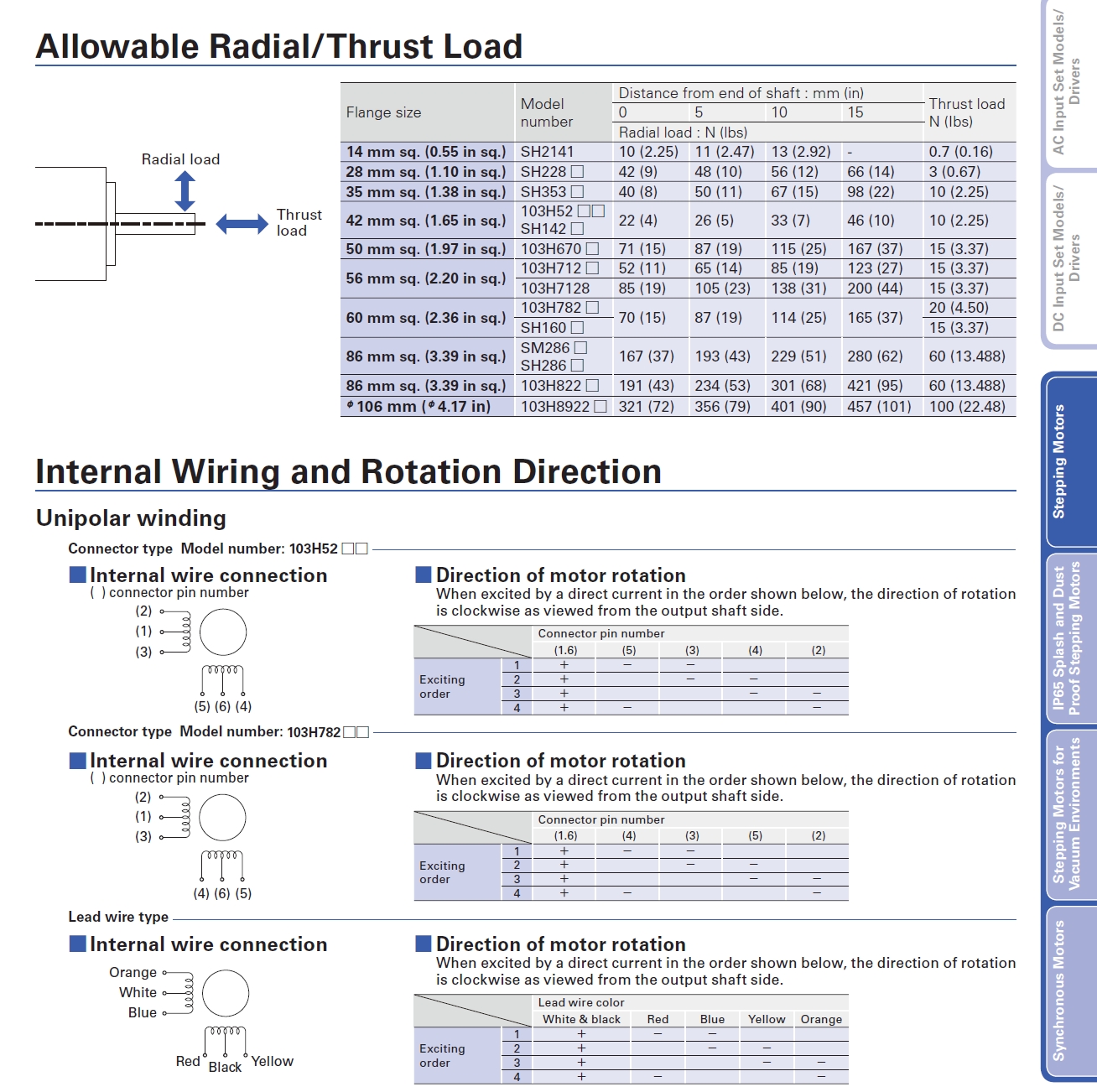

• Check radial and thrust load limits (from datasheet) when integrating into mechanical assemblies — this motor suits light to moderate loads, not heavy-duty axial/radial loading.
• For projects like 3D printers or CNC machines, appropriate acceleration/jerk settings are recommended to prevent missed steps due to torque limitations.
