Sheet Metal 2 Hole Joining Plate For 30 Series T Slot Extrusion
SKU 01365
₹70.00
For 20 Series
was ₹99.00 Save 29%
Material - Steel
Fasteners & T Nuts
In stock
1
Save this product for later
Sheet Metal 2 Hole Joining Plate For 30 Series T Slot Extrusion
Product Details
Brand: 3DPrintronics
Dispatch Time: 7 to 8 working days
Delivery Time: 2 to 3 working days
Courier Used: Delhivery/Bluedart/Smartr
GST(Tax): 18% on checkout

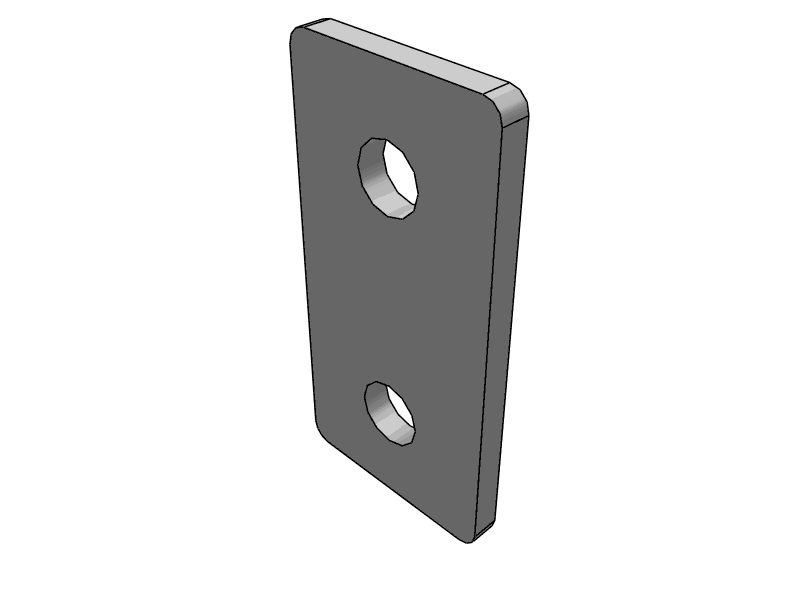

Sheet Metal 2 Hole Joining Plate For 30 Series T Slot Extrusion
Compatible with - 30 Series T Slot Aluminum Extrusion Profile
It can be used as reinforcement for frame fastening. Sheet metal plates are used for necessary points, such as when reinforcement is necessary for fastening parts (bracket fastening, bolt fastening, joint fastening).
Specifications
Shape - Rectangle
Material - Steel
Thickness - 3.2mm
Weight - 32gms
Surface Treatment - Trivalent Chromate
Applicable Screws - M6 x 10mm
Dimensions
3D File Download
Click on the image below to download the 3d file.
Fasteners & T Nuts (Optional)
If you buy fasteners & T nuts from the options you will receive the following items
1) SHCS M6 x 10mm - 02pcs
2) M6 Drop in T nut for 30 Series - 02pcs
You May Also Like
M3,M4,M5,M6

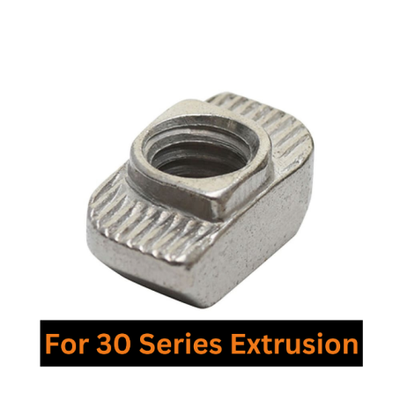

Drop In T Nut for 30 Series Aluminium Extrusions
