Sheet Metal T Type Joining Plate For 20 Series

For use with : 2020, 2040, 2060, 2080 & C beam profiles.

These sheet metal plates are much better than what you get in the local hardware shops.

They are strong, perpendicular, properly chamfered and surface treated.

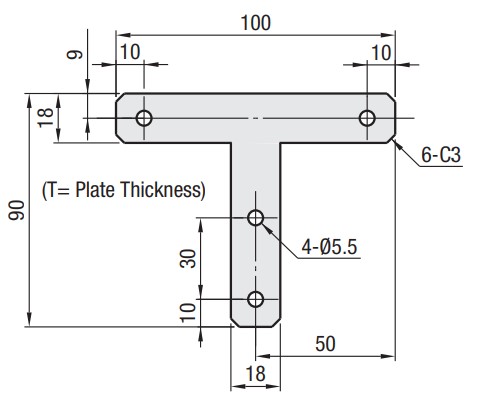

Use the dimensional drawing of this joining plate to include it in your CAD designs. No more guess work for dimensions.

Specifications

Shape - T Type

Material - Steel

Thickness (T) - 3.2mm

Weight - 52gms

Surface Treatment - Trivalent Chromate

Applicable Screws - SHCS/BHCS M5 x 8mm

Dimensions

3D File Download

Click on the image below to download the 3d file.

Fasteners & T Nuts (Optional)

If you buy fasteners & T nuts from the options you will receive the following items

1) SHCS M5 x 8mm - 04pcs

2) M5 Drop in T nut for 2020 - 04pcs
