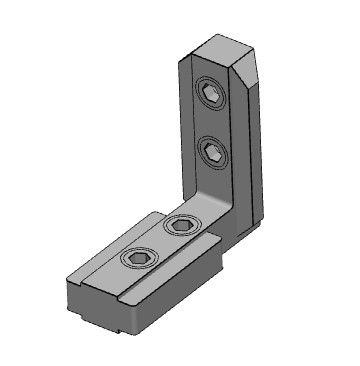

Steel Inner Bracket (Long Type) For 45 Series T Slots

Steel Inner Bracket (Long Type) For 45 Series T Slots

For simple, right angled and concealed connection.

This bracket can be used only with 45 Series T Slot Aluminium extrusions with groove width of 10mm.

Compatible profile - 4545

This bracket has two grub screws on each side for more strong hold.

Interference with other parts on the frame can be avoided, assembly is easy and quick, and easy to install without processing the profile body.

It is usually used when the load requirement is not high.

Technical Specifications

1) Body Material : Zinc Alloy

2) Surface Treatment : Nickle Plated

3) Allowable Load : 1100 N

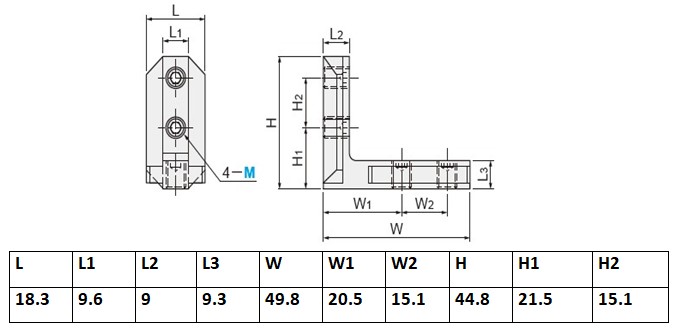

Dimensions

3D File Download

Click here to download the 3d file. File format : stp
