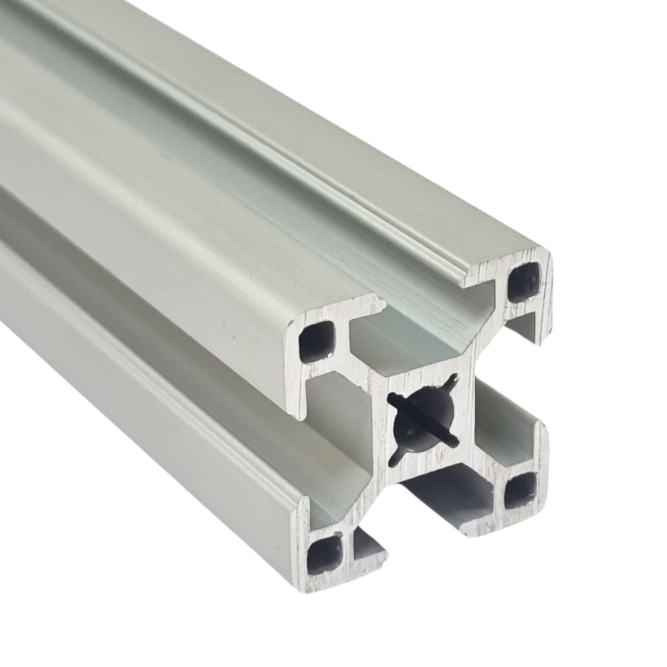

T Slot Aluminium Extrusion 3030 (Silver)
Free and Precise Custom Cutting | Secure Packaging | Free Next Day Shipping | Tapping & Counter Hole Boring Service | Made & Supported in India
|
Product Details |
|
|
Dimension |
30 mm x 30 mm |
|
Type, Series |
T Slot , 30 Series |
|
Max Continuous Length Available |
3000 mm |
|
Material Grade |
6063 T6 Aluminium |
|
Finish |
Silver Anodised |
|
End Tap Size |
M8 thread up to 15mm (₹30/Tap) |
|
Counter Bore Size |
ID 8mm, OD 16mm – Centred on the slot (₹70/Hole) If you want only access hole instead of CB Hole, you can mention in order comments. Drawing (even a hand sketch will work) needed for this service |
|
Cutting Tolerance |
+- 0.2 mm |
|
No. of Slots |
4 (one on each side) |
|
Slot Width |
8.2 mm |
|
Weight/meter |
656 g |
Accessories for this profile
| Accessory | Type-1 | Type-2 | Type-3 | Type-4 |

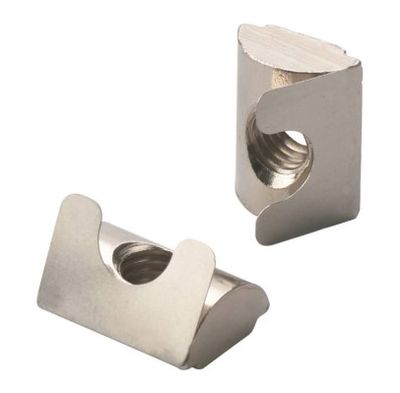

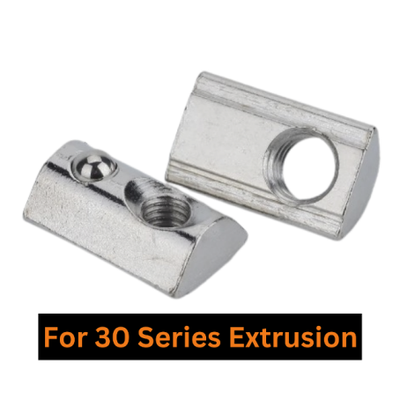

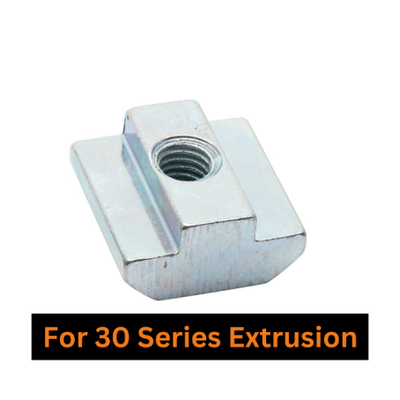

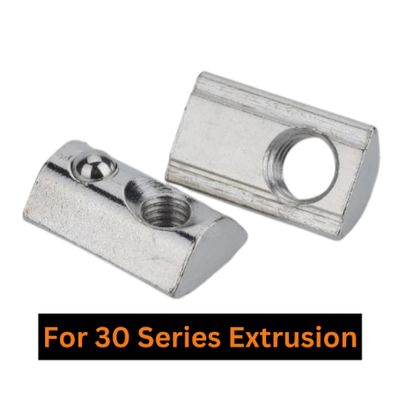

| T Nut | Drop in | Pre Insertion | Spring (Ball) | Leaf Spring |

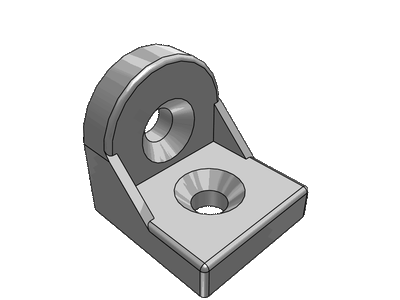

| Brackets | Corner | Extruded | Inner | Turning |

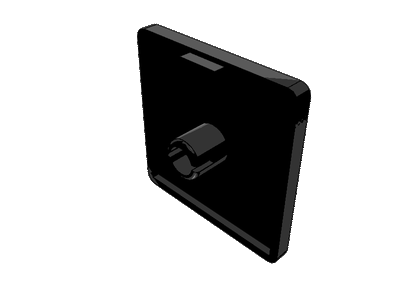

| End Cap | PVC Endcap | |||
| Slot Cover | PVC Slot Cover | |||
| Levelling | Levelling Mount | |||

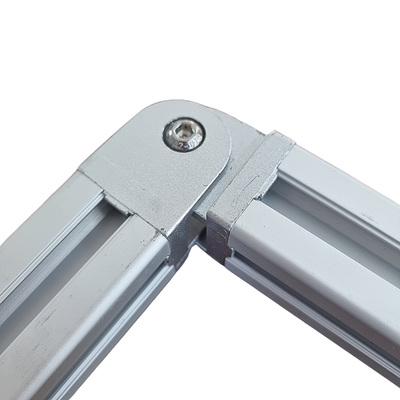

| Hinges | Movable Hinge Set |
