V Slot Aluminium Extrusion 2060 (Silver)

Name: V Slot Aluminium Extrusion 2060 (Silver)
SKU: VS26S
Price: 1200.0 INR
Availability: OutOfStock

SKU VS26S

₹1,200.00

Free Shipping

Precise Custom Cut, Safe Packing

Length

Please choose

End Tapping

Please choose

Counter Bore Holes

Please choose

Cut Details

Enter Here

In stock

Quantity:

Save this product for later

V Slot Aluminium Extrusion 2060 (Silver)

Product Details

Dispatch Time: 1 to 2 working days

Delivery Time: 5 to 6 working days

Courier Used: DELHIVERY BY ROAD

holes-per-side: 3

type: V Slot

series: 20

color: Silver

End Tap Size: M5 upto 15mm Depth

End Tap Price Per Hole: 30

CBH Size: ID 5mm, OD 10mm

CBH Price per Hole: 70

Custom Extrusion Tool: Yes

Sort Order Extrusions: 25

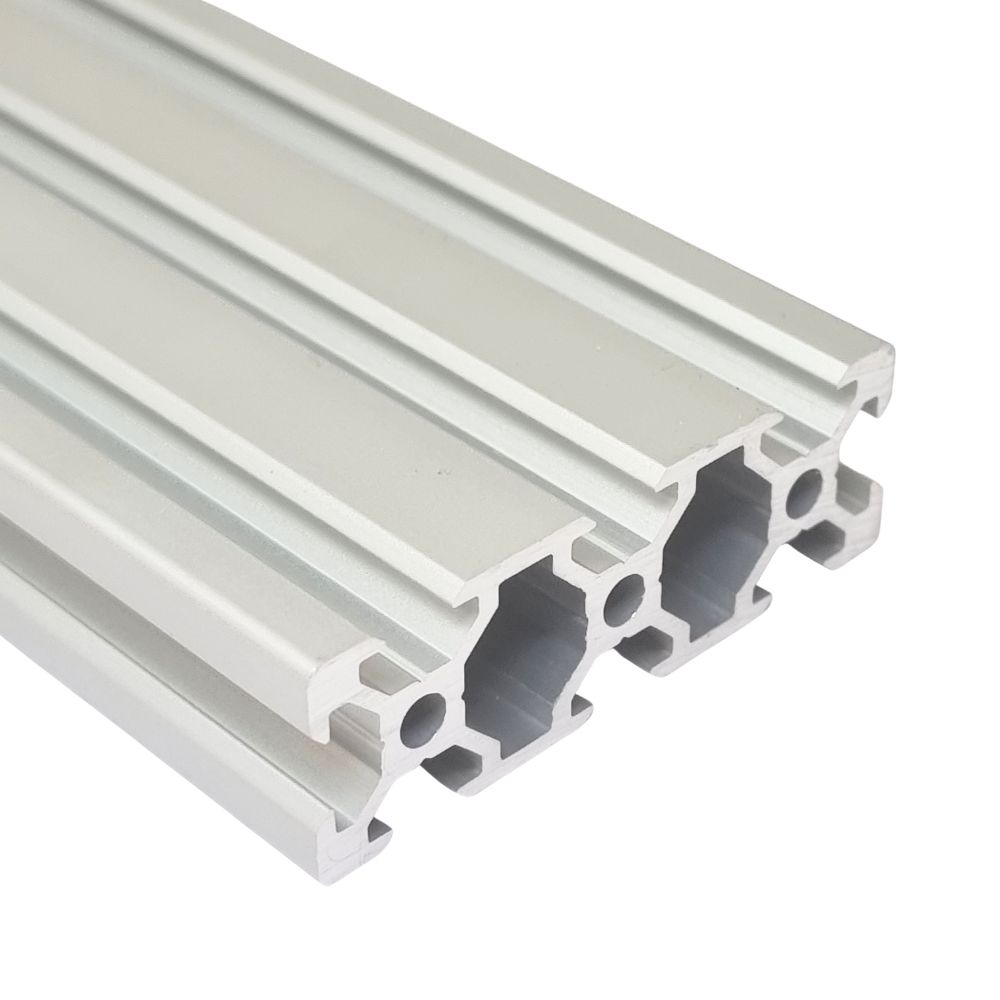

2060 V Slot Aluminium Extrusion Profile

Free and Precise Custom Cutting | Secure Packaging | Free Next Day Shipping | Tapping & Counter Hole Boring Service | Made & Supported in India

Product Details
Dimension	20 mm x 60 mm
Type, Series	V Slot , 20 Series
Max Continuous Length Avbl	3000 mm
Material Grade	6061 T6 or 6063 T6 Aluminium
Finish	Silver Anodised
End Tap Size	M5 thread up to 15mm (₹30/Tap)
Counter Bore Hole Size	ID 5mm, OD 10mm – Centred on the slot ((₹70/Hole) If you want only access hole instead of CB Hole, you can mention in order comments
Cutting Tolerance	+- 0.2 mm
No. of Slots	8 (three on top & bottom each, one on each side)
Slot Width	6.1 mm
Weight/meter

V Slot is an improved form of T Slot Aluminium Extrusion Profiles as it combines functionality of T Slot with added advantage of linear motion. V Slot and T Slot use common hardware like T Nuts, Joining Plates etc.

How to Place Order

Click on the button 'Click to Order', you will be taken (in new tab) to our 'Custom Cut and Machined Extrusion Ordering Tool'
In the tool, select the type of extrusion you want to order
Add details of length, tapping or counter bore holes in the table
Proceed to checkout, you will complete the order within the custom tool
The custom tool is exclusively for extrusion orders. You will have to use the main website for any other products to be ordered.

Shipping and Delivery

Free shipping is applicable where all lengths of an order are up to 1000mm. If any length exceeds 1000mm, we will charge shipping even if the cart shows 'Free Shipping'. In that case, we will send you details of applicable shipping and payment link to complete the order.

All extrusions are shipped through DELHIVERY ground shipping (they are heavy). Shipping time varies between 6-7 working days from shipping date. We request you to be patient in this regard.

The 3DPrintronics Advantage - Services Available

C Beam, V Slot and all related accessories are manufactured in India as per the opensource designs of www.openbuilds.com . We are not affiliated to openbuilds in any manner.
