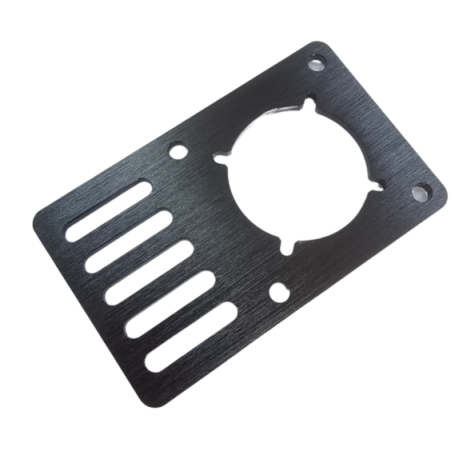

V-Slot Motor Mount Plate - Nema 23 Stepper Motor
Easily mount a NEMA 23 Stepper motor onto any plate or V-Slot Linear Rail with this versatile motor mount
You can also combine this plate with the V-Slot gantry plate to make a great Belt and Pinion System.
Designed for flexibility, it allows for easy tension adjustments and supports various actuator configurations.
Technical Specifications
3D File Download
Click here to download 3d file in step format.
Click here for a quick online 3d view of this file on grabcad.
This Plate Is Compatible With
2) V Slot Nema 23 Linear Actuator (Belt Driven)
What Will You Get
1) Once Peice Nema 23 motor mount plate
