V-Slot Spacer Block

V-Slot Spacer Block

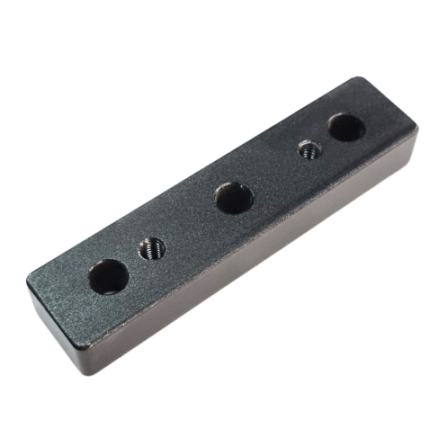

This Spacer Block raises the V-Slot Gantry Plate by 12mm, providing the clearance needed to run transmission components like Belt Drives or Threaded Rods underneath.

It’s an essential accessory for builds that require smooth, unobstructed movement of mechanical parts beneath the gantry plate, ensuring optimal performance in your custom projects.

Features

• Adds transmission clearance
• Pre-Tapped M5 Holes
• Thick and durable construction

Technical Specifications

• Material : 6063-T6 Aluminum
• Finish : Anodized
• Color : Black
• Thickness : 12.7mm
• Size : 95mm x 15.8mm

3D File Download

Click here to download 3d file in step format.

Click here for a quick 3d view of this file on grabcad.

This Plate Can Be Used With

1) V-Slot Universal Gantry Plate

2) Delrin Solid V Wheel Kit For V Slot

3) M5 Ultra Low Profile Screws (25mm)

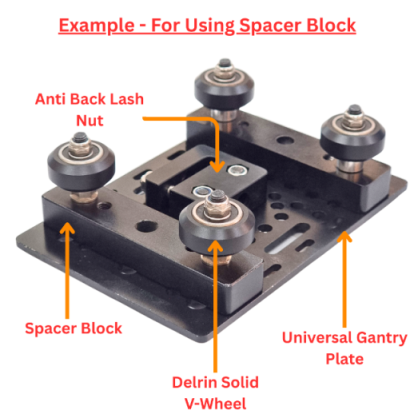

Usage Example

What Will You Get

1) One Piece Spacer Block
