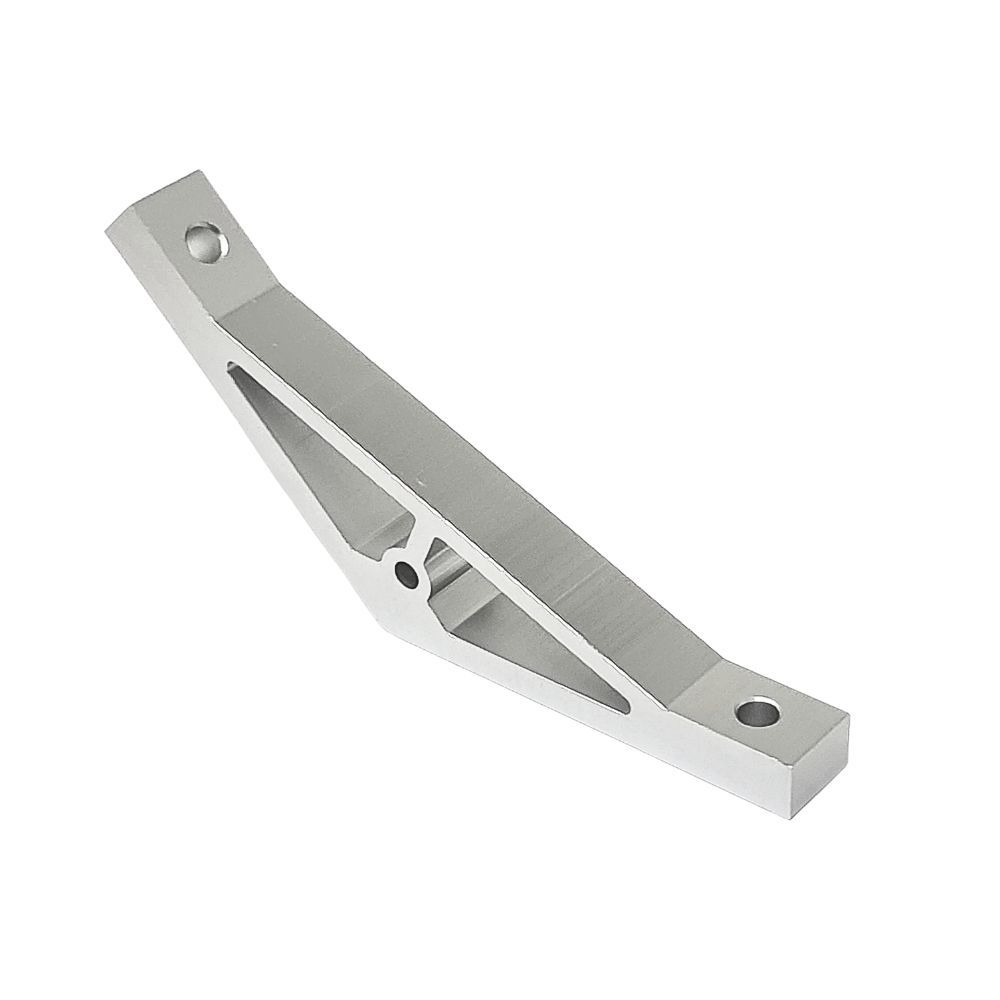

135 Degree Angled Bracket For 2020 T/V Slot

Angled Brackets For 20 Series Extrusions

Extruded brackets for connecting frames at an angle of 135 Degrees.

Technical Data

1) Material : Extruded Aluminium A6N01SS-T5

2) Surface Treatment : Clear anodize

3) Compatibility : For 20 Series

4) Applicable screw : M5 x 12mm (BHCS/SHCS)

5) Number of extrusion connection holes : 02

6) Weight : 48 grams

9) Angle : 45 and 135 degree

Accessories included with these brackets

One set includes - 01 x bracket , 02 x M12 Cap Screws and 02 x Pre Insertion T Nuts

Linked Products

1) Screws - M5 x 12 SHCS or M5 x 12 BHCS

2) T nuts - M5 Drop in T nuts, M5 Spring T Nuts, M5 Pre Insertion T Nuts

3) Profile - V Slot Aluminium Extrusion 2020

Dimensional Drawing for 45 degree bracket

Dimensional Drawing for 135 degree bracket

Disclaimer:

All aluminium accessories sold on our website are designed and tested for compatibility with the aluminium profiles available on our website. We do not guarantee compatibility or fitment of these accessories with aluminium profiles purchased from third-party sources. Any issues arising from the use of third-party profiles are not our responsibility or liability.
