Angled Bracket For 20 Series Extrusions

Angled Brackets For 20 Series Extrusions

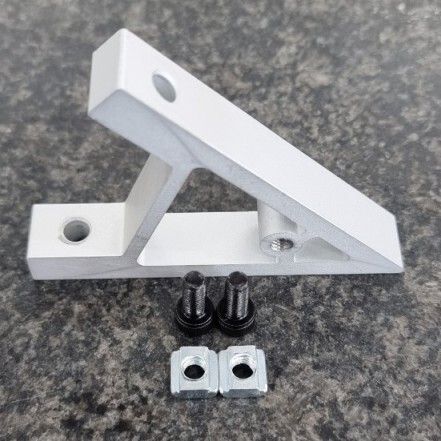

Extruded brackets for connecting frames diagonally.

It can be fixed at 45 degrees and 135 degrees.

Technical Data

1) Material : Extruded Aluminium A6N01SS-T5

2) Surface Treatment : Clear anodize

3) Compatibility : For 20 Series

4) Applicable screw : M5 x 12mm (BHCS/SHCS)

5) Number of extrusion connection holes : 02

6) Weight : 48 grams

9) Angle : 45 and 135 degree

Accessories which can be used with these brackets

One bracket needs - 02 screws and 02 t nuts

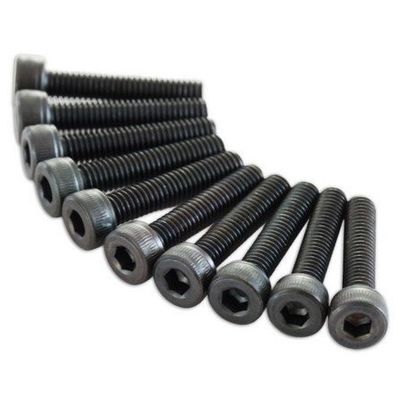

1) Screws - M5 x 12 SHCS or M5 x 12 BHCS

2) T nuts - M5 Drop in T nuts, M5 Spring T Nuts, M5 Pre Insertion T Nuts

3) Profile - V Slot Aluminium Extrusion 2020

Please select angle from the option given on right hand side.

Dimensional Drawing for 45 degree bracket

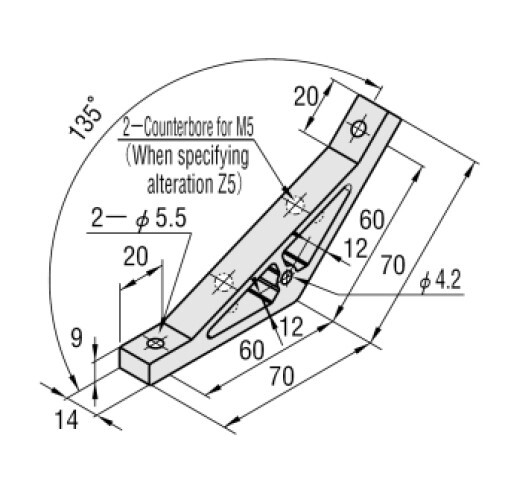

Dimensional Drawing for 135 degree bracket
