C Beam Aluminium Extrusion (Silver)
+5
+4
+3
+2

C Beam Aluminium Extrusion (Silver)

SKU CB-S
₹1,950.00
Length
Please choose
M5 Tap Holes
Please choose
Counter Bore Holes
Please choose
Cut Details
Enter Here
In stock
1
Save this product for later
Share this product with your friends
ShareSharePin it
C Beam Aluminium Extrusion (Silver)
Product Details
Brand: 3DPrintronics
Dispatch Time: 1 to 2 working days
Delivery Time: 5 to 6 working days
Courier Used: Delhivery/Bluedart/Smartr by Road
GST(Tax): 18% on checkout
holes-per-side: 6
type: C Beam
series: 20
color: Silver

C Beam Linear Rail Aluminium Extrusion Profile (Silver)

Free Shipping (only for pcs up to 1000mm, within India) | Free Custom Cutting | Tapping Service Available | Made and Supported in India

Product Details

Dimension

40 mm x 80 mm

Type, Series

C Beam , 20 Series

Max Continuous Length Avbl

3000 mm

Material Grade

6061 T6 or 6063 T6 Aluminium

Finish

Silver Anodised

End Tap Size

M5 thread up to 15mm (₹30/Tap)

Counter Bore Hole Size

ID 5mm, OD 10mm – Centred on the slot (₹70/Hole)

If you want only access hole instead of CB Hole,

you can mention in order comments

Cutting Tolerance

+- 0.2 mm

No. of Slots

10 (two on top, 4 on bottom, and 2 on each side)

Slot Width

6.1 mm

Weight/meter

  • For C Beam Linear Actuators click here.
  • C Beam manufactured by 3DPrintronics in India is based on OpenBuilds C-Beam linear rail aluminium extrusion profile design. It is fully compatible with all V-Slot linear rail profile and accessories as well as all Openbuilds hardware
  • Using C Beam you can make CNC Machines, Linear Actuators, 3D Printers and much more.

How to Place Order

  • Click on the button 'Click to Order', you will be taken (in new tab) to our 'Custom Cut and Machined Extrusion Ordering Tool'
  • In the tool, select the type of extrusion you want to order
  • Add details of length, tapping or counter bore holes in the table
  • Proceed to checkout, you will complete the order within the custom tool
  • The custom tool is exclusively for extrusion orders. You will have to use the main website for any other products to be ordered.

Shipping and Delivery

  • Free shipping is applicable where all lengths of an order are up to 1000mm. If any length exceeds 1000mm, we will charge shipping even if the cart shows 'Free Shipping'. In that case, we will send you details of applicable shipping and payment link to complete the order.
  • All extrusions are shipped through DELHIVERY ground shipping (they are heavy). Shipping time varies between 6-7 working days from shipping date. We request you to be patient in this regard.

The 3DPrintronics Advantage - Services Available



C Beam, V Slot and all related accessories are manufactured in India as per the opensource designs of www.openbuilds.com . We are not affiliated to openbuilds in any manner.

Show More
You May Also Like

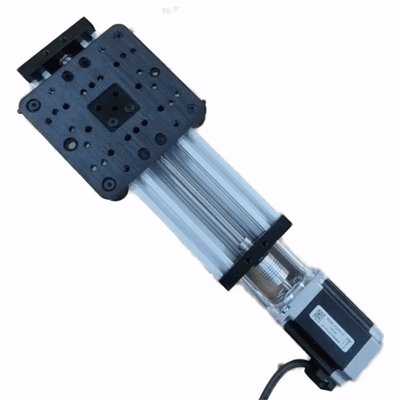

C Beam Linear Actuator XLarge Gantry
C Beam Linear Actuator XLarge Gantry
C Beam Linear Actuator XLarge Gantry
₹4,570.00

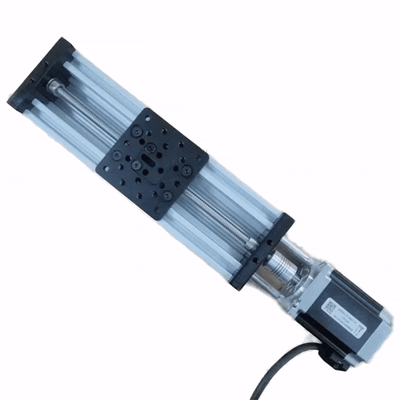

C Beam Linear Actuator
C Beam Linear Actuator
C Beam Linear Actuator
₹4,690.00

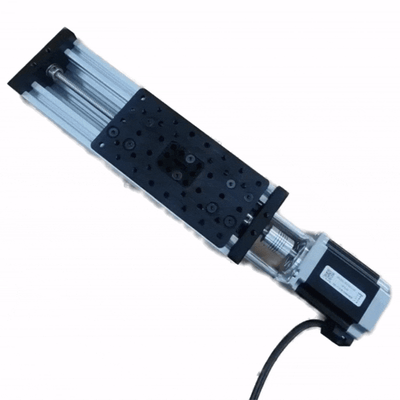

C Beam Linear Actuator Double Wide Gantry
C Beam Linear Actuator Double Wide Gantry
C Beam Linear Actuator Double Wide Gantry
₹4,570.00

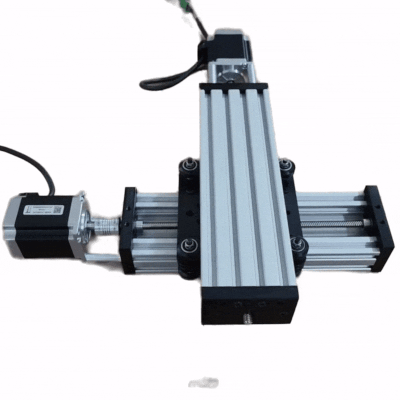

C Beam XLarge X/Y Table
