Closed Loop Nema 23 Stepper Motor - CSM22323 - Leadshine
Model # CSM22323
The CS-M series closed loop stepper motors are integrated with a 1,000 line (4,000 counts/revolution) or 5,000 line 20,000 counts/revolution） differential ended rotary encoder. Build with high quality materials including bearings and shaft made by famous manufacturers, this closed loop stepper motor can be adopted in many industrial applications with excellence performance such as high precision, low motor heating, and low vibration.
Features of Leadshine CS-M Series-Closed Loop Stepper Motor-CS-M22323:
| Model | CS-M22323 |
| Series | CS-M |
| Phase | 2 phase |
| Frame Size (NEMA) | 23 |
| Length (mm) | 96mm/3.78inch |
| Holding Torque (N.m) | 2.3N.m/23kgcm |
| Phase Current (A) | 5A |
| Shaft Diameter (mm) | 8 / 0.315 inch |
| Center Diameter (mm) | 38.1 |
| IP Rate | IP40 |
| Characteristics | Standard |
| Resistance (Ohm) | 0.38 |
| Inductance (mH) | 1.75 |
| Inertia (kg/cm2) | 0.48 |
| Weight（kg） | 1.3 |
Dimensional Drawing
Speed Torque Curve
Download Data Sheet
Click here for Data Sheet.
Accessories (Optional Parts)
1) Closed Loop Stepper Drive CS-D508 - Leadshine

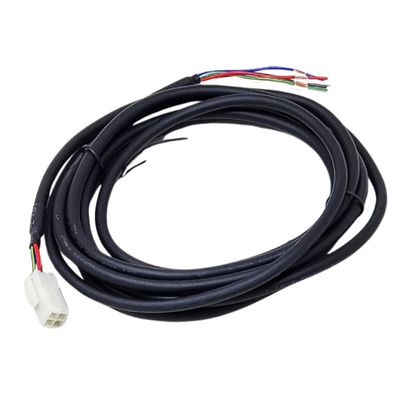

2) Motor Cable For CS-M Series Closed Loop Stepper Motors
4) Power Supply - LRS 350 Watts, 24VDC, 14.6 Amps
Please buy responsibly and read the specifications carefully before making the purchase.
Responsibility to use this product lies on the user. We will not able to provide assistance with respect to its usage and installation.
