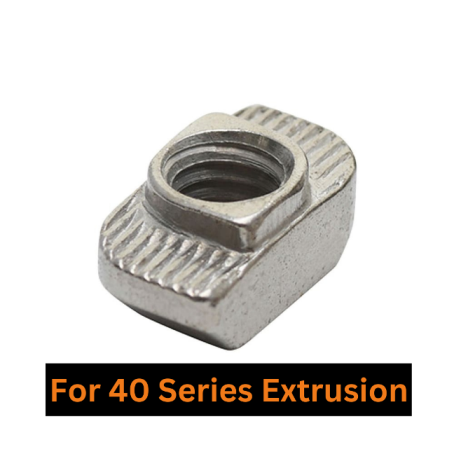

Drop In T Nut for 40 Series Aluminium Extrusions

Drop in T Nut for 40 Series Aluminium Extrusions

• Compatible With : 4040, 4080, 40120, 6060 Aluminium Extrusion
• Thread Sizes Available : M3, M4, M5, M6
• Material : Carbon Steel
• Surface Treatment : Nickel Plating
• Use these corner brackets with the T nuts
  • Corner Bracket for T Slot (4040)
  • Corner Bracket for T Slot (6060)
• Use these button head or socket head cap screws with these T nuts
  • M5 Button Head Cap Screw (Select length 16mm)
  • M6 Button Head Cap Screw (Select length 16mm)
  • M8 Button Head Cap Screw (Select length 16mm)

Dimensions

3D/ Step File

Use this 3d file directly in your CAD design & get rid off the guess work.

Click on the image below to download the 3D File.

How to use best?

• These are drop in T nuts. They can be used while doing assembly or can be dropped in to the slot any time after completion of assembly (best suited for this).

Disclaimer:

All aluminium accessories sold on our website are designed and tested for compatibility with the aluminium profiles available on our website. We do not guarantee compatibility or fitment of these accessories with aluminium profiles purchased from third-party sources. Any issues arising from the use of third-party profiles are not our responsibility or liability.
