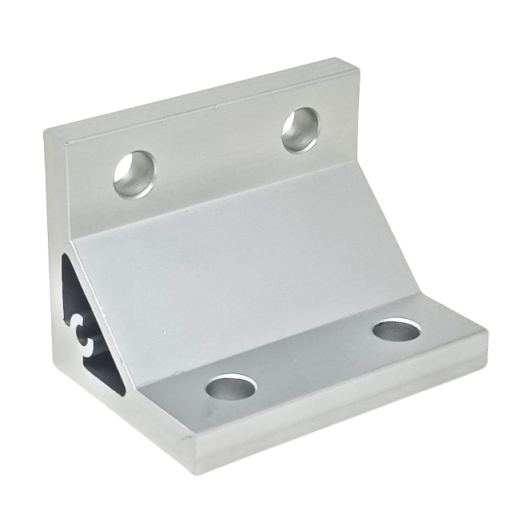

Extruded Bracket For 80 Series T Slot

Extruded Bracket For 8080

It is a bracket that can connect a 2-row groove type frame with a single bracket.

Technical Specifications

1) Weight : 154gms

2) Applicable Screw : M8 x 20mm (SHCS/BHCS)

3) Allowable Load : 3087N

4) Bracket Type : Extruded

5) Surface Treatment : Clear anodized

6) Material : A6N01SS-T5

Dimensional Drawing

Compatible Accessories Which Can be Used With This Bracket

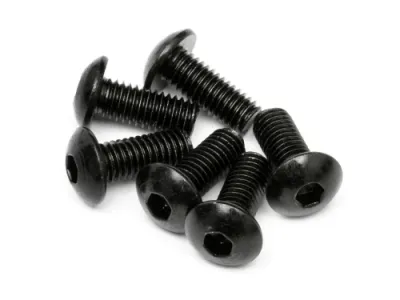

1) Screws for this bracket - M8 x 20mm SHCS, M8 x 20mm BHCS

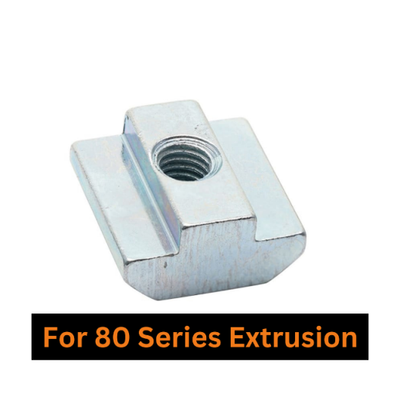

2) Drop in T nuts for 80 Series Extrusions - M8 Thread

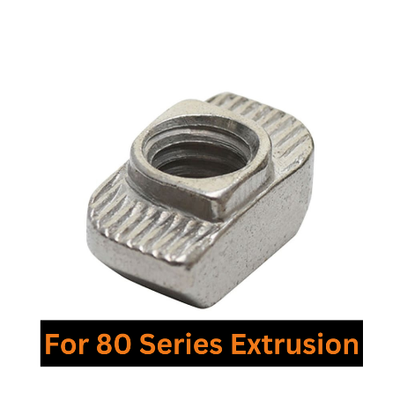

3) Spring T nuts for 80 Series Extrusions - M8 Thread

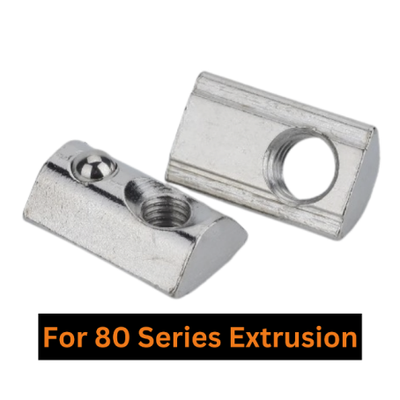

4) Pre Insertion T nuts for 80 Series Extrusions - M8 Thread

3D File / Step File Download

Use this step file directly in your CAD design and get rid off the guess work.

Click on the image below to download.
