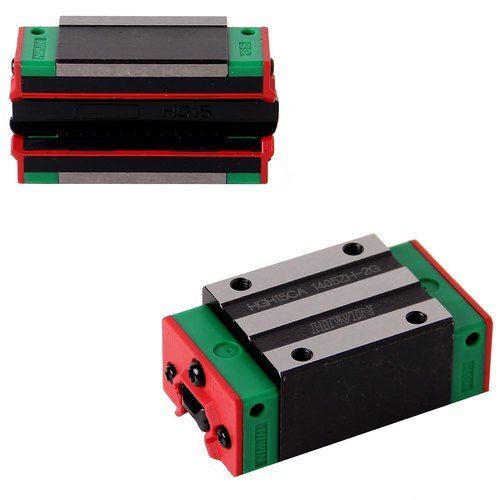

HIWIN HG Series Linear Guide Blocks (HG15 – HG65)

This listing is for the linear guide block only

No rails are included with this listing.

Rails must be purchased separately if required.

Click here to buy the Rails

Product Overview

HIWIN HG Series linear guide blocks are designed for high load capacity, high rigidity, and smooth linear motion in CNC machines, automation systems, and precision machinery. These blocks are compatible with HIWIN HG series linear guide rails and provide excellent accuracy, durability, and long service life.

The HG series uses a four-row circular arc contact design, allowing the block to support loads in all directions (up, down, left, and right) while maintaining high rigidity and precision.

---

Key Features

✔ Smooth and precise linear motion
✔ Four-row circular arc contact design
✔ High rigidity and stability
✔ Long service life with low friction
✔ Compatible with HIWIN HG series rails

---

---

Available Sizes

This listing includes HG series blocks only in the following sizes:

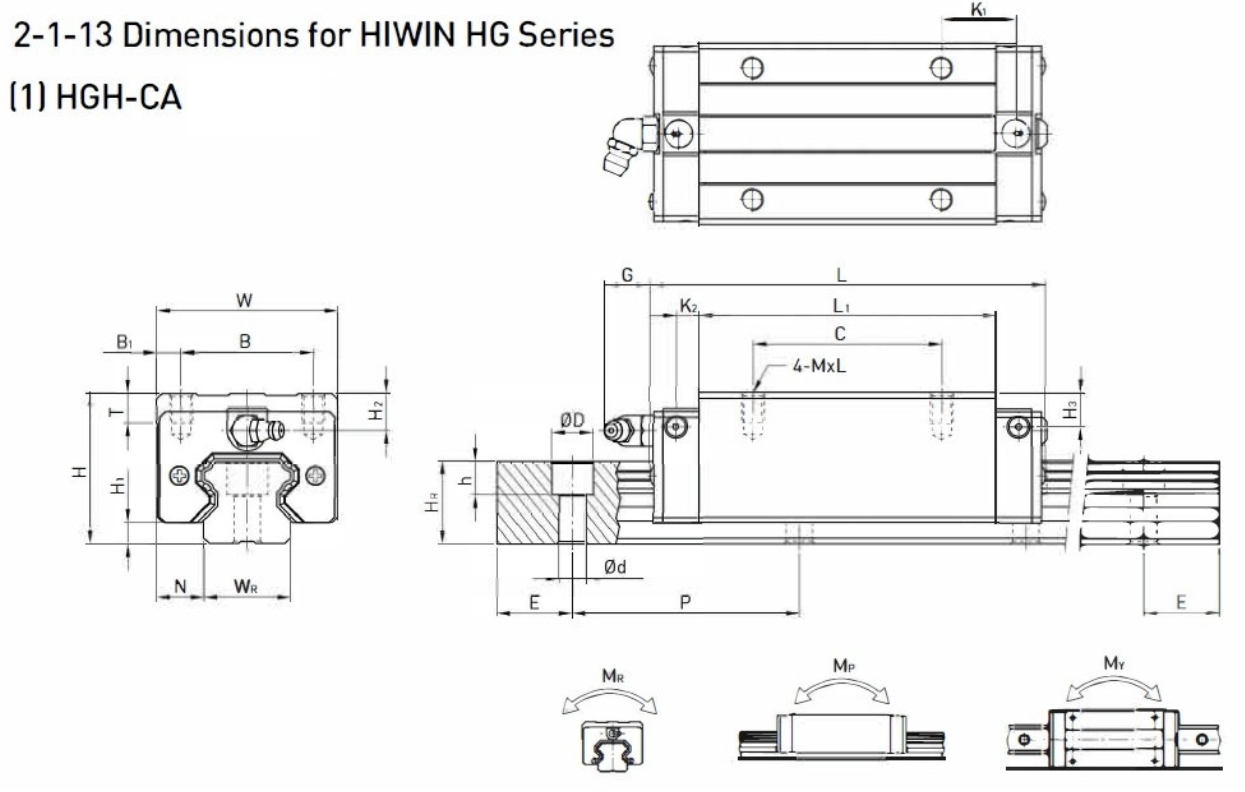

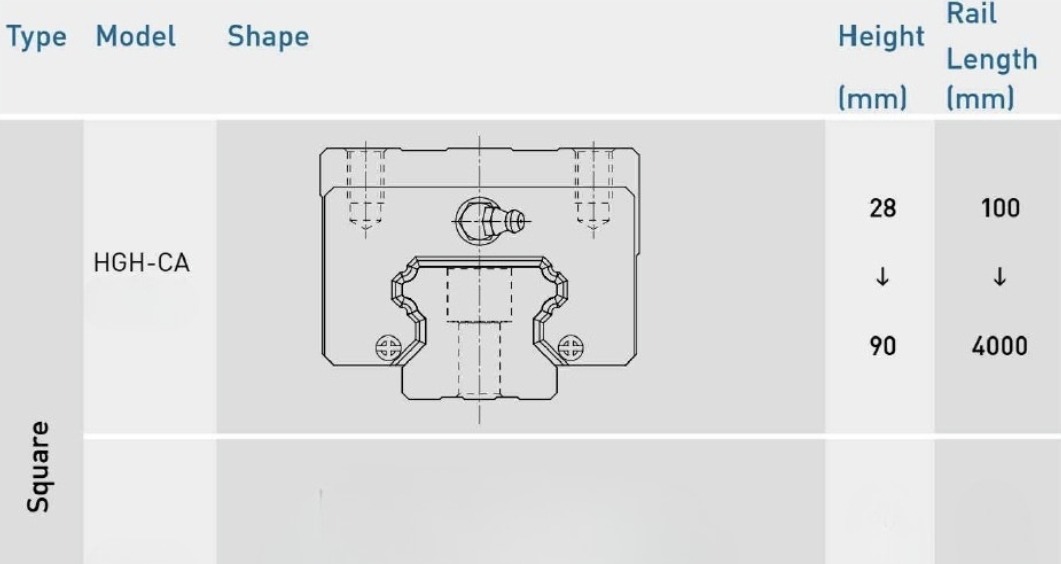

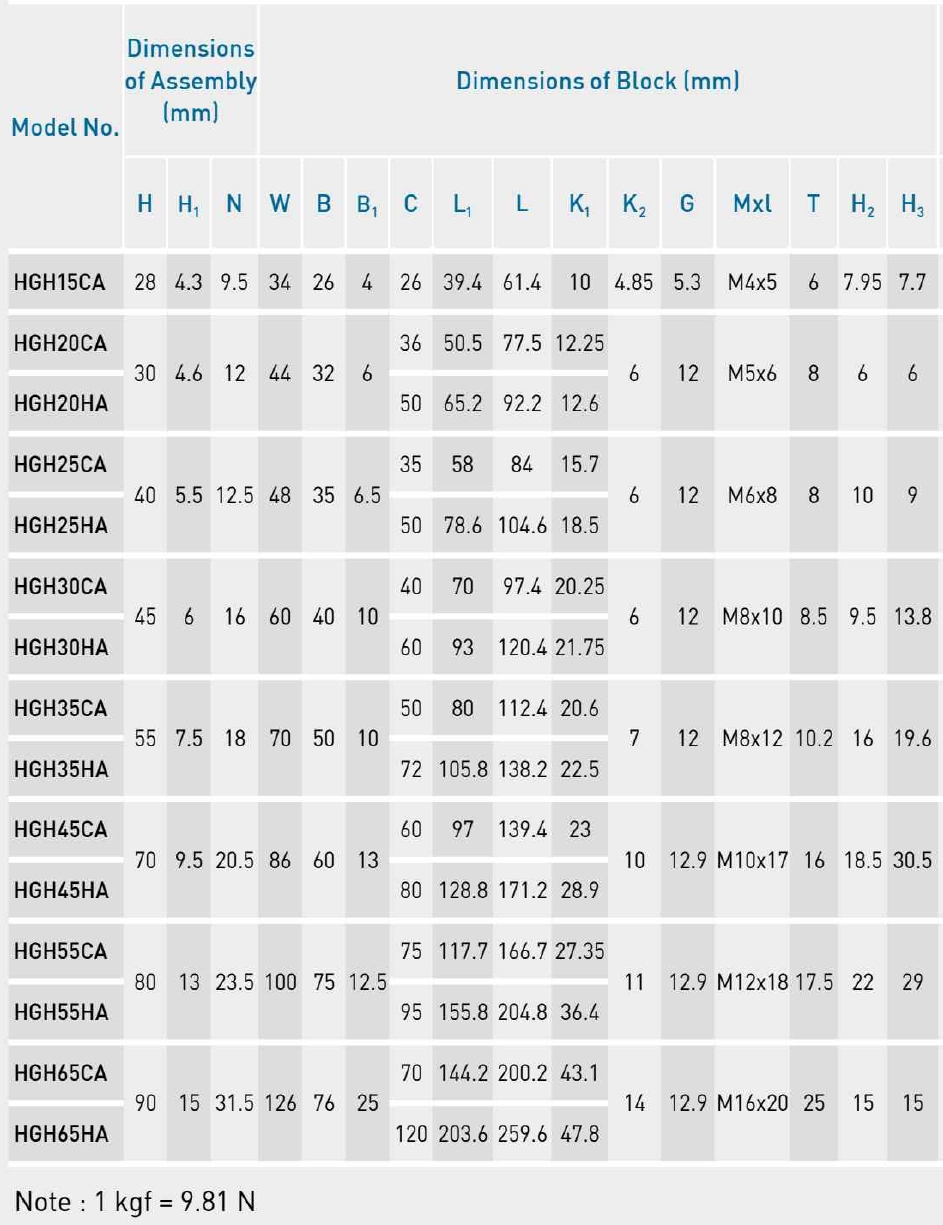

SQUARE Type (HGH)

HG = HG Series

H = Square Type

Model Size = 15, 20, 25, 30, 35, 45, 55, 65

CA = C - Heavy Load, A - Block Mounting Type From Top

ZAC = ZA - Medium Pre Load (0.05C ~ 0.07C), C - Normal Precision

• HGH15 CA Block
• HGH20 CA Block
• HGH25 CA Block
• HGH30 CA Block
• HGH35 CA ZAC Block
• HGH45 CA ZAC Block
• HGH55 CA ZAC Block
• HGH65 CA ZAC Block

Mounting of Block From Top

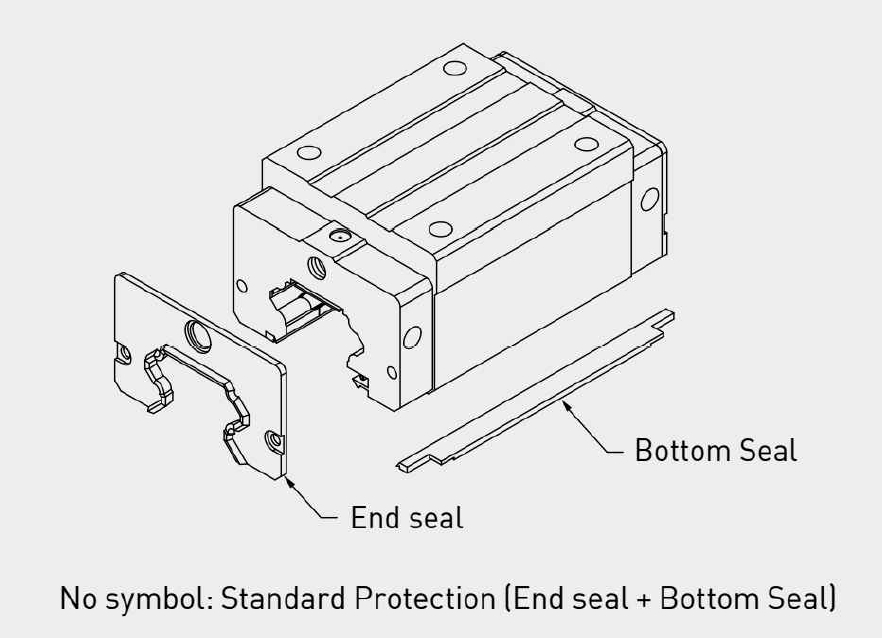

Dust Protection Provided In This Block - Standard Protection

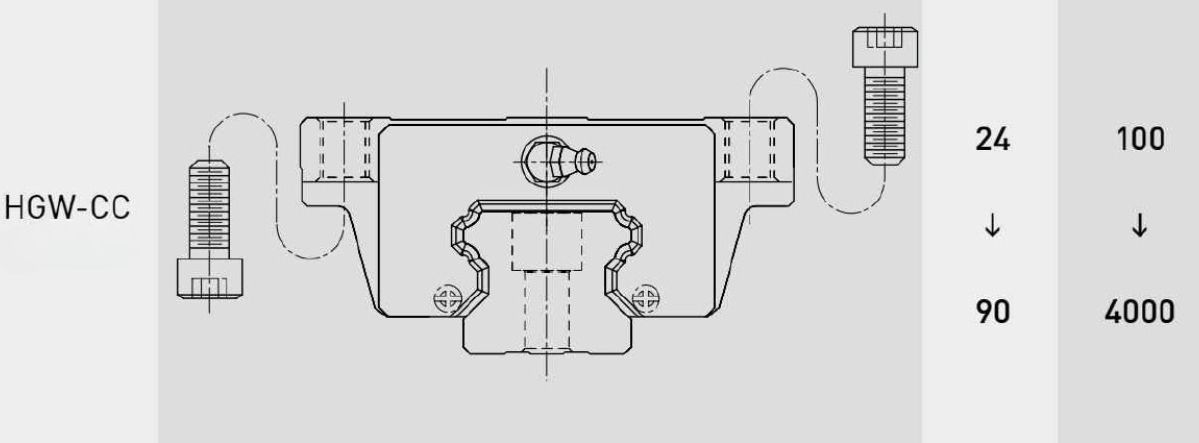

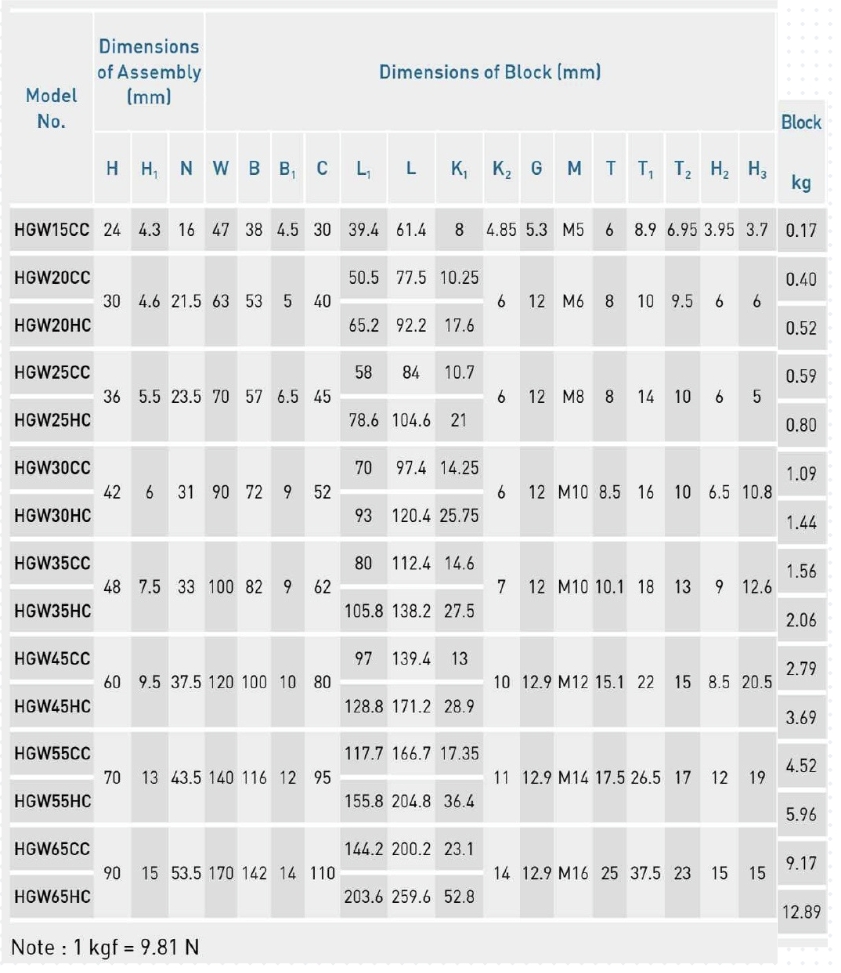

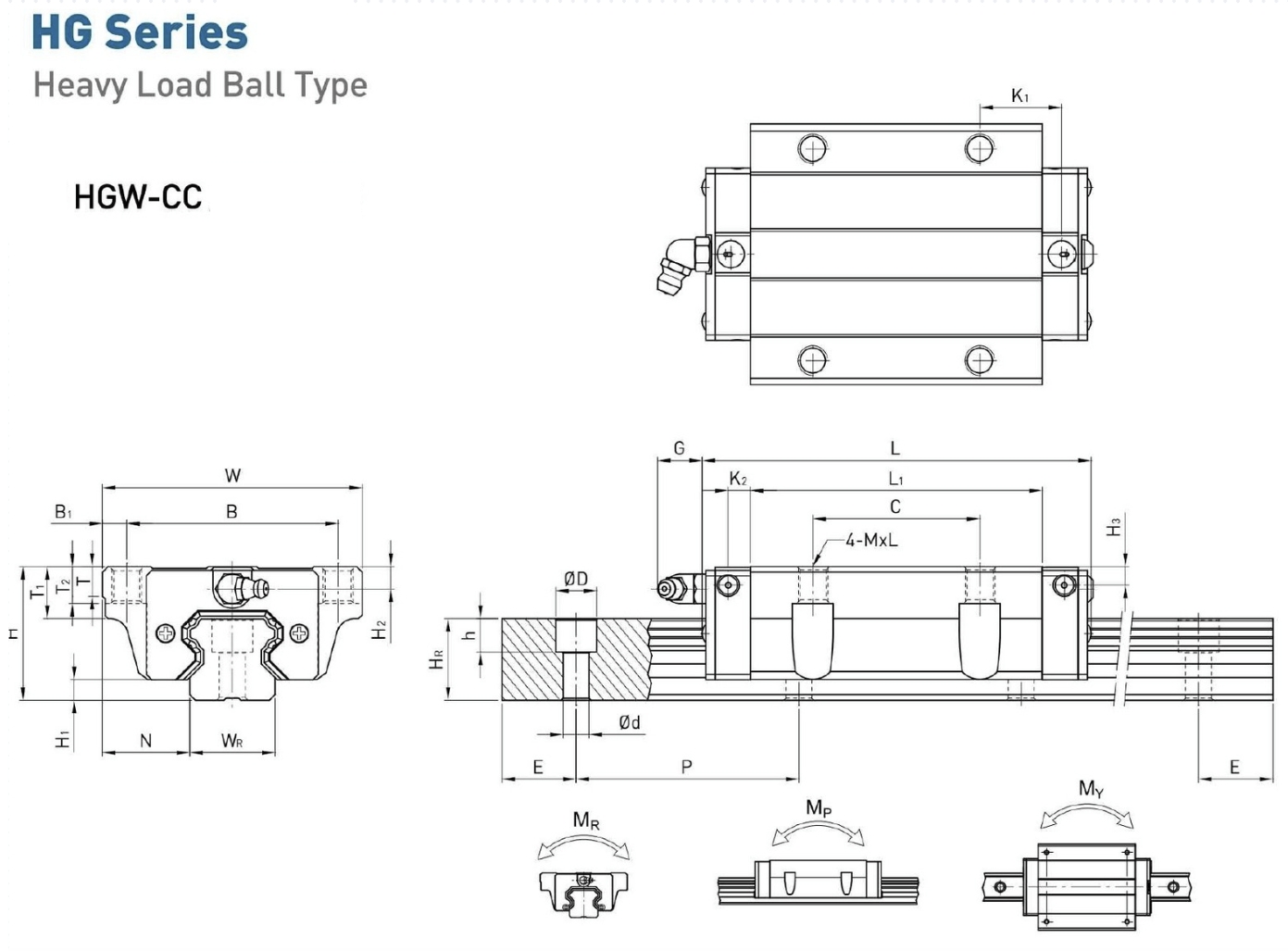

FLANGE Type (HGW)

HG = HG Series

W = Flange Type

Model Size = 15, 20, 25, 30, 35, 45, 55, 65

Z0C = Z0 - Light Pre Load (0 ~ 0.02C), C - Normal Precision

ZAC = ZA - Medium Pre Load (0.05C ~ 0.07C), C - Normal Precision

CC = C - Heavy Load, C - Block Mounting Type From Top or Bottom

• HGW15 Z0C Block
• HGW20 CC Block
• HGW25 CC Block
• HGW30 CC ZAC Block
• HGW35 CC Block
• HGW45 CC Block
• HGW55 CC Block
• HGW65 CC Block

Block Mounting Top / Bottom

Compatibility

These blocks are designed to work with HIWIN HG series linear guide rails of the corresponding size:

• HG15 Block → HG15 Rail
• HG20 Block → HG20 Rail
• HG25 Block → HG25 Rail
• HG30 Block → HG30 Rail
• HG35 Block → HG35 Rail
• HG45 Block → HG45 Rail
• HG55 Block → HG55 Rail
• HG65 Block → HG65 Rail

---

Applications

• CNC Milling Machines
• CNC Routers
• 3D Printers
• Laser Cutting Machines
• Robotics and Automation
• Pick-and-Place Systems
• Semiconductor Equipment
• Precision Inspection Machines
• Woodworking Machines
• Industrial Automation Systems

---

Why Choose HIWIN HG Series

✔ High precision and smooth motion
✔ Heavy load capability
✔ Long operating life
✔ Low friction movement
✔ Reliable performance for industrial machines

What Will You Get

HIWIN HG Series Linear Guide Block (as per selected size, type & quantity )

Linear guide rail is NOT included in this listing. Rails must be purchased separately.
