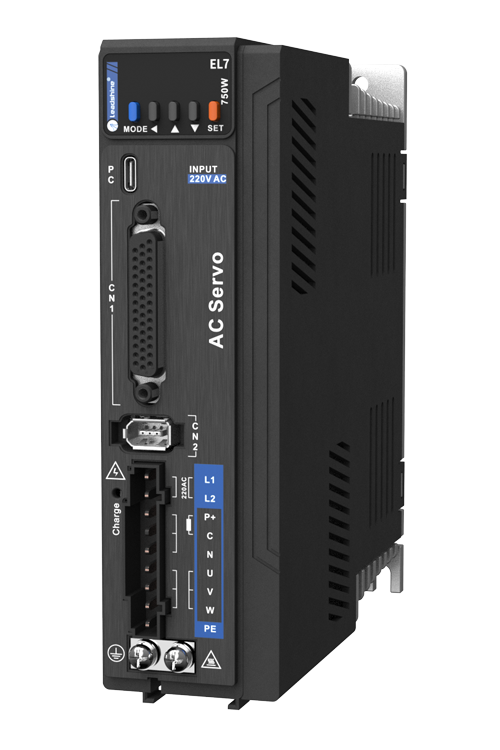

EL7-RS1000P AC Servo Drive

The Leadshine EL7-RS1000P is a high-performance 1000W AC servo drive designed for precision motion control applications. Featuring Pulse/Direction and Modbus RTU communication, it delivers fast response, smooth operation, and reliable performance for CNC machines, robotics, packaging equipment, and industrial automation systems.

The Leadshine EL7-RS1000P is part of the advanced EL7 servo system family, offering exceptional positioning accuracy, dynamic response, and stability. Designed to work seamlessly with Leadshine ELM1 and ELM2 servo motors, this compact servo drive provides easy integration with CNC controllers, PLCs, and motion control systems.

With advanced auto-tuning capabilities, vibration suppression, and high-speed response, the EL7-RS750P helps improve machine performance while reducing setup time and maintenance requirements.

EL7-RS series AC Servo Drive is equipped with easy servo tuning (One-click Tuning/ Single Parameter Tuning), Zero Tracking Control (ZTC), vibration suppression and many more. This AC servo drive series also comes with new AC servo motors with 23-bit optical/magnetic encoder which offers better accuracy and stability.

Technical Specifications

Model	EL7-RS1000P
Input Voltage	220VAC 1ph
Rated Power (W)	1000
Rated Current (Arms)	7
Peak Current (Arms)	18.7
Command Source	Modbus RTU/Pulse+Direction/Analogue
# of Digital Inputs	8
# of Digital Outputs	5
# of Analog Inputs	2
# of Analog Outputs	1

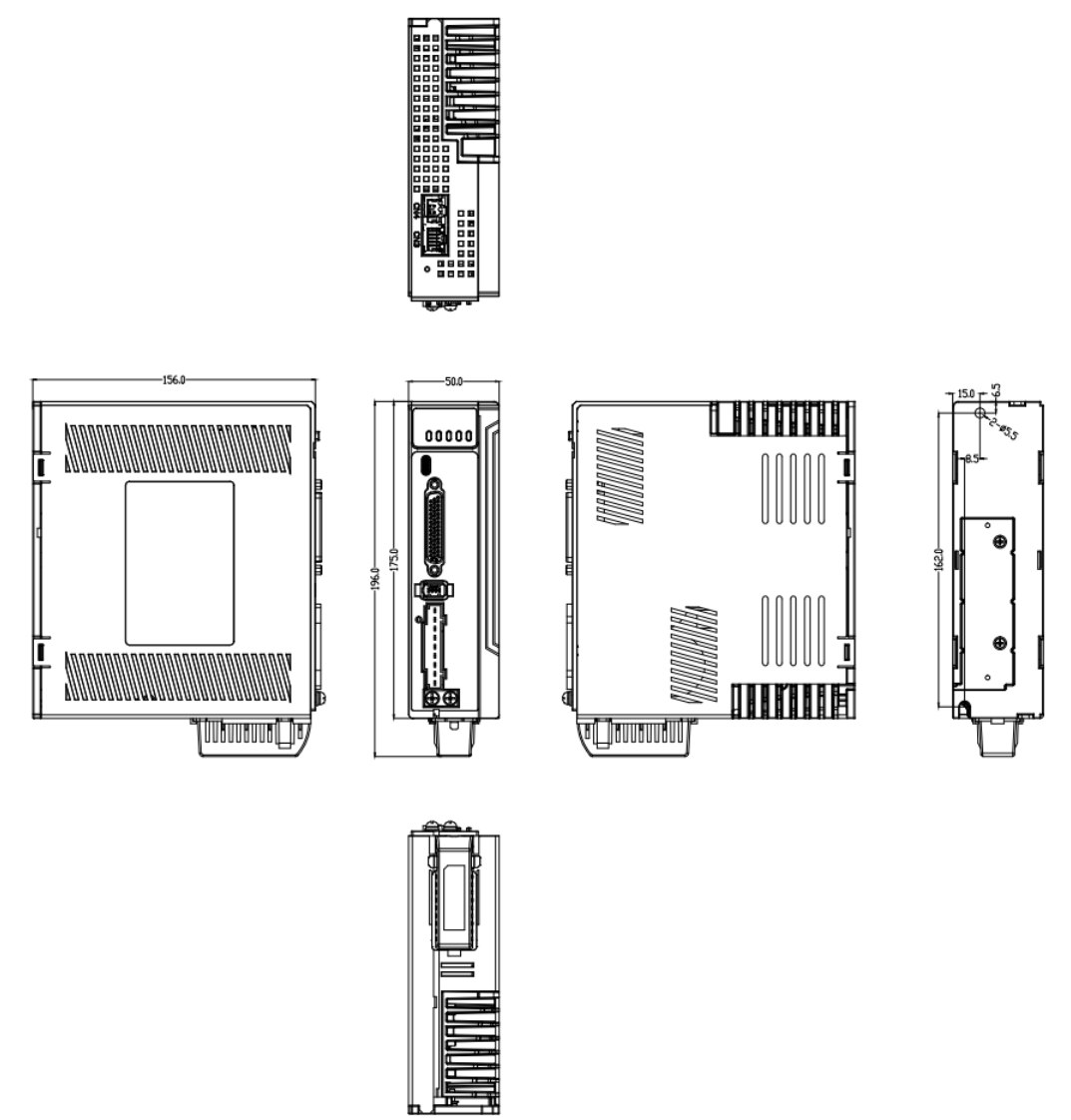

Mechanical

Download Driver Manual - Click Here

Download 3D File in Step Format - Click Here

Applications

• CNC Routers
• Laser Cutting & Engraving Machines
• Pick & Place Machines
• Packaging Equipment
• Textile Machinery
• Semiconductor Equipment
• Material Handling Systems
• Industrial Automation
• Robotics & Motion Control
• Conveyor Systems

Compatible Servo Motors

The EL7-RS1000P servo drive is designed for high-performance 1kW AC servo systems and delivers precise motion control, fast response, and excellent stability for demanding industrial applications. For optimal performance and reliability, pair the drive with a matching 1000W Leadshine servo motor.

Compatible Motor Model	Power Rating	Frame Size	Compatibility
ELM1H-1000MA80F	1000W	80mm	✅ Fully Compatible
ELM1H-1000MA80E	1000W	80mm	✅ Fully Compatible
ELM2H-1000LA80F	1000W	80mm	✅ Fully Compatible
ELM2H-1000LA80E	1000W	80mm	✅ Fully Compatible

Recommended Servo Motor Kit

EL7-RS1000P + ELM1H-1000MA80F

Ideal for:

• Heavy-Duty CNC Routers
• Industrial Automation Systems
• Packaging Machinery
• Material Handling Equipment
• Conveyor Systems
• Woodworking Machines
• High-Inertia Motion Applications
