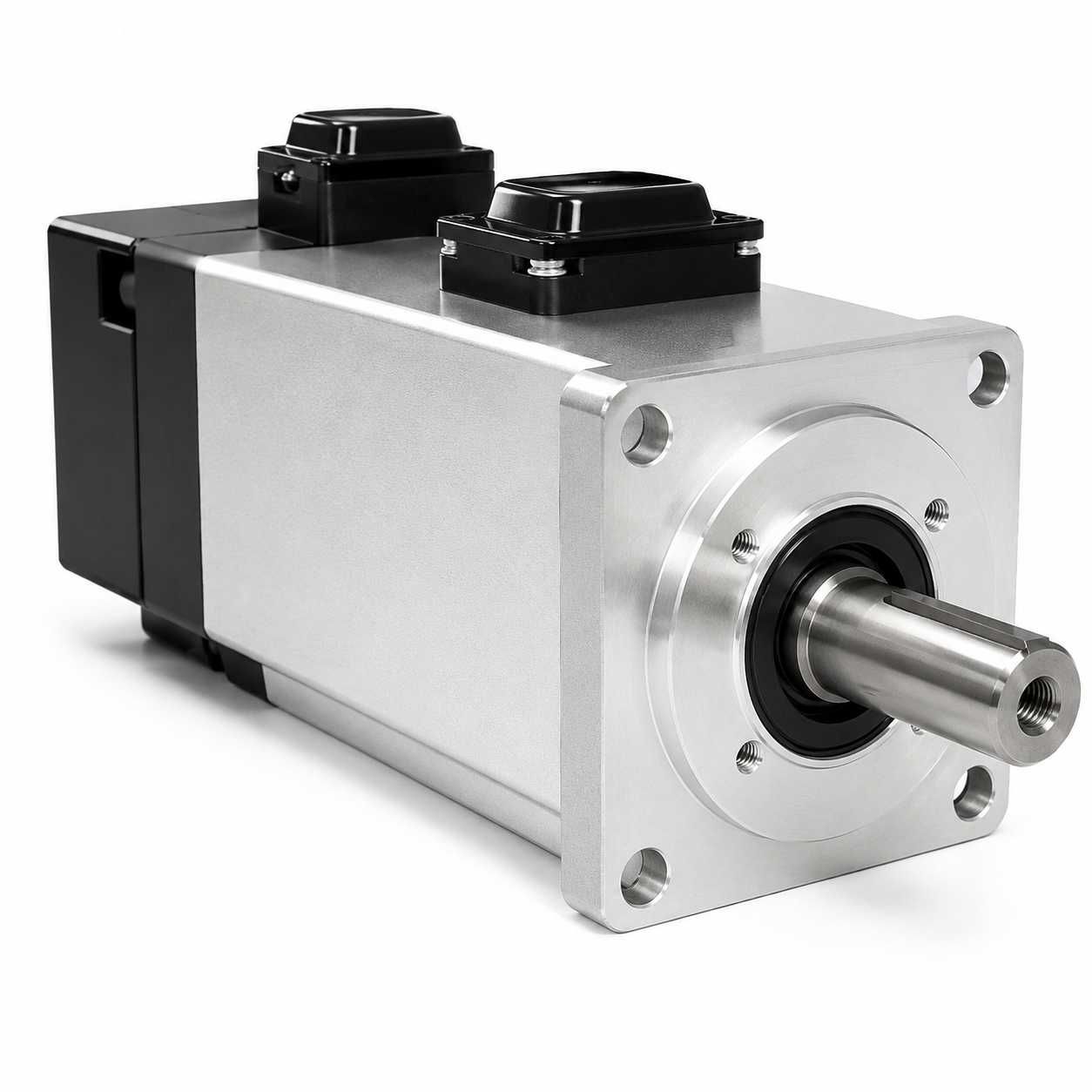

ELM1 Series Servo Motor - ELM1H-0750MA80F

High-performance 750W AC servo motor designed for CNC machines, laser systems, industrial automation, robotics, packaging equipment, and motion control applications. Featuring a high-resolution 23-bit magnetic encoder, compact 80mm frame size, and excellent torque performance, the ELM1H-0750MA80F delivers precise positioning, smooth operation, and reliable long-term performance.

These servo motors use rare earth neodymium-iron-boron permanent magnet rotors, provide features of high torque density, high peak torques, low noise, low temperature rising, lower current consumption. The motors power range from 50W to 1000W, frame size range from 40mm to 80mm.

Technical Specifications

Model	ELM1H-0750MA80F
Frame Size (mm)	80
Rated Voltage (Vac)	220
Rated Power (W)	750
Rated Torque (N.m)	2.39
Peak Torque (N.m)	7.17
Rated Speed (rpm)	3000
Peak Speed (rpm)	6000
Rated Current (Amp)	4.1
Peak Current (Amp)	15.4
Torque Constant (N.m/Amp)	0.645
Back EMF Constant (V/krpm)	39
Resistance (Ω)	1.7
Inductance (mH)	8
Inertia (kg*m2*10-4)	1.5
Poles	10
Encoder Type	23bit magnetic
IP Rating	IP67
Weight (Kg)	2.12

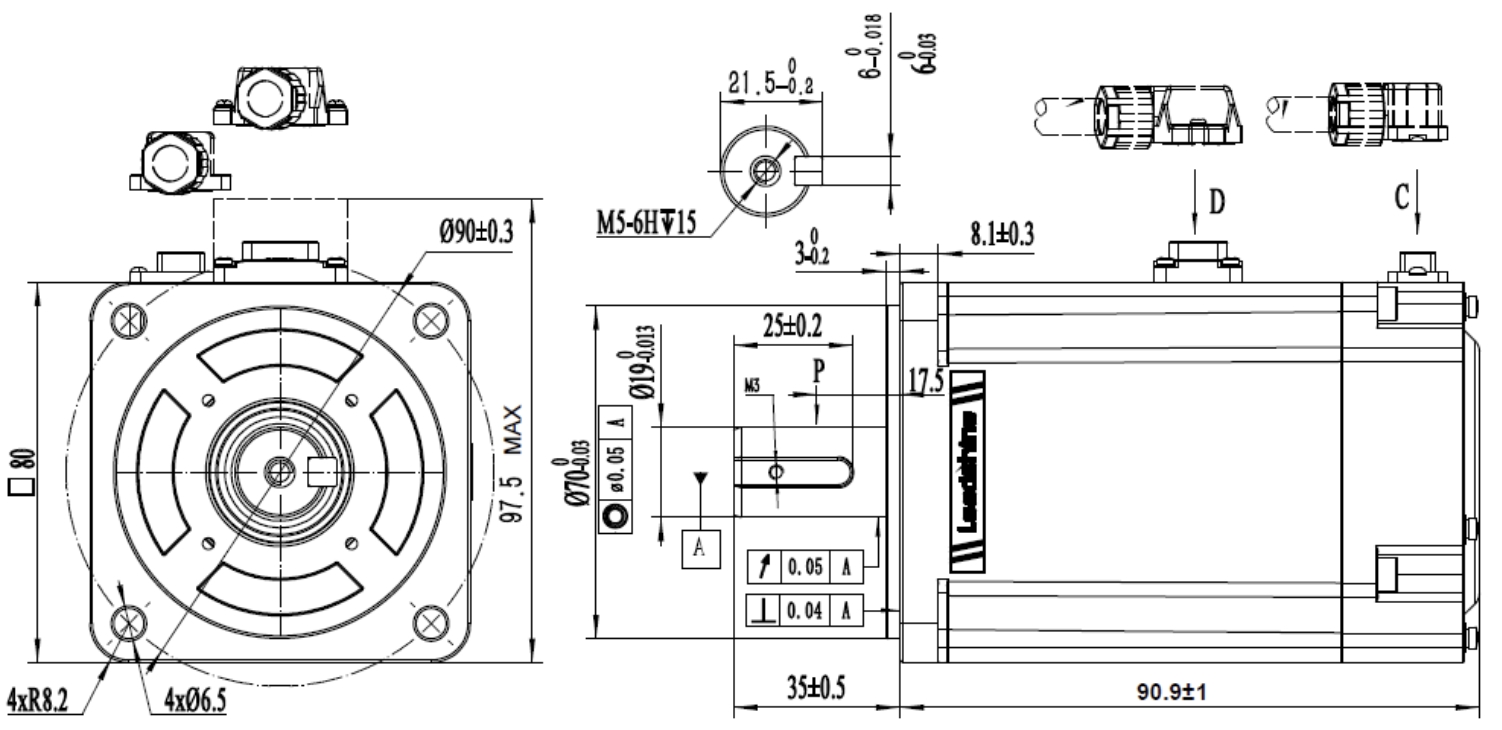

Mechanical

Speed-Torque Curve

Data Sheet - Click Here

3D File in Step Format - Click Here

Recommended Servo Drives

The ELM1H-0750MA80F servo motor is engineered to work with Leadshine EL7 Series servo drives, delivering excellent positioning accuracy, fast dynamic response, and reliable industrial performance. For optimal operation, pair the motor with a servo drive of the same power rating.

Recommended Servo Drive

EL7-RS750P + ELM1H-0750MA80F

A versatile servo solution ideal for:

• CNC Routers
• Laser Cutting & Engraving Machines
• Packaging Equipment
• Pick & Place Systems
• Industrial Automation
• Material Handling Equipment

EtherCAT Automation Solution

EL7-EC750N + ELM1H-0750MA80F

Recommended for:

• PLC-Based Automation Systems
• Multi-Axis Motion Control
• Robotics Applications
• Synchronized Motion Systems
• Advanced Manufacturing Equipment

Note: The ELM1H-0750MA80F is a 750W servo motor and is best paired with a 750W servo drive.

The EL7-RS750P is the most popular choice for CNC, laser, and industrial automation applications due to its ease of integration, Pulse/Direction control, and Modbus RTU communication.
