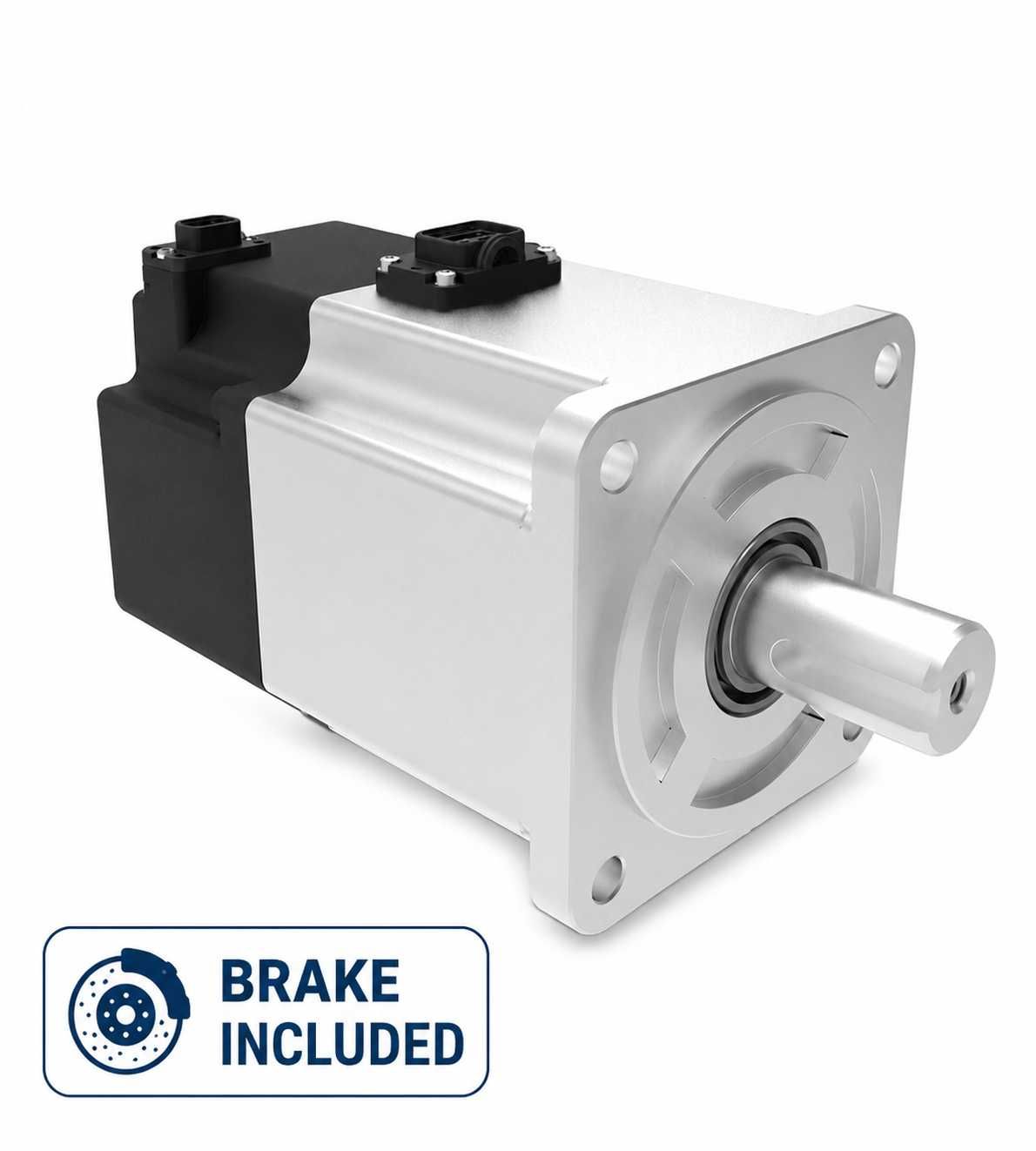

ELM1 Series Servo Motor - ELM1H-1000MA80E (With Brakes)

⭐ Built-In Electromagnetic Brake for Safe Vertical Axis Operation and Load Holding

The Leadshine ELM1H-1000MA80E is a premium 1000W AC servo motor featuring an integrated electromagnetic holding brake and a high-resolution 23-bit absolute encoder. Designed for CNC machines, robotics, vertical axis applications, and industrial automation, it delivers exceptional positioning accuracy, high torque, and reliable load holding during power loss or emergency stops.

These servo motors use rare earth neodymium-iron-boron permanent magnet rotors, provide features of high torque density, high peak torques, low noise, low temperature rising, lower current consumption. The motors power range from 50W to 1000W, frame size range from 40mm to 80mm.

Technical Specifications

Model	ELM1H-1000MA80E
Frame Size (mm)	80
Rated Voltage (Vac)	220
Rated Power (W)	1000
Rated Torque (N.m)	3.18
Peak Torque (N.m)	9.54
Rated Speed (rpm)	3000
Peak Speed (rpm)	6000
Rated Current (Amp)	5.7
Peak Current (Amp)	21
Torque Constant (N.m/Amp)	0.56
Back EMF Constant (V/krpm)	38.3
Resistance (Ω)	1.08
Inductance (mH)	5.6
Inertia (kg*m2*10-4)	2.15
Poles	10
Encoder Type	23bit magnetic
IP Rating	IP67
Weight (Kg)	3.4

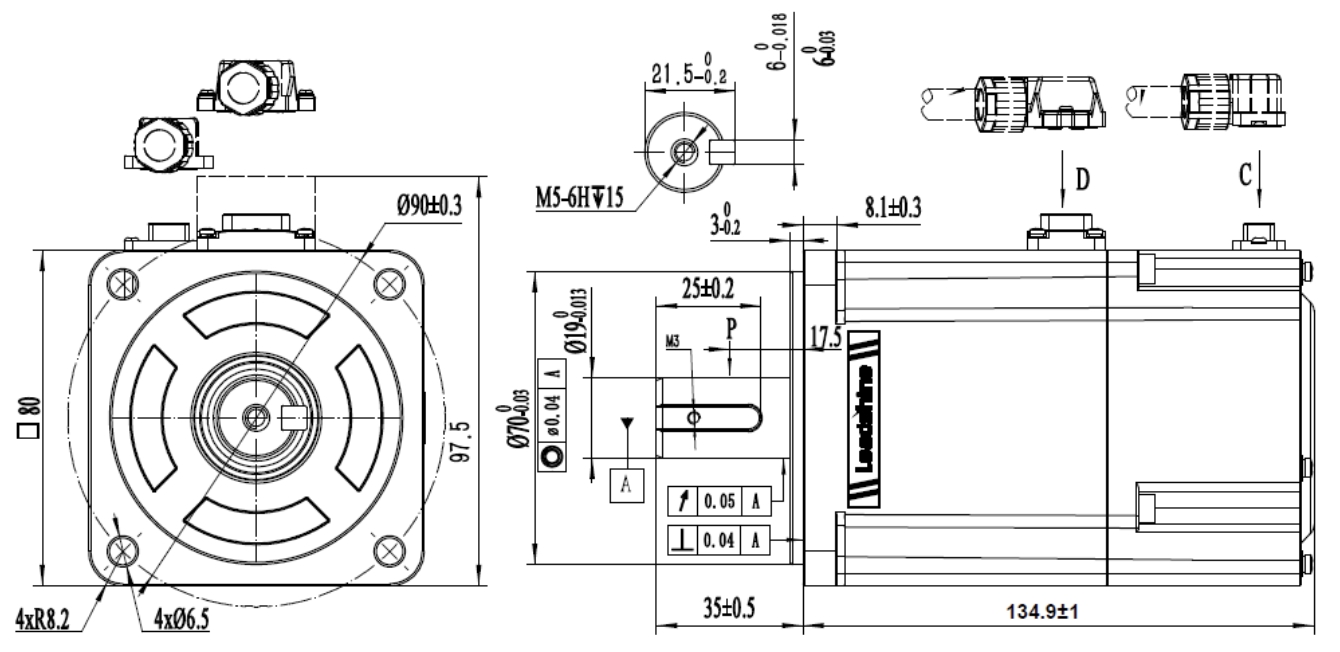

Mechanical

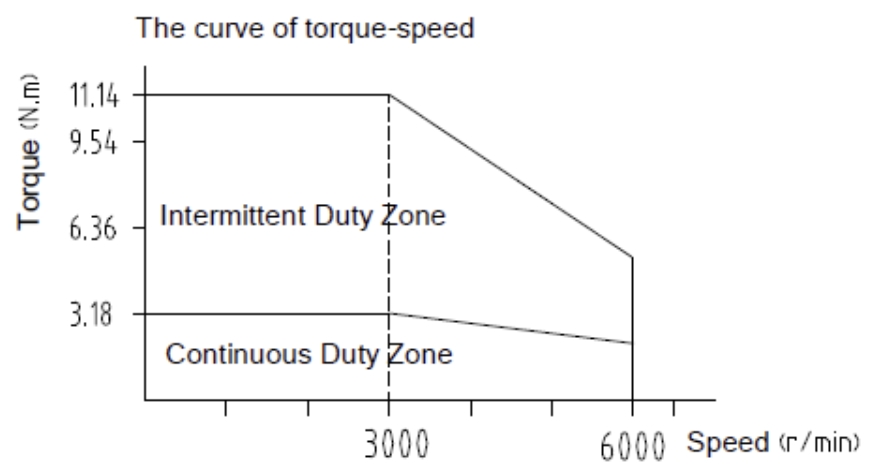

Speed-Torque Curve

Data Sheet - Click Here

3D File in Step Format - Click Here

Why Choose the Brake Version?

Integrated Electromagnetic Brake

The ELM1H-1000MA80E features a built-in electromagnetic holding brake that helps maintain motor position when power is removed.

Key Benefits:

• Prevents axis dropping during power failure
• Ideal for vertical Z-axis applications
• Improves machine safety
• Provides secure load holding when the servo is disabled
• Reduces the need for external braking mechanisms

Recommended Applications for Brake Motors

✔ CNC Router Z-Axis
✔ Pick & Place Machines
✔ Vertical Linear Actuators
✔ Industrial Lifting Systems
✔ Robotics & Automation Equipment
✔ Packaging Machinery
✔ Material Handling Systems

Recommended Servo Drives

The ELM1H-1000MA80E is a premium 1kW AC servo motor featuring an integrated electromagnetic holding brake and a high-resolution 23-bit absolute encoder. For optimal performance, positioning accuracy, and reliable load holding, it should be paired with a compatible 1kW Leadshine servo drive.

EL7-RS1000P + ELM1H-1000MA80E

A powerful servo solution designed for applications requiring both precision motion control and secure load holding.

Ideal for:

• CNC Router Z-Axis
• CNC Milling Machines
• Vertical Motion Systems
• Industrial Robotics
• Packaging Machinery
• Material Handling Equipment
• Automated Production Lines
• Lifting & Positioning Systems

Note: The ELM1H-1000MA80E is a 1000W servo motor and is best paired with a 1000W servo drive.

The EL7-RS1000P is the most popular choice for CNC, laser, and industrial automation applications due to its ease of integration, Pulse/Direction control, and Modbus RTU communication.
