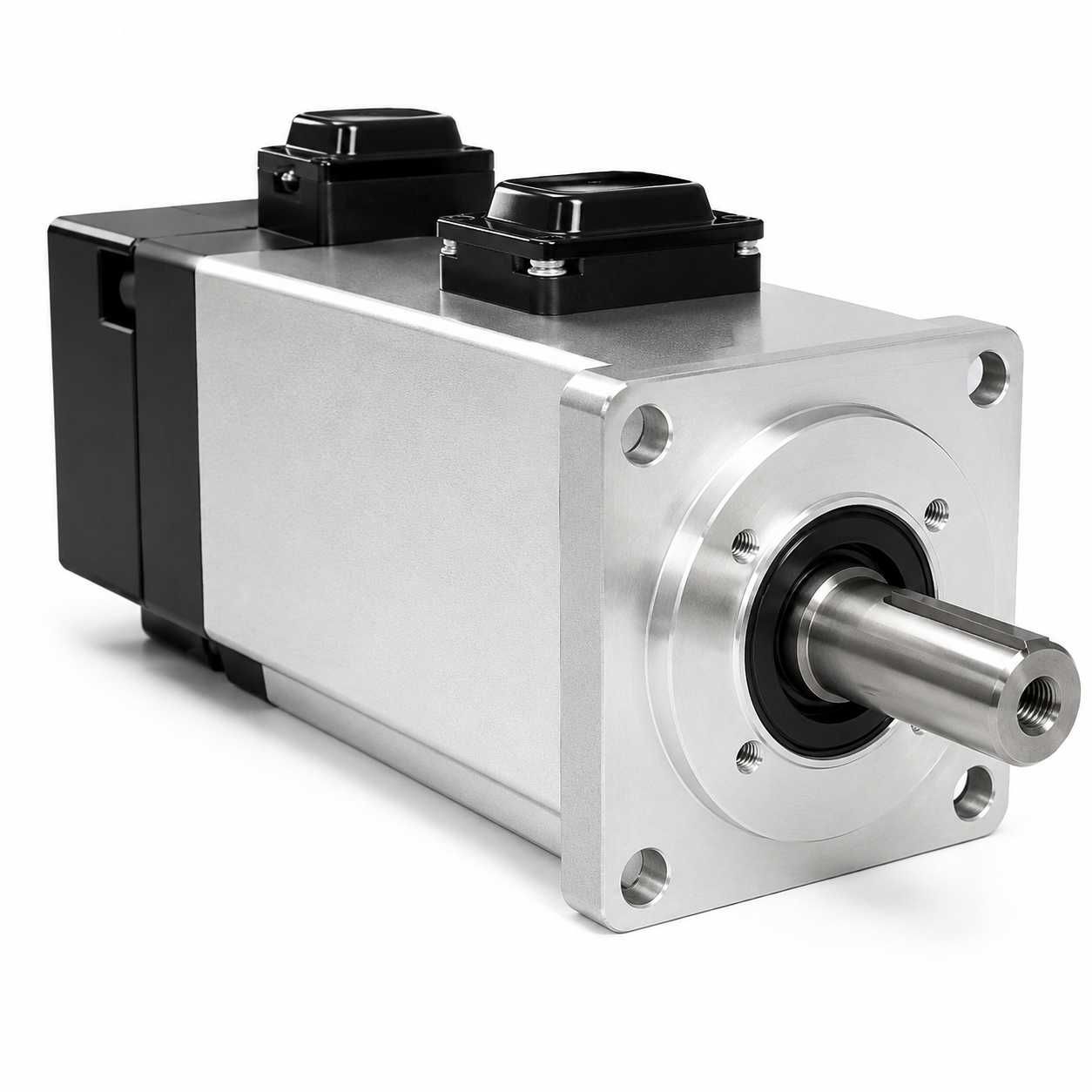

ELM1 Series Servo Motor - ELM1H-1000MA80F

High-performance 1000W AC servo motor designed for CNC machines, laser systems, industrial automation, robotics, packaging equipment, and motion control applications. Featuring a high-resolution 23-bit magnetic encoder, compact 80mm frame size, and excellent torque performance, the ELM1H-1000MA80F delivers precise positioning, smooth operation, and reliable long-term performance.

These servo motors use rare earth neodymium-iron-boron permanent magnet rotors, provide features of high torque density, high peak torques, low noise, low temperature rising, lower current consumption. The motors power range from 50W to 1000W, frame size range from 40mm to 80mm.

Technical Specifications

Model	ELM1H-1000MA80F
Frame Size (mm)	80
Rated Voltage (Vac)	220
Rated Power (W)	1000
Rated Torque (N.m)	3.18
Peak Torque (N.m)	9.54
Rated Speed (rpm)	3000
Peak Speed (rpm)	6000
Rated Current (Amp)	5.7
Peak Current (Amp)	21
Torque Constant (N.m/Amp)	0.56
Back EMF Constant (V/krpm)	38.3
Resistance (Ω)	1.08
Inductance (mH)	5.6
Inertia (kg*m2*10-4)	2.0
Poles	10
Encoder Type	23bit magnetic
IP Rating	IP67
Weight (Kg)	2.8

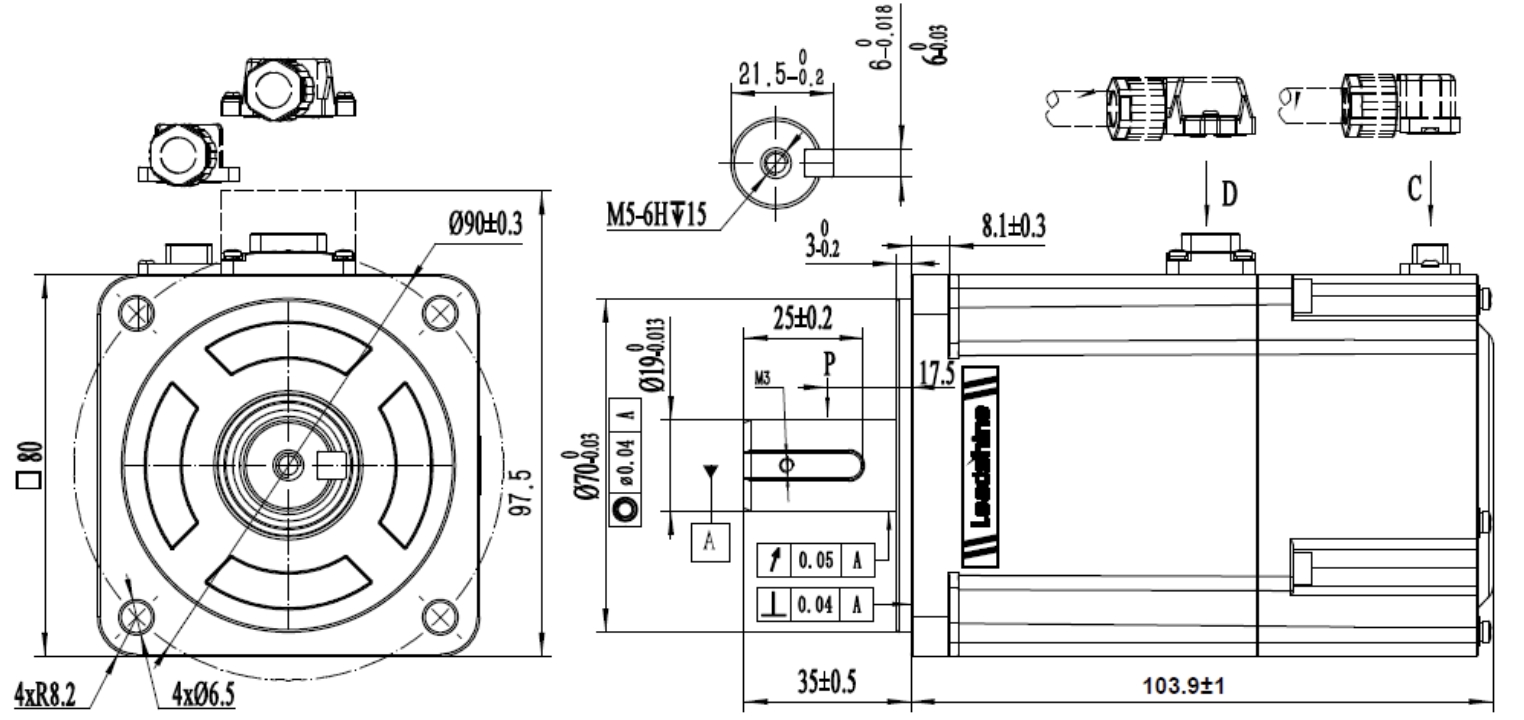

Mechanical

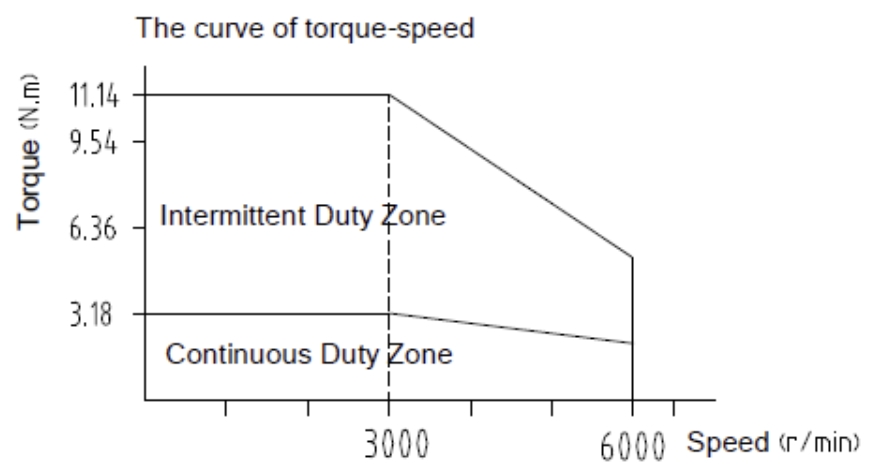

Speed-Torque Curve

Data Sheet - Click Here

3D File in Step Format - Click Here

Recommended Servo Drives

The ELM1H-1000MA80F is a high-performance 1kW AC servo motor designed for demanding motion control applications. To achieve optimal performance, precision, and reliability, it should be paired with a compatible 1000W Leadshine servo drive.

Recommended Servo Drive

EL7-RS1000P + ELM1H-1000MA80F

This powerful servo combination is ideal for:

• Heavy-Duty CNC Routers
• CNC Milling Machines
• Laser Cutting Machines
• Packaging Equipment
• Material Handling Systems
• Conveyor Automation
• Industrial Robotics
• Woodworking Machinery
• High-Inertia Motion Applications

EtherCAT Motion Control Solution

EL7-EC1000N + ELM1H-1000MA80F

Recommended for:

• PLC-Based Automation Systems
• Multi-Axis Motion Control
• Robotics & Cobots
• Automated Production Lines
• Synchronized Motion Applications
• Industry 4.0 Systems

Note: The ELM1H-1000MA80F is a 1kW servo motor and should be paired with a matching 1kW servo drive for optimal torque output, dynamic response, and positioning accuracy.

The EL7-RS1000P is the most popular choice for CNC and industrial automation applications due to its easy integration, Pulse/Direction control, and Modbus RTU communication.
