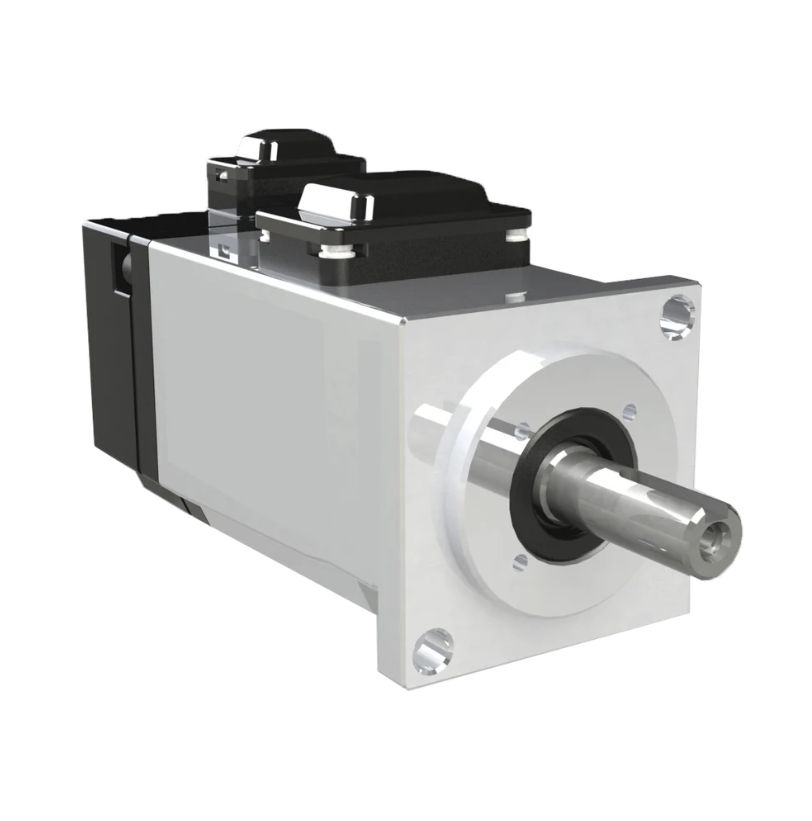

ELM1 Series Servo Motor - ELM1H-0400MA60F

High-performance 400W AC servo motor designed for CNC machines, laser systems, industrial automation, robotics, packaging equipment, and motion control applications. Featuring a high-resolution 23-bit magnetic encoder, compact 60mm frame size, and excellent torque performance, the ELM1H-0400MA60F delivers precise positioning, smooth operation, and reliable long-term performance.

These servo motors use rare earth neodymium-iron-boron permanent magnet rotors, provide features of high torque density, high peak torques, low noise, low temperature rising, lower current consumption. The motors power range from 50W to 1000W, frame size range from 40mm to 80mm.

Technical Specifications

Model	ELM1H-0400MA60F
Frame Size (mm)	60
Rated Voltage (Vac)	220
Rated Power (W)	400
Rated Torque (N.m)	1.27
Peak Torque (N.m)	3.81
Rated Speed (rpm)	3000
Peak Speed (rpm)	6000
Rated Current (Amp)	2.1
Peak Current (Amp)	7.6
Torque Constant (N.m/Amp)	0.645
Back EMF Constant (V/krpm)	39
Resistance (Ω)	5.7
Inductance (mH)	12
Inertia (kg*m2*10-4)	0.56
Poles	10
Encoder Type	23bit magnetic
IP Rating	IP67
Weight (Kg)	1.3

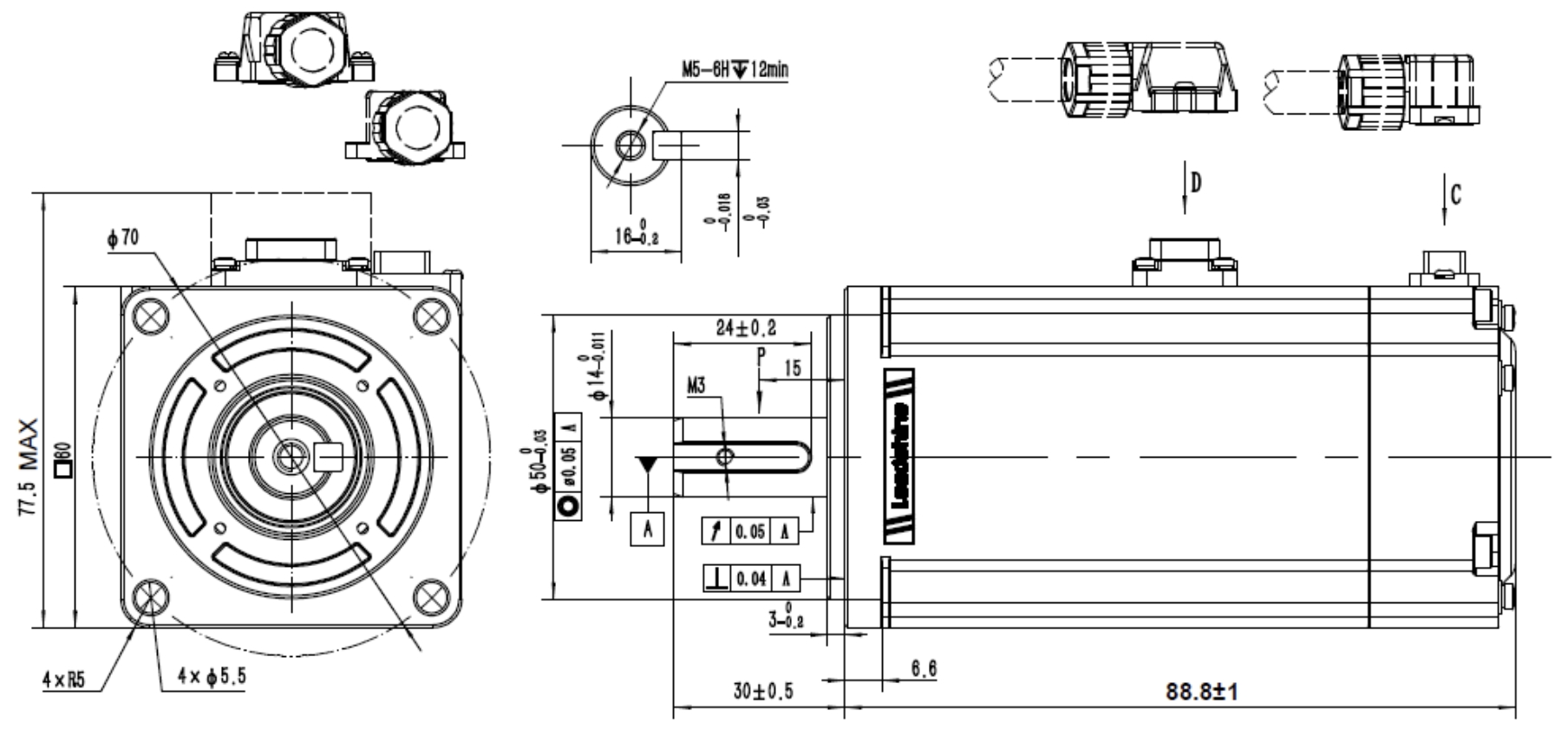

Mechanical

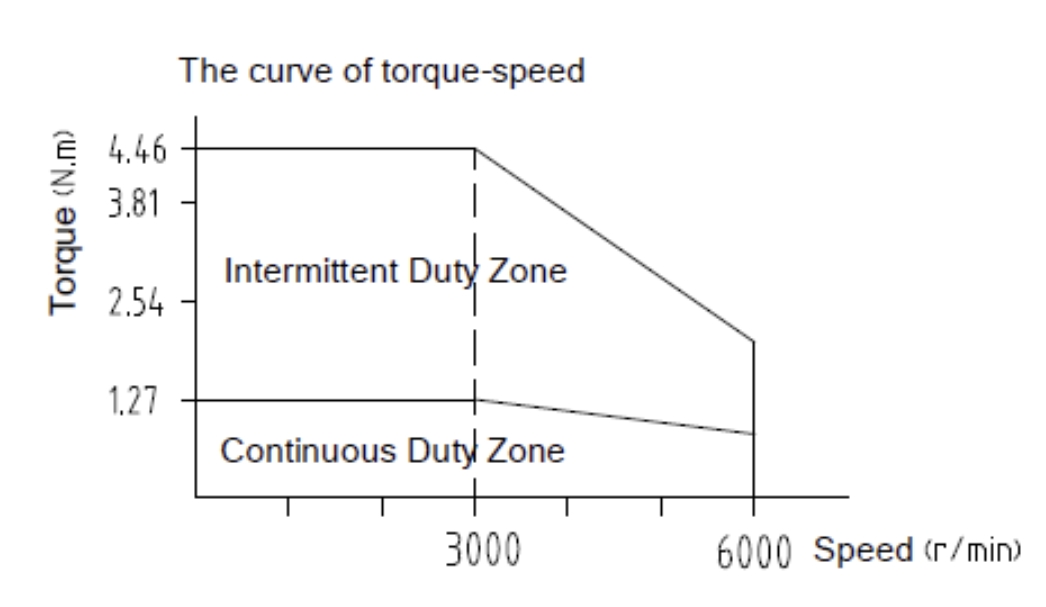

Speed-Torque Curve

Data Sheet - Click Here

3D File in Step Format - Click Here

Compatible Servo Drives

The ELM1H-0400MA60F servo motor is designed to operate with Leadshine EL7 Series servo drives, delivering high-precision motion control, smooth operation, and reliable industrial performance. For optimal results, use a servo drive with a matching power rating.

Recommended Servo Drive

EL7-RS400P + ELM1H-0400MA60F

A powerful and cost-effective servo solution for:

• CNC Routers
• Laser Cutting & Engraving Machines
• Packaging Equipment
• Pick & Place Systems
• Robotics
• Industrial Automation
