Leaf Spring T Nut for 30 Series Aluminium Extrusions
SKU 01471
₹280.00
M4 to M8
was ₹300.00 Save 7%
For 4545, 4590 T Slots
Choose Thread Size
Choose Pack
In stock
1
Save this product for later
Leaf Spring T Nut for 30 Series Aluminium Extrusions
Product Details
Brand: 3DPrintronics
Dispatch Time: 2 to 3 working days
Courier Used: Bluedart/Delhivery/DTDC
GST: 18% on checkout
Delivery Time: 3 to 4 working days after dispatch
Leaf Spring T Nut for 30 Series Aluminium Extrusions
- Compatible With : T Slot Aluminium Extrusion 3030, Misumi T Slot Aluminium Extrusion 3060. Compatible with 3030 T slot extrusions with 8mm groove width.
- Thread Sizes Available : M4, M5, M6, M8
- Main Body Material : Steel (S10C Equivalent)
- Main Body Surface Treatment : Nickel Coated
- Clip/Leaf Material : SUS304
- Leaf spring prevents the nut slipping off when inserted into the vertical direction
| Thread Size | Tightening torque (N/m) |
| M4 | 4.1 |
| M5 | 6.6 |
| M6 | 11 |
| M8 | 25.8 |

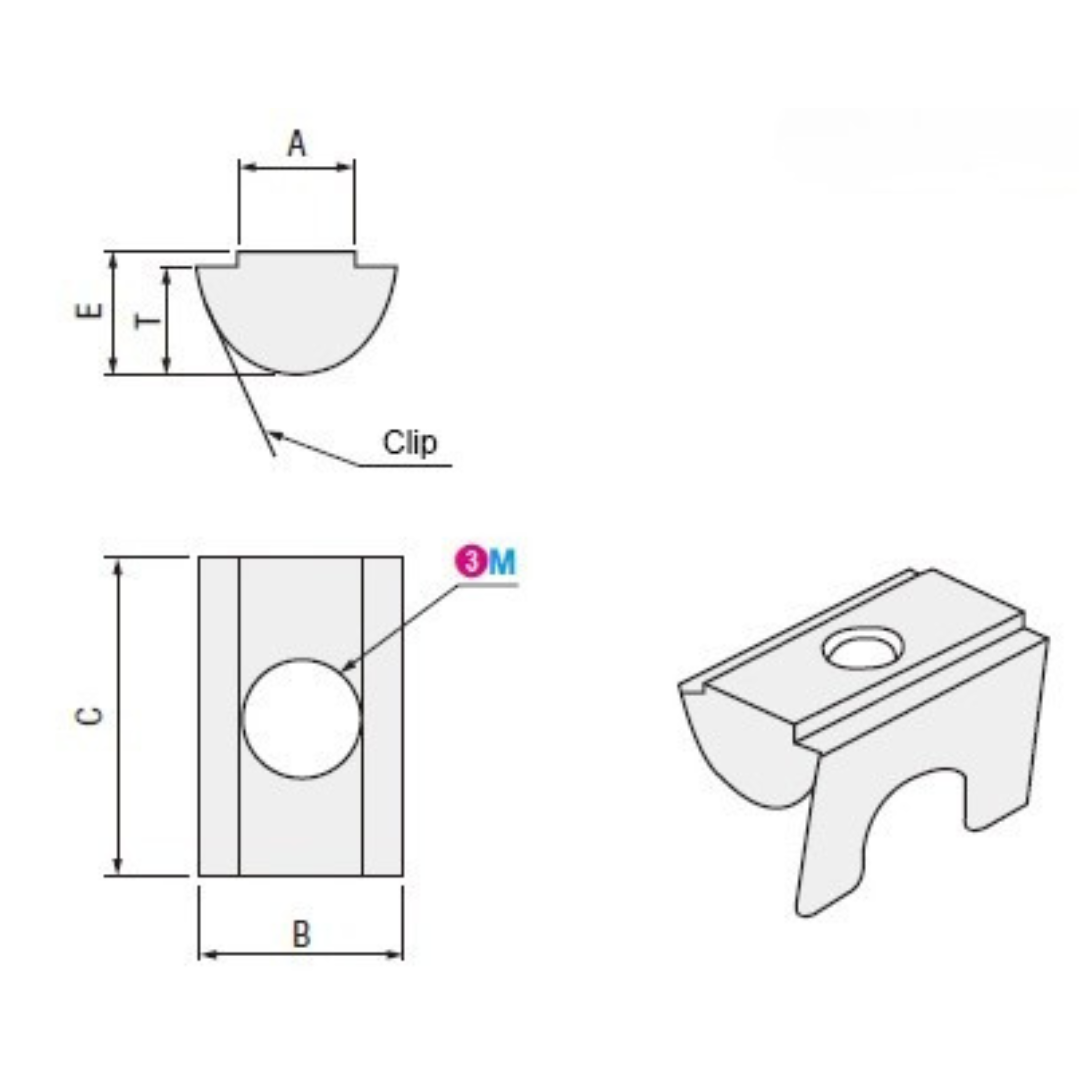

Dimensions
M (thread size) = 4, 5, 6, 8
A : 8, B : 12.5, C : 20, E : 6.8, T : 6
Unit : mm
3D File Download
Click here to download 3d file in stp format (Size M4)
