MISUMI T Slot Aluminium Extrusion 4040 (8mm)

SKU TS44-8MM
₹1,060.00
Free Shipping
From MISUMI
Length
Please choose
M5 Tap Holes
Please choose
Counter Bore Holes
Please choose
Cut Details
Enter Here

Customise Your Extrusions

Click to Order →
In stock
1
Save this product for later
Share this product with your friends
MISUMI T Slot Aluminium Extrusion 4040 (8mm)
Product Details
Brand: MISUMI
Dispatch Time: 1 to 2 working days
Delivery Time: 4 to 5 working days
Courier Used: DELHIVERY Courier - By Road
holes-per-side: 1
type: T Slot
series: 40
color: Silver

Misumi 4040 T Slot Aluminum Extrusion Profile

Free and Precise Custom Cutting | Secure Packaging | Free Next Day Shipping | Tapping & Counter Hole Boring Service | Made & Supported in India

Product Details

Dimension

40 mm x 40 mm

Type, Series

T Slot , 40 Series

Max Continuous Length Avbl

3000 mm

Material Grade

6063 T5 Aluminium

Finish

Silver Anodised

End Tap Size

M8 thread up to 15mm (₹30/Tap)

Counter Bore Hole Size

ID 5mm, OD 10mm – Centred on the slot (₹70/Hole)

If you want only access hole instead of CB Hole, you can mention in order comments.

Drawing (even a hand sketch will work) needed for this service

Cutting Tolerance

+- 0.2 mm

No. of Slots

4 (one on each side)

Slot Width

8 mm

Weight/meter

1.466kg

The 3DPrintronics Advantage - Services Available

  • Free Custom Cutting, Free Shipping, Secure Packaging
  • Counter bore hole for Socket head/Button head screw - Please share drawing for making counter bore holes
  • 45 degree cuts - Rs. 120 per cut.
  • End Tapping - M8 tapping up to 15mm depth.


Dimensions

Accessories for this profile

Accessory Type-1 Type-2 Type-3 Type-4
T-NUT Drop in Pre Insertion Spring (Ball) Leaf Spring
Brackets Corner Bracket Extruded Bracket Reinforcement bracket Turning Bracket Set
End Cap PVC Endcap 3D Printed Endcap
Slot Cover PVC Slot Cover

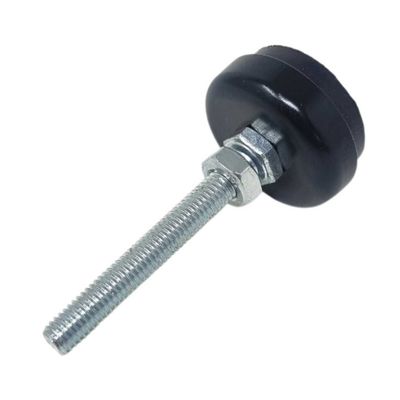

Levelling Mount Click here
Hinges Movable Hinge Set



Advantages of Using Our Profiles

  • Straightness - These T slot profile are as straight as it can get. Bent or twisted profiles is a clear no go for the frame which will make the entire frame skewed. These profiles have minimum deviation.
  • Precise cut lengths - We offer exact cut lengths as per your design. We use high end industrial cutting machines for cutting these profiles instead of using a hand grinder, chopsaw or a hacksaw. CUTTING SERVICE IS FREE.
  • 90 degree cuts - This is the most important aspect when working with aluminium profiles. If the profiles are not cut at exactly 90 degree one can never get a perfect joint between two profiles and this will make the entire frame skewed. We offer perfect 90 degree cuts using our industrial aluminium profile cutting machines.
  • Clean cuts - Our profile ends have extremely clean cuts without any burrs or melted aluminium sticking on the face. Clean cuts allow for a better join between the profiles.
  • Load Capacity - These profiles offer much better load capacity as compared to other non standard profiles. These profiles will be able to handle the stress forces generated during high speed movement of machines like 3d printers, CNC, laser etc.
  • Clear Anodized - All these profiles are clear anodized with uniform finish. Our profiles have smooth finish, they don't have any scratches, dents or marks like cheap aluminium profiles which are available in the market.
  • Secure packaging - All our profiles are packed with high quality corrugated industrial packing material. They are properly shrink wrapped to avoid any scratches or marks.
  • Free replacement - All your packages are completely secured by us. Any in transit damage is fully and freely replaced by 3dprintronics. We take full responsibility of the your order till it is delivered safely at your place.

Have questions? Contact us on 9990838500, 3dprintech@gmail.com




How to Place Order

  • Click on the order button, you will be taken (in new tab) to our 'Custom Cut and Machined Extrusion Ordering Tool'
  • In the tool, select the type of extrusion you want to order
  • Add details of length, tapping or counter bore holes in the table
  • Proceed to checkout, you will complete the order within the custom tool
  • The custom tool is exclusively for extrusion orders (presently only V Slot). You will have to use the main website for any other products to be ordered.

Shipping and Delivery

  • Free shipping is applicable where all lengths of an order are up to 1000mm. If any length exceeds 1000mm, we will charge shipping even if the cart shows 'Free Shipping'. In that case, we will send you details of applicable shipping and payment link to complete the order.
  • All extrusions are shipped through DELHIVERY ground shipping (they are heavy). Shipping time varies between 6-7 working days from shipping date. We request you to be patient in this regard.
