MISUMI T Slot Aluminium Extrusion 4545 (10mm)
SKU 01493
₹1,605.00
Free Shipping
Select Length
In stock
1
Save this product for later
MISUMI T Slot Aluminium Extrusion 4545 (10mm)
Product Details
Brand: MISUMI
Shipping Free: Yes
Payment Terms: 100% Advance
Dispatch Time: 2 to 3 working days
Delivery Time: 3 to 4 working days
Courier Used: Delhivery/Bluedart
GST(Tax): 18% on checkout

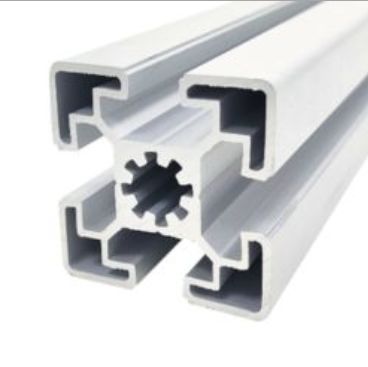

MISUMI T Slot Aluminium Extrusion 4545 (10mm slot width)
Free Custom Cutting | Secure Packaging | Free Shipping | Tapping & Counter Hole Boring | Made & Supported in India
Specifications
| Extrusion Shape | Square Shape |
| Slot Width | 10mm |
| Material | 6063-T5 |
| Surface Treatment | Clear anodized |
| Surface Milled | No |
| Weight per meter | 1.59kg |
| Wall thickness (t) | 1.5mm |
| Number of slotted surfaces | Four-side slots |
| End hole dia | 10.20mm plus minus 0.2mm |
| Maximum continuous length available | 4 meter |
- Precise Custom cutting of all lengths ordered can be done on request. Example - If you order 2 pcs of 1000mm, you can get them precisely cut Free of cost into 4 pcs of 500mm or any lengths you need. Just mention in order comments or mail us after order placement.
- For longer than 1 meter lengths (upto 4 meters), contact us on on 9990838500, 9953505143 or 3dprintech@gmail.com
- These are the best quality T slots from an international brand MISUMI. Such high quality T Slots are suitable for making machines like 3d printers, CNC, laser, plasma Or for making structures like frames, tables, cabinets etc.
The 3DPrintronics Advantage - Services Available
- Free Custom Cutting, Free Shipping, Secure Packaging.
- Counter bore hole for Socket head/Button head screw - Rs. 90 per hole (Please share drawing for making counter bore holes)
- 45 degree cuts - Rs. 120 per cut.

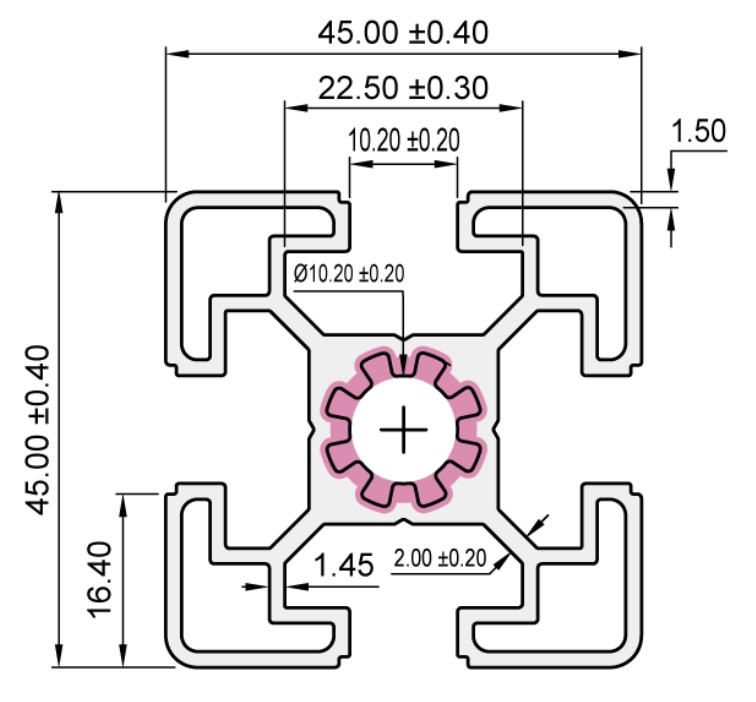

Dimensions
Accessories for this profile
T nuts
1) Drop In T Nut for 45 Series Aluminium Extrusions
2) Spring T Nut for 45 Series Aluminium Extrusions
3) Pre Insertion T Nut for 45 Series Aluminium Extrusions
4) Leaf Spring T Nut for 45 Series Aluminium Extrusions
Corner Bracket
Corner Bracket for 45 Series T Slot

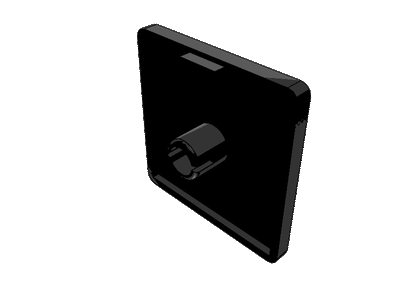

End Cap
Slot Cover
Slot Cover for 45 Series T Slot Aluminium Extrusion (10mm)
