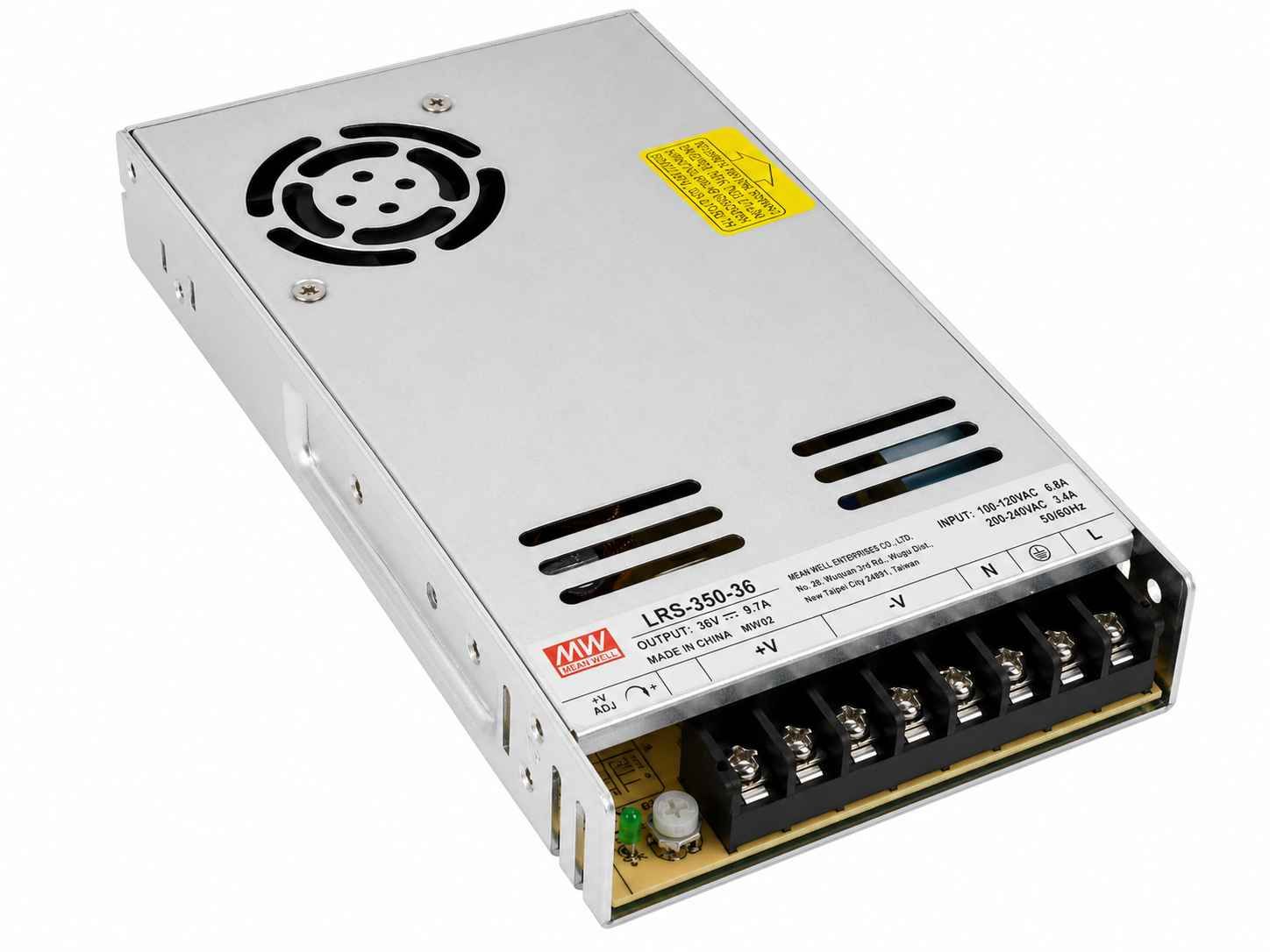

Original Meanwell PSU LRS-350-36

The Mean Well LRS-350-36 is a high-performance 350W enclosed switching power supply designed for industrial automation, CNC machines, 3D printers, robotics, LED systems, and motion control applications.

Delivering a stable 36V DC output at up to 9.7A, the LRS-350-36 offers excellent reliability, compact size, and high efficiency in a rugged metal enclosure.

Built by MEAN WELL, the LRS series is trusted worldwide for industrial and automation applications requiring dependable power delivery and long service life.

---

Key Features

• Rated Output Power: 350W
• Output Voltage: 36V DC
• Output Current: 9.7A
• Universal AC Input: 85~264VAC
• High Efficiency up to 89%
• Compact low-profile design (30mm height)
• Built-in cooling fan with temperature control
• Short Circuit Protection
• Overload Protection
• Over Voltage Protection
• Over Temperature Protection
• Industrial-grade metal enclosure
• Long operational lifespan

• Suitable for continuous 24/7 operation

Technical Specifications

Parameter	Value
Model	LRS-350-36
Output Voltage	36V DC
Output Current	9.7A
Output Power	349.2W
Voltage Adjustment Range	32.4 ~ 39.6V
Input Voltage	85 ~ 264VAC / 120 ~ 373VDC
Frequency Range	47 ~ 63Hz
Efficiency	Up to 89%
Cooling Method	Temperature-Controlled Fan
Operating Temperature	-25°C to +70°C
Safety Standards	UL, CE, CB, EAC
Dimensions	215 × 115 × 30 mm
Weight	Approx. 760g

Ideal Applications

CNC Machines

Provides reliable power for stepper motor and servo motor systems used in CNC routers, plasma cutters, laser machines, and automation equipment.

Industrial Automation

Suitable for PLC systems, industrial controllers, sensors, actuators, and control panels.

3D Printers

Excellent choice for large-format 3D printers requiring stable 48V power for motion systems and heated components.

Robotics

Delivers clean and stable DC power for robotic arms, AGVs, and automated machinery.

LED & Industrial Lighting

Can be used in high-power LED installations and industrial lighting systems.

Recommended Stepper Drivers which can be used with this PSU

The LRS-350-36 is commonly used with:

• Leadshine DM556E
• Leadshine DM860H
• Leadshine EM542S
• Leadshine HBS57
• Leadshine HBS86H

Recommended Stepper Motors which can be used with this PSU

The LRS-350-36 is commonly paired with:

• NEMA 23 Stepper Motors
• NEMA 34 Stepper Motors

What Will You Receive?

• 1 × Mean Well LRS-350-36 Switching Power Supply

Important Note

This is an industrial power supply intended for installation inside suitable electrical enclosures or machinery. Wiring and installation should be performed by qualified personnel following applicable electrical safety standards.
