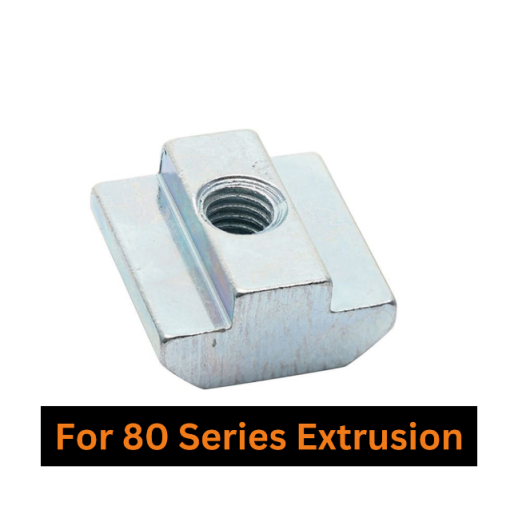

Pre Insertion T Nut for 80 Series Aluminium Extrusions

Pre Insertion T Nut for 80 Series Aluminium Extrusion

• Compatible With - MISUMI T Slot Aluminium Extrusion 8080, MISUMI T Slot Aluminium Extrusion 4545 . Other generic T Slot Aluminium Extrusions with groove width 10mm.
• Thread Sizes Available - M4, M5, M6, M8, M10
• Material : Steel (S10C equivalent)
• Surface Treatment : Zinc Plating

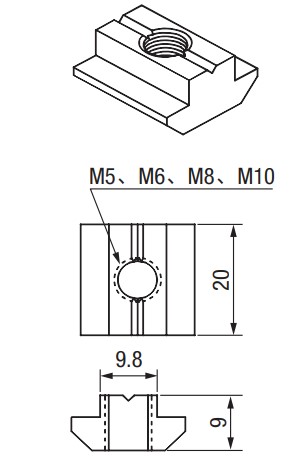

Dimensions

How to use best

• These pre-assembly insertion T nuts easily slide into the profiles and do not turn while being tightened. They can be used as long as slot end for insertion is open.

3D File Download

Click on the image below to download the 3d file.

Images are only for visual representation, final product may or may not differ in appearance.

Please check T nut dimensions to avoid any confusion.

We are not responsible for any fitment issues in profiles which are not bought from us.
