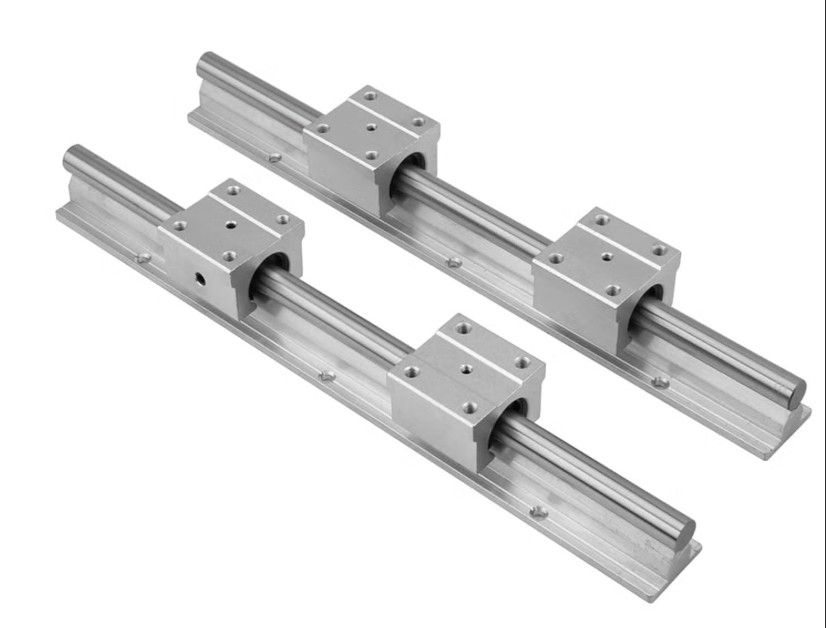

SBR 16 Linear Guide Rail Set - 2mtr x 2pcs

Dispatch Time : 2 to 3 working days from the date of payment

Delivery Time : 5 to 6 working days from the date of dispatch

It is always our endeavor to ship on time, but some times due to unforeseeable circumstances, shipping might get delayed. Under such situations we will keep you updated and we request you to please bear with us.

SBR 16 Linear Guide Rail Set

What will you get

1) SBR 16 Linear Rail - 2 pcs - Length of each piece will be 2 meter/2000mm/78inchs

2) SBR16UU Guide Blocks - 4 pcs - 2 pcs per length

Overview:

The SBR16 Linear Guide Rail is a high-performance & low cost solution for precision motion systems, providing smooth and accurate linear motion in a variety of applications.

Built from durable materials and designed to handle heavy loads. The SBR16 Linear Guide Rail is engineered for professionals who need precision, durability, and long-term reliability.

Whether you're upgrading your machinery or building a new system, the SBR16 rail ensures smooth and efficient operation, reducing maintenance and downtime.

Maximum continuous length available - 4 meter.

Please contact us in case of custom length requirement or bulk purchase for better shipping options.

Applications:

• CNC Machines
• 3D Printers
• Robotics
• Automation Equipment
• Industrial Machinery

Key Features:

• Material: Hardened steel rail for enhanced durability and longevity.
• Rail Diameter: 16mm, ensuring stability and precision.
• Smooth Operation: Polished surface and low friction for fluid, noise-free movement.
• Load Capacity: Suitable for both light and heavy-duty applications, ensuring reliability under demanding conditions.
• Corrosion Resistant: Coated for protection against rust and wear, extending the lifespan of the rail. Excluding the ends for shafts.
• Mounting Holes: Pre-drilled mounting holes for easy installation

Technical Specifications

1) Length Available : 250, 500, 1000, 1500, 2000, 2500, 3000, 3500, 4000mm

2) Diameter of Shaft : 16mm

3) Shaft Material : Hardened Steel

4) Surface Finish of Shaft : Polished

5) Mounting holes on Shaft support : M4

6) Mounting holes on Block : M5

7) Weight Per Meter : ~2.55 kg

Dimensional Drawing

Download 3D File

Click here to download 3d file in step format for SBR 16 linear guide rail.
