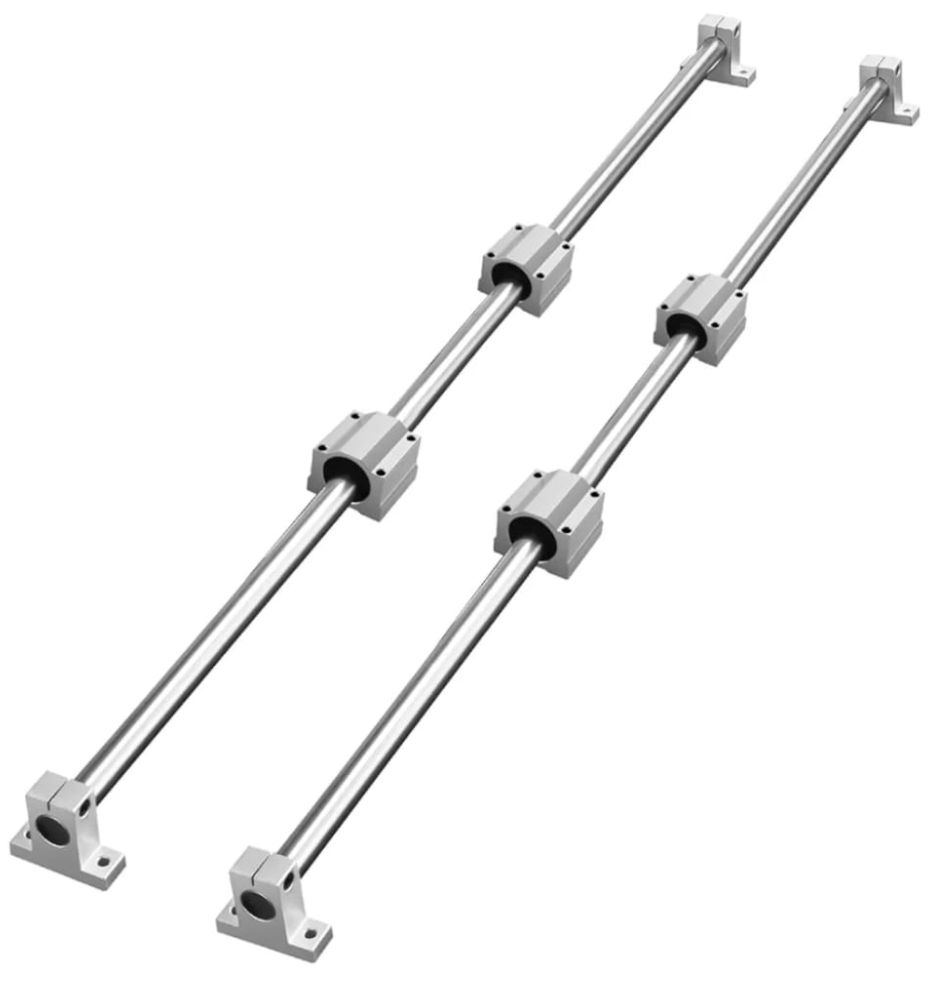

20mm Linear Shaft Kit – 20mm Dia × 1200mm Length (Complete Set)

Dispatch Time : 3 to 4 working days from the date of payment

Delivery Time : 4 to 5 working days from the date of dispatch

Courier Used : Bluedart or Safexpress - By Road

Product Overview

20mm linear shaft kit designed for precision motion systems such as CNC machines, 3D printers, automation equipment, laser engravers, and industrial DIY projects. This set includes 20mm hardened shafts with matching SC20UU linear bearing blocks for smooth, stable, and accurate linear movement and End Shaft Supports for 20mm shaft

Ideal for medium to heavy load applications requiring rigidity over long travel lengths.

Key Specifications

• Shaft Diameter: 20mm
• Shaft Length: 1200mm (1.2 Meter)
• Shaft Material: Carbon steel with hard chrome plating
• Surface Treatment: Precision ground & polished
• Guide Block Type: SC20UU
• Bearing Type: Linear ball bearing
• Mounting: Aluminum End shaft support for 20mm shafts (pre-drilled)

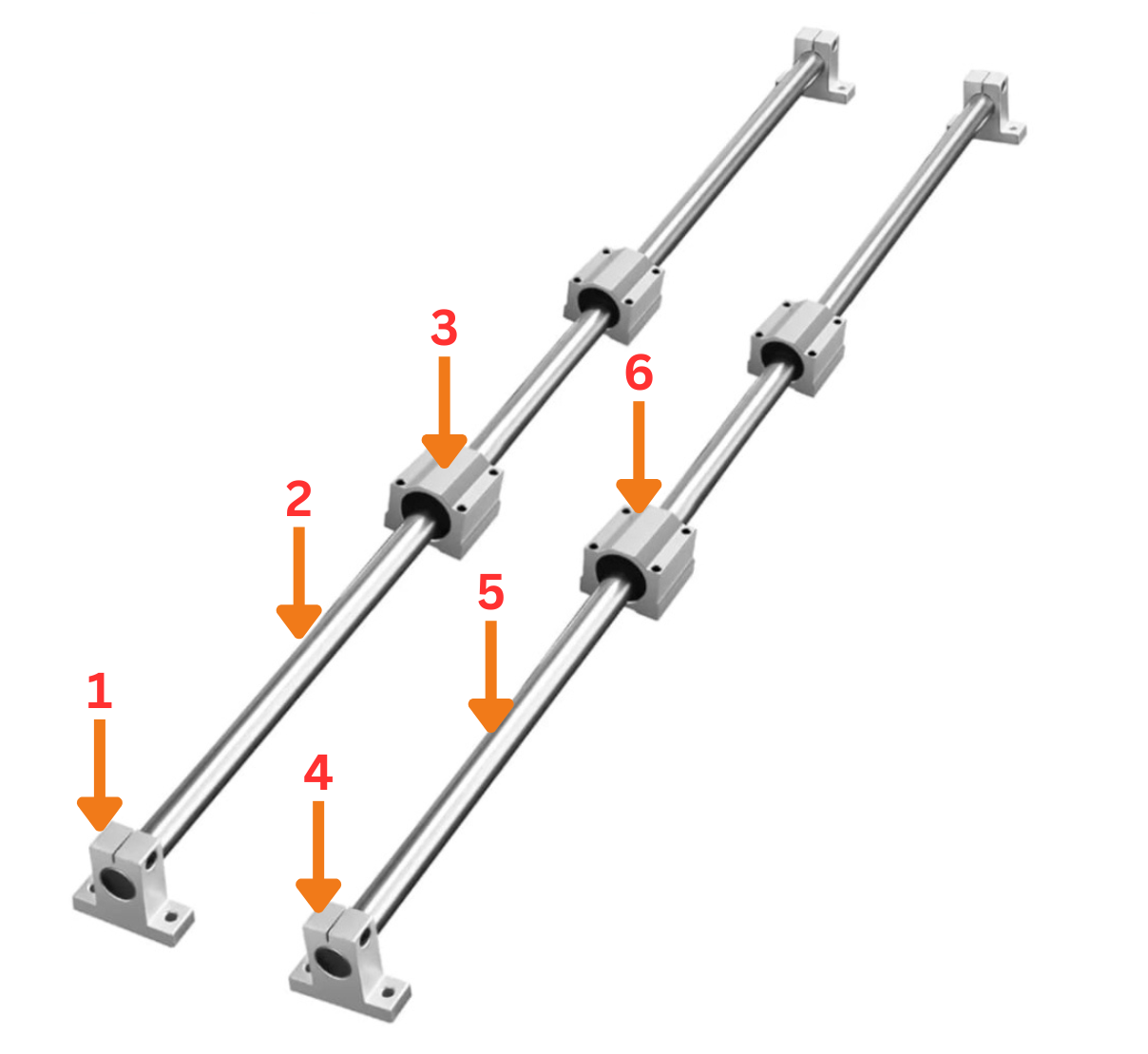

Package Includes

• 2 × Smooth Shafts (Ø20mm × 1200mm length) - Marked with 2 & 5
• 4 × SC20UU Linear Guide Blocks (2 per shaft) - Marked with 3 (2pcs) and 6 (2pcs) Total 4 pcs
• 4 × End Shaft Supports (2 per shaft) - Marked with 1 (2pcs) and 4 (2pcs) Total 4 pcs

Parts Marked as 1, 2 and 3 forms = First set

Parts Marked as 4, 5 and 6 forms = Second Set

Customers will get First & Second Set in this product

Product Features

✔ Smooth and low-friction linear motion
✔ Excellent load-bearing capability
✔ Easy installation with pre-drilled mounting holes in End Shaft supports
✔ Corrosion-resistant hard chrome plated shaft (ends need to be painted)
✔ Replaceable SC20UU bearing blocks

Applications

• CNC Routers
• Large Format 3D Printers
• Laser Cutting Machines
• Pick & Place Systems
• Automation & Robotics
• Woodworking Machinery
• DIY Motion Systems

Installation Notes

• Ensure rails are mounted on a flat, rigid surface.
• Align both shafts parallel for smooth carriage movement.
• Lubricate bearing blocks before first use for optimal life.
• Recommended to use a dial gauge for precision alignment in CNC applications.

Recommended Usage:

• Horizontal light-duty motion systems
• Low cutting force CNC
• 3D printer gantry (lightweight extruder setups)
• Automation sliders

Not Recommended For:

• Heavy vertical loads
• High cutting force CNC routing
• Precision applications requiring minimal flex

Approximate Load Guidance (Per Block)

• Dynamic Load Rating: ~980 – 1100 N
• Static Load Rating: ~1500 N
• Practical Safe Working Load (per shaft setup):
  300–600 N depending on span and load position
• Load capacity significantly reduces when load is applied at the center of the 1200mm span
