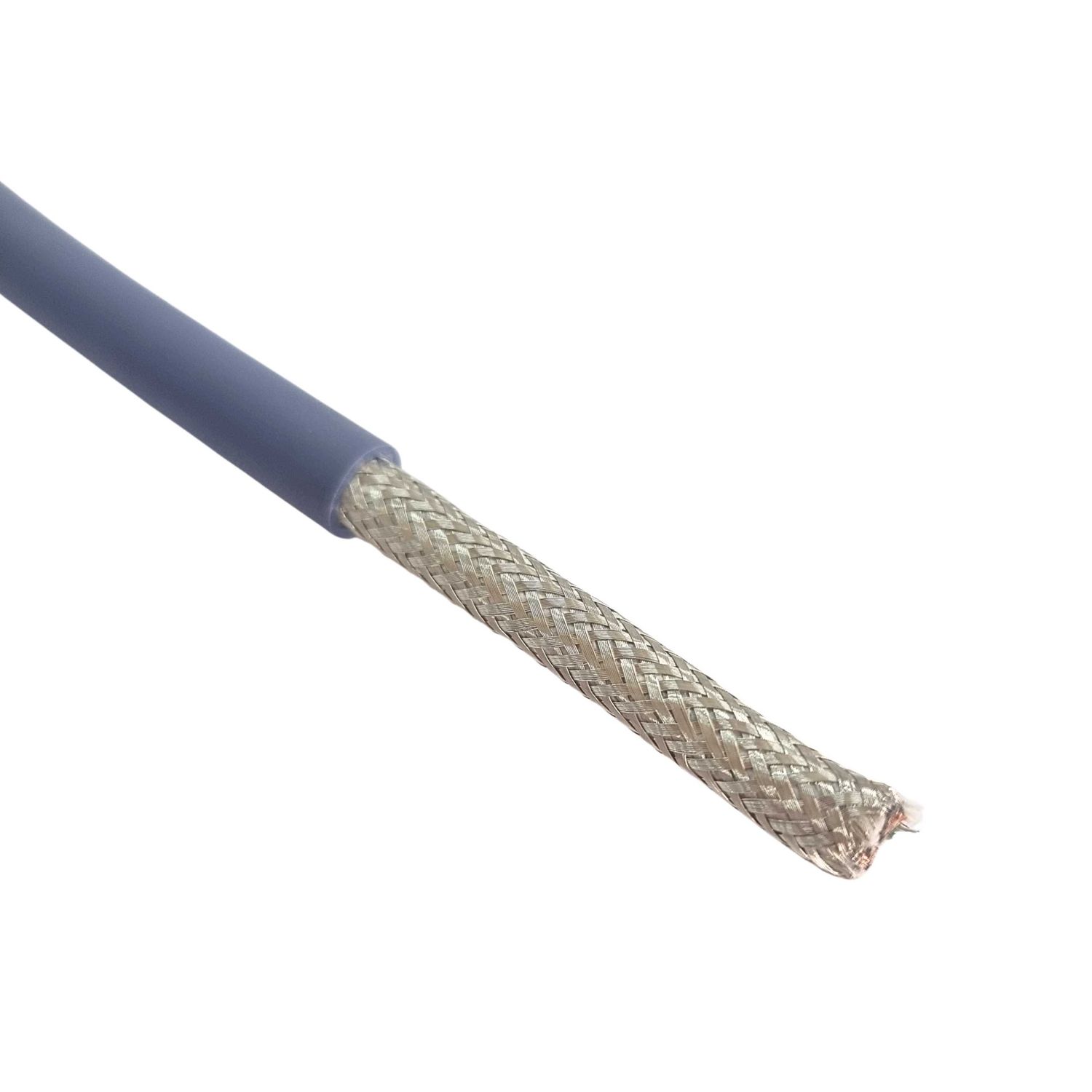

Shielded Flexible Robot Cable, 18 AWG, 4 Core
SKU 01700
₹1,349.00
Free Shipping
In stock
1
Save this product for later
Shielded Flexible Robot Cable, 18 AWG, 4 Core
Product Details
Payment Terms: 100% Advance
Dispatch Time: 10 to 15 days from the date of order and payment
Delivery Time: 3 to 4 working days from the date of dispatch
Courier Used: Delhivery/Bluedart/DTDC
GST(Tax): 18% on checkout
Dispatch Time : 10 to 15 working days from the date of order & payment
Delivery Time : 3 to 4 working days from the date of dispatch
It is always our endeavor to ship on time, but some times due to unforeseeable circumstances, shipping might get delayed. Under such situations we will keep you updated and we request you to please bear with us.
Price given on website is for 1 meter cable length
Shielded Flexible Robot Cable, 18 AWG, 4 Core
Product Overview
This is a high-flexibility shielded robot cable designed for continuous motion applications such as industrial automation, CNC machines, robotic systems, cable carriers, and moving machinery. It is UL and CE compliant and incorporates a braided shield for improved EMI/RFI protection.
Key Features
- High-flex cable designed for dynamic motion applications
- Suitable for robots, drag chains, and moving equipment
- Braided shield for protection against electrical noise
- UL and CE compliant construction
- Oil-resistant and industrial-grade jacket
- Ideal for servo motors, stepper motors, sensors, and automation equipment
- Flexible design minimizes cable fatigue during repeated bending cycles
| Parameter | Specification |
|---|---|
| Cable Type | Shielded Flexible Robot Cable |
| Voltage Rating | 300 VAC |
| AWG Size | 18 AWG |
| Conductor Cross Section | 0.75 mm² |
| Number of Cores | 4 Core |
| Shield | Yes |
| Outer Diameter | Approx. 8.7 mm |
| Compliance | UL / CE |
| Length | As per user requirement |
| Application | Robotics, CNC Machines, Automation Equipment, Cable Carriers |
Typical Applications
- Servo motor power wiring
- Stepper motor wiring
- Robotic arm cable routing
- Cable chain installations
- Industrial automation systems
- Packaging machines
- CNC routers and machining centers
- Automated manufacturing equipment
Why Choose This Cable?
✔ Designed specifically for continuous flexing applications
✔ Excellent performance inside drag chains and cable carriers
✔ Shielded construction reduces EMI and electrical noise
✔ Ideal for CNC, robotics, and automation equipment
✔ Reliable operation in dynamic industrial environments
What Will You Receive?
When you order 1 quantity, you will receive:
- 1 Meter of High-Flex Shielded Drag Chain Cable
- Cut to the ordered length from a continuous cable reel
Ordering Guide
Quantity Ordered
Cable Length Supplied
1
1 Meter
2
2 Meters
5
5 Meters
10
10 Meters
20
20 Meters
| Quantity Ordered | Cable Length Supplied |
|---|---|
| 1 | 1 Meter |
| 2 | 2 Meters |
| 5 | 5 Meters |
| 10 | 10 Meters |
| 20 | 20 Meters |
Example: If you order a quantity of 5, you will receive one continuous 5-meter length (where possible), not five separate 1-meter pieces.
Important Note
- Cable is sold per meter.
- Multiple quantities are typically supplied as a single continuous length whenever possible.
- Custom-cut cable lengths are non-returnable unless defective or supplied incorrectly.
- Actual supplied length may have a small manufacturing tolerance.
