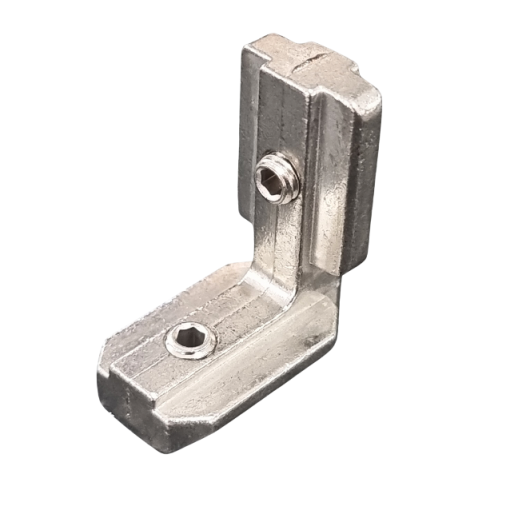

Steel Inner Bracket For 40 Series T Slots

Steel Inner Bracket For 40 Series T Slots

For simple, right angled and concealed connection.

This bracket can be used only with 40 Series T Slot Aluminium extrusions with groove width of 8mm.

Compatible profiles : 4040, 4080

Interference with other parts on the frame can be avoided, assembly is easy and quick, and easy to install without processing the profile body.

It is usually used when the load requirement is not high.

Technical Specifications

1) Body Material : Zinc Alloy

2) Surface Treatment : Nickle Plated

3) Allowable Load : 405 N

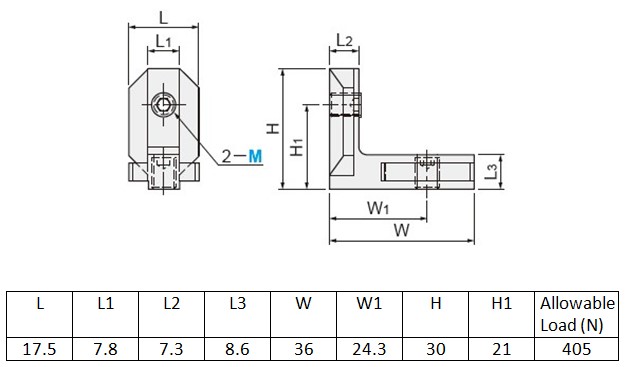

Dimensions

3D File Download

Click on the image below to download the 3d file. File format : stp
