Support Unit Set For Ball Screws (Round Shape)

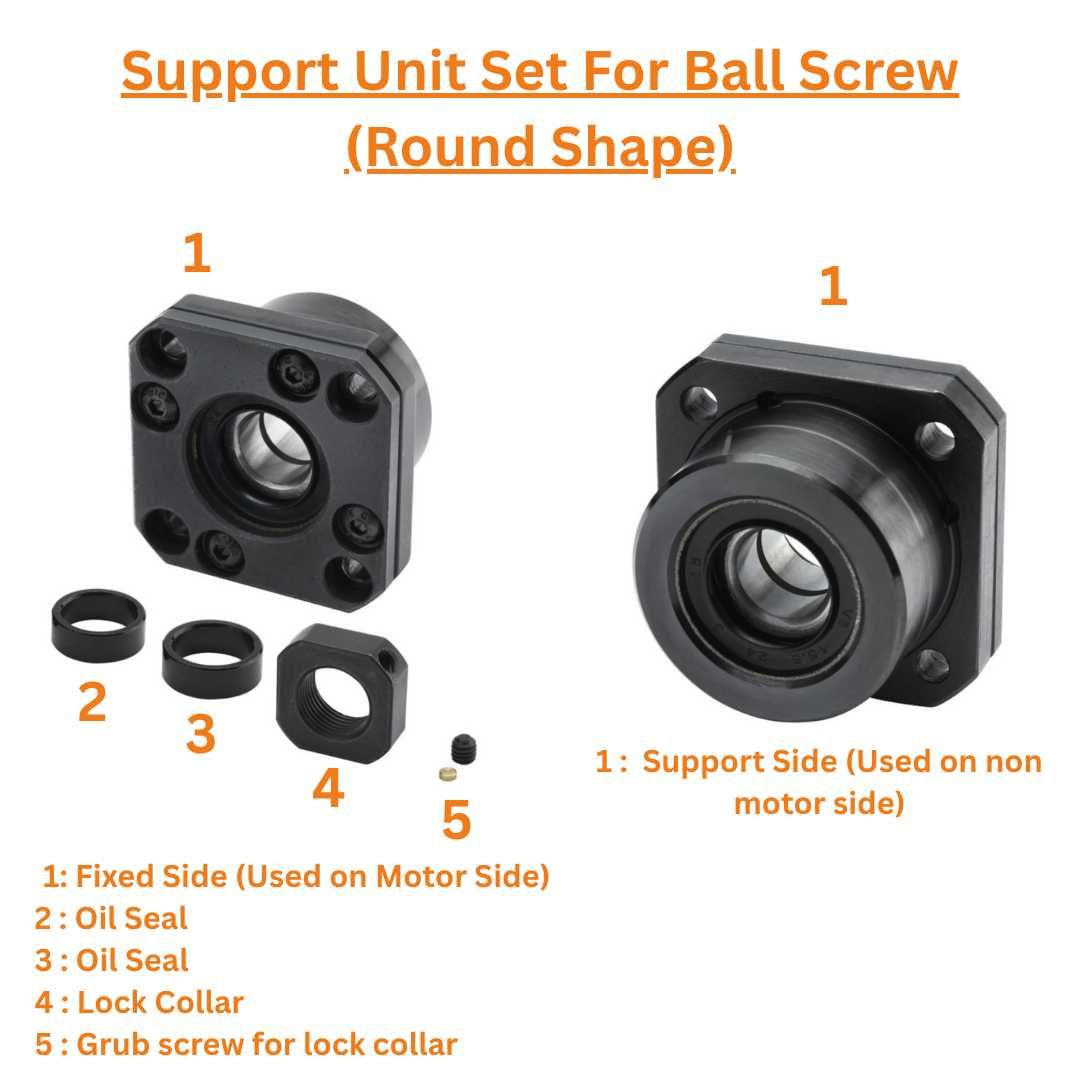

Support unit set for ball screw consists of two parts as mentioned below.

1) Fixed Side (Used on Motor Side) - 01 piece

2) Support Side (Used on Non Motor Side) - 01 piece

Material : S45C Steel

Shape : Round Type

Surface Treatment : Black Oxide Ferroferric oxide protective film

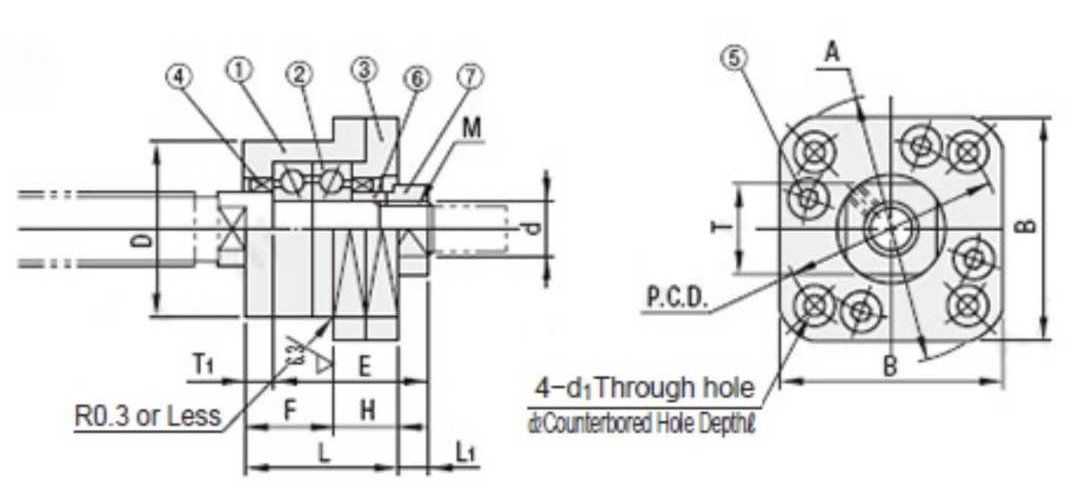

Support unit set is used for mounting the ball screws. See detailed image given below.

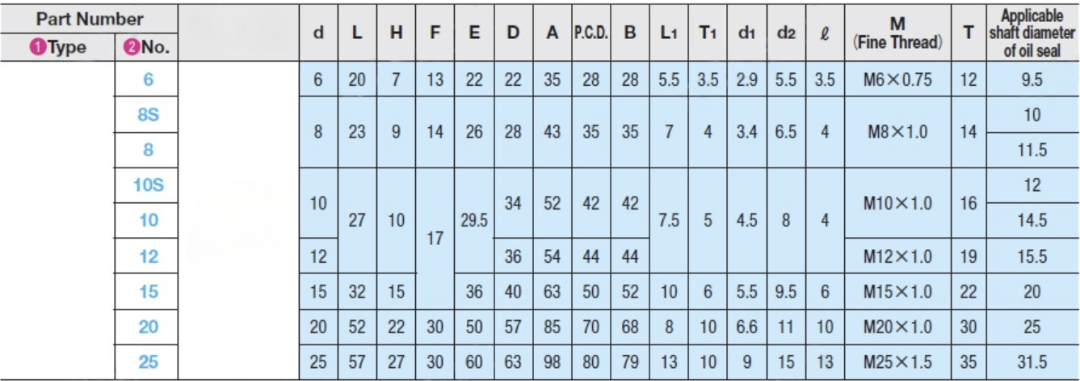

Support Unit Set is available for 8, 10, 12, 16, 20, 25mm & 32mm dia ball screws.

You can select the size of ball screw from the options given on the right hand side for which you want support unit.

Please note these support units will fit only with ball screws which have standard machining in both the ends.
