T Slot Aluminium Extrusion 4545 (10mm)
SKU TS4545S
₹1,606.00
Free Shipping
Length
Please choose
End Tapping
Please choose
Counter Bore Holes
Please choose
Cut Details
Enter Here
In stock
1
Save this product for later
T Slot Aluminium Extrusion 4545 (10mm)
Product Details
Shipping Free: Yes
Payment Terms: 100% Advance
Dispatch Time: 4 to 5 working days from the date of payment
Delivery Time: 5 to 6 Working days from the date of dispatch
Courier Used: Delhivery/Bluedart/DTDC by road
GST(Tax): 18% on checkout
holes-per-side: 1
type: T Slot
series: 45
color: Silver
End Tap Size: M12 upto 15mm Depth
End Tap Price Per Hole: 30
CBH Size: ID 10mm, OD 20mm
CBH Price per Hole: 70
Custom Extrusion Tool: Yes
Extrusion Short Name: T Slot 4545
Dispatch Time : 4 to 5 working days from the date of payment
Delivery Time : 5 to 6 working days from the date of dispatch
It is always our endeavor to ship on time, but some times due to unforeseeable circumstances, shipping might get delayed. Under such situations we will keep you updated and we request you to please bear with us.
T Slot Aluminium Extrusion 4545 (10mm slot width)
Free Custom Cutting | Secure Packaging | Free Shipping | Tapping & Counter Hole Boring | Made & Supported in India
Specifications
| Extrusion Shape | Square Shape |
| Slot Width | 10mm |
| Material | 6063-T5 |
| Surface Treatment | Clear anodized |
| Surface Milled | No |
| Weight per meter | 1.59kg |
| Wall thickness (t) | 1.5mm |
| Number of slotted surfaces | Four-side slots |
| End hole dia | 10.20mm plus minus 0.2mm |
| Maximum continuous length available | 4 meter |
- Precise Custom cutting of all lengths ordered can be done on request. Example - If you order 2 pcs of 1000mm, you can get them precisely cut Free of cost into 4 pcs of 500mm or any lengths you need. Just mention in order comments or mail us after order placement.
- For longer than 1 meter lengths (upto 4 meters), contact us on on 9990838500, 9953505143 or 3dprintech@gmail.com
- These are the best quality T slots from an international brand. Such high quality T Slots are suitable for making machines like 3d printers, CNC, laser, plasma Or for making structures like frames, tables, cabinets etc.
The 3DPrintronics Advantage - Services Available
- Free Custom Cutting, Free Shipping, Secure Packaging.
- Counter bore hole for Socket head/Button head screw - Rs. 90 per hole (Please share drawing for making counter bore holes)
- 45 degree cuts - Rs. 120 per cut.
Dimensions
Accessories for this profile
T nuts
1) Drop In T Nut for 45 Series Aluminium Extrusions
2) Spring T Nut for 45 Series Aluminium Extrusions
3) Pre Insertion T Nut for 45 Series Aluminium Extrusions
4) Leaf Spring T Nut for 45 Series Aluminium Extrusions
Corner Bracket
Corner Bracket for 45 Series T Slot

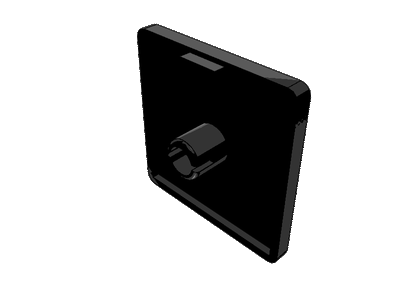

End Cap
Slot Cover
Slot Cover for 45 Series T Slot Aluminium Extrusion (10mm)
